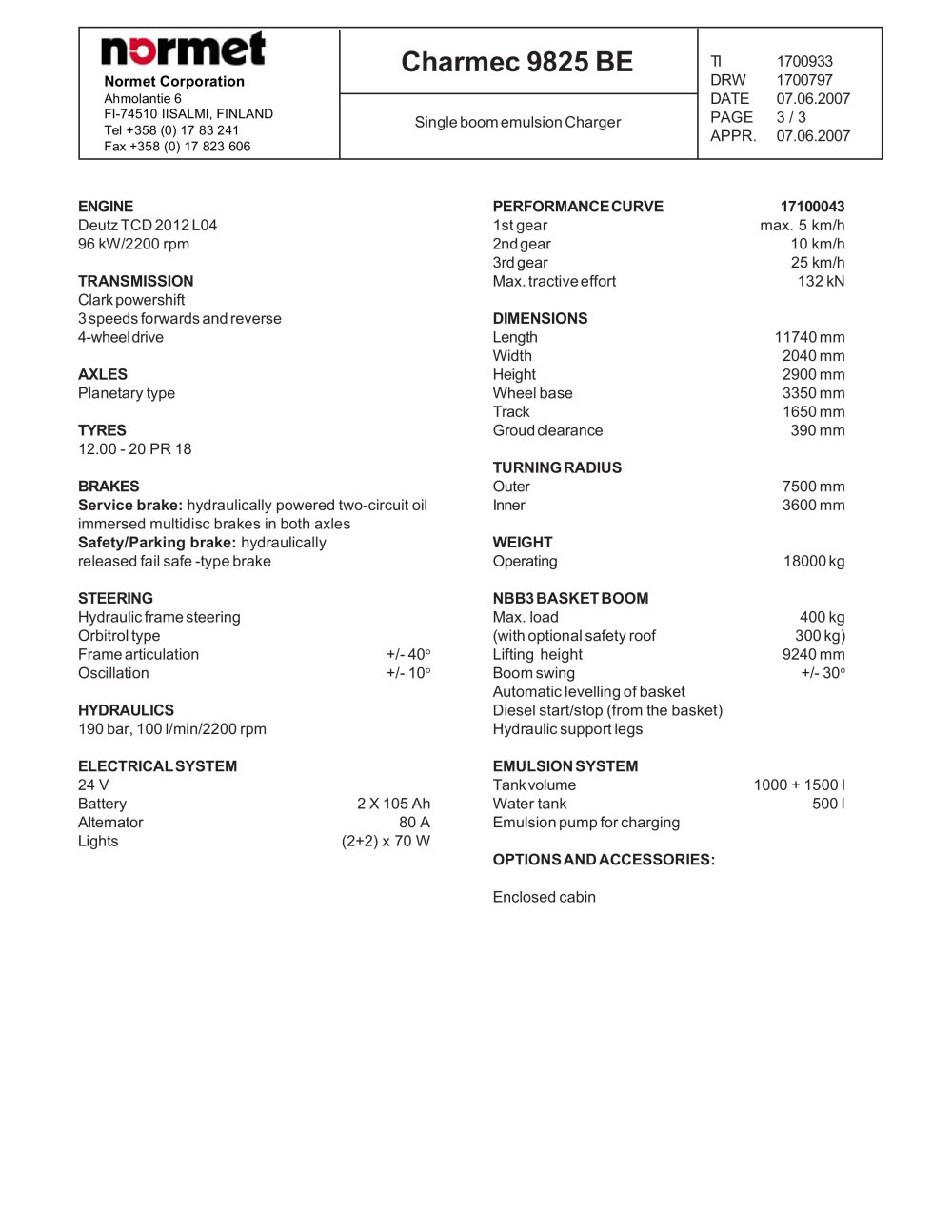

Charmec 9825 BE TI 1700933 DRW 1700797 DATE 07.06.2007 PAGE 3 / 3 APPR. 07.06.2007 Single boom emulsion Charger Normet Corporation Ahmolantie 6 FI-74510 IISALMI, FINLAND Tel +358 (0) 17 83 241 Fax +358 (0) 17 823 606 ENGINE Deutz TCD 2012 L04 96 kW/2200 rpm TRANSMISSION Clark powershift 3 speeds forwards and reverse 4-wheel drive AXLES Planetary type TYRES 12.00 - 20 PR 18 BRAKES Service brake: hydraulically powered two-circuit oil immersed multidisc brakes in both axles Safety/Parking brake: hydraulically released fail safe -type brake STEERING Hydraulic frame steering Orbitrol type Frame articulation +/- 40o Oscillation +/- 10o HYDRAULICS 190 bar, 100 l/min/2200 rpm ELECTRICAL SYSTEM 24 V Battery 2 X 105 Ah Alternator 80 A Lights (2+2) x 70 W PERFORMANCE CURVE 17100043 1st gear max. 5 km/h 2nd gear 10 km/h 3rd gear 25 km/h Max. tractive effort 132 kN DIMENSIONS Length 11740 mm Width 2040 mm Height 2900 mm Wheel base 3350 mm Track 1650 mm Groud clearance 390 mm TURNING RADIUS Outer 7500 mm Inner 3600 mm WEIGHT Operating 18000 kg NBB3 BASKET BOOM Max. load 400 kg (with optional safety roof 300 kg) Lifting height 9240 mm Boom swing +/- 30o Automatic levelling of basket Diesel start/stop (from the basket) Hydraulic support legs EMULSION SYSTEM Tank volume 1000 + 1500 l Water tank 500 l Emulsion pump for charging OPTIONS AND ACCESSORIES: Enclosed cabin
