| I\lukei/al Application Bulletin WE-3 | sales@nokeval.com Tel. +358-3-3424 800 www.nokeval.com Fax. +358-3-3422 066 | |||
| | ||||

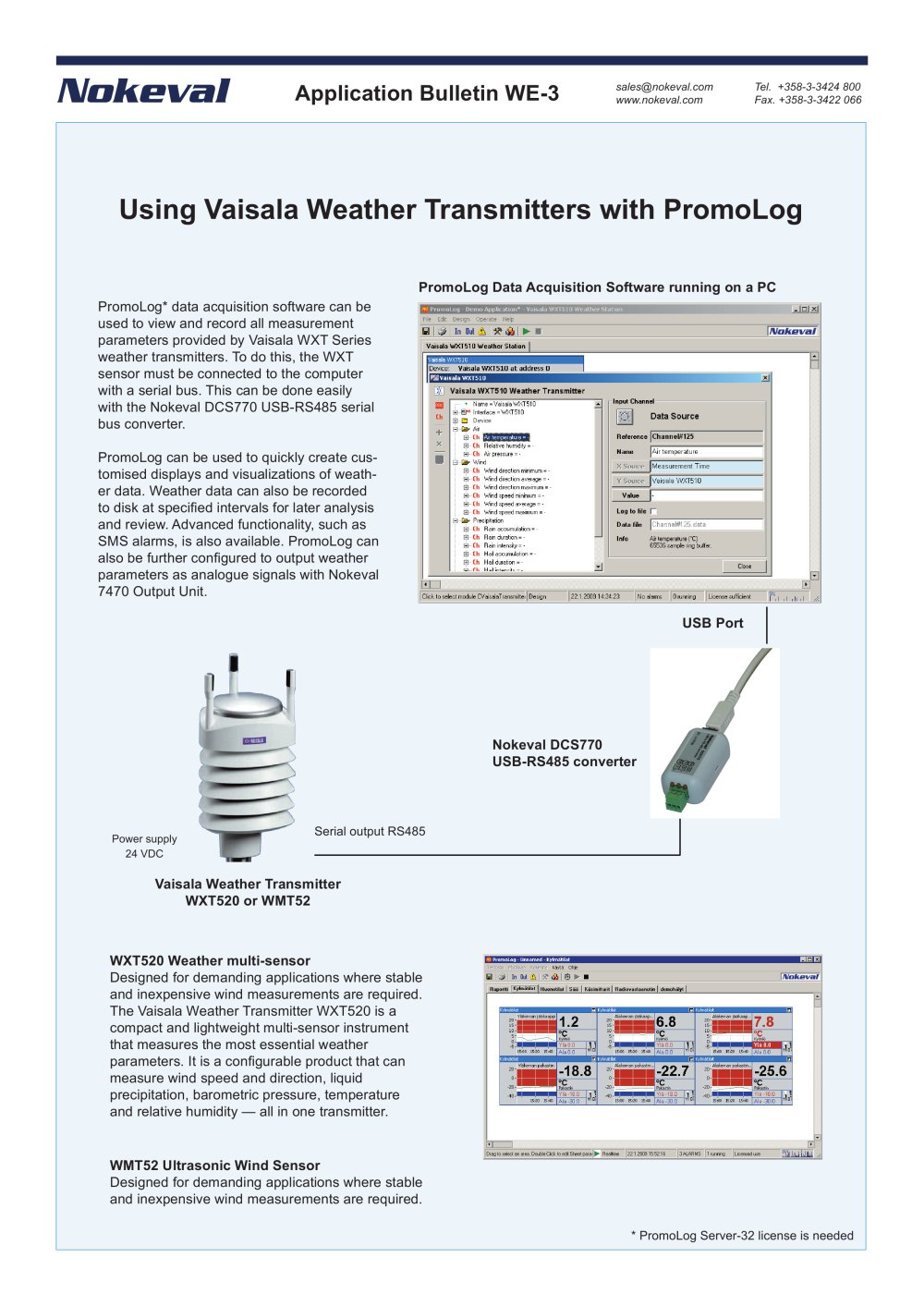

| Using Vaisala Weather Transmitters with PromoLog | ||||
| | ||||
| PromoLog Data Acquisition Software running on a PC | ||||
| | ||||
| PromoLog* data acquisition software can be used to view and record all measurement parameters provided by Vaisala WXT Series weather transmitters. To do this, the WXT sensor must be connected to the computer with a serial bus. This can be done easily with the Nokeval DCS770 USB-RS485 serial bus converter. PromoLog can be used to quickly create customised displays and visualizations of weather data. Weather data can also be recorded to disk at specified intervals for later analysis and review. Advanced functionality, such as SMS alarms, is also available. PromoLog can also be further configured to output weather parameters as analogue signals with Nokeval 7470 Output Unit. | ||||
| | ||||
| Nokeval DCS770 USB-RS485 converter | ||||
| | ||||
| Power supply 24 VDC | Serial output RS485 | |||
| | ||||
| Vaisala Weather Transmitter WXT520 or WMT52 | ||||
| | ||||
| WXT520 Weather multi-sensor Designed for demanding applications where stable and inexpensive wind measurements are required. The Vaisala Weather Transmitter WXT520 is a compact and lightweight multi-sensor instrument that measures the most essential weather parameters. It is a configurable product that can measure wind speed and direction, liquid precipitation, barometric pressure, temperature and relative humidity — all in one transmitter. | ||||
| | ||||
| WMT52 Ultrasonic Wind Sensor Designed for demanding applications where stable and inexpensive wind measurements are required. | ||||
| | ||||
| * PromoLog Server-32 license is needed | ||||
| | ||||
