HIGH-POWER SEMICONDUCTOR LASERS AND FIBERS

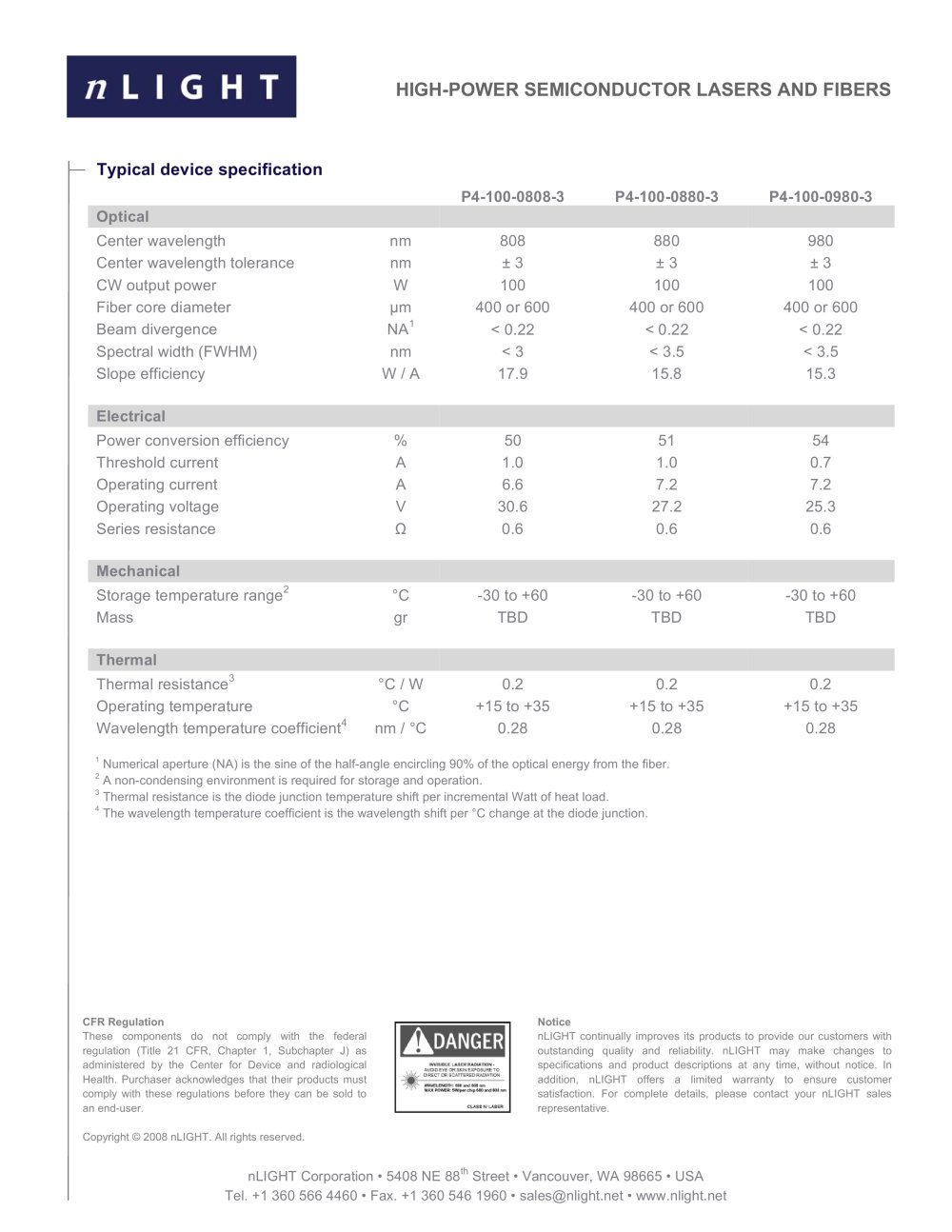

Typical device specification

P4-100-0808-3 P4-100-0880-3 P4-100-0980-3 Optical Center wavelength nm 808 880 980 Center wavelength tolerance nm ± 3 ± 3 ± 3 CW output power W 100 100 100 Fiber core diameter µm 400 or 600 400 or 600 400 or 600 Beam divergence NA
1
2 °C -30 to +60 -30 to +60 -30 to +60 Mass gr TBD TBD TBD Thermal Thermal resistance
3 °C / W 0.2 0.2 0.2 Operating temperature °C +15 to +35 +15 to +35 +15 to +35 Wavelength temperature coefficient
4 nm / °C 0.28 0.28 0.28
1 Numerical aperture (NA) is the sine of the half-angle encircling 90% of the optical energy from the fiber. 2 A non-condensing environment is required for storage and operation. 3 Thermal resistance is the diode junction temperature shift per incremental Watt of heat load. 4 The wavelength temperature coefficient is the wavelength shift per °C change at the diode junction. CFR Regulation These components do not comply with the federal regulation (Title 21 CFR, Chapter 1, Subchapter J) as administered by the Center for Device and radiological Health. Purchaser acknowledges that their products must comply with these regulations before they can be sold to an end-user. Copyright © 2008 nLIGHT. All rights reserved. Notice nLIGHT continually improves its products to provide our customers with outstanding quality and reliability. nLIGHT may make changes to specifications and product descriptions at any time, without notice. In addition, nLIGHT offers a limited warranty to ensure customer satisfaction. For complete details, please contact your nLIGHT sales representative. nLIGHT Corporation • 5408 NE 88 th Street • Vancouver, WA 98665 • USA Tel. +1 360 566 4460 • Fax. +1 360 546 1960 • sales@nlight.net • www.nlight.net
