Summit™ QCW Package Series – A Package Features

Highest Efficiency Low Thermal Resistance Mechanically Robust
The Summit Shock and Vibration Resistant
TM NL-QD-Q1y0z-A package is a high power diode laser stack operating in Quasi-CW mode. This product is designed with 2 to 5 highly efficient 1cm linear bar arrays. The ‘y’ in NL-QD-Q1y0z-A characterizes the optical power of each bar. For y = 2, 3, 4, and 5, peak optical power is 360W, 480W, 600W, and 900W, respectively, with power densities ranging from 1.8 to 3kW/cm. The robust processes used to manufacture these diode lasers lead to longer lifetime and improved reliability. This helps to make the NL-QD-Q1y0z-A stacked array ideal for applications under severe environmental conditions, such as pumping solid-state lasers in illuminators and designators. This compact and rugged design is well suited to defense and space applications requiring small footprint and high reliability. Passively Cooled Package

Applications

Target Designation Ranging LIDAR Medical Ignition

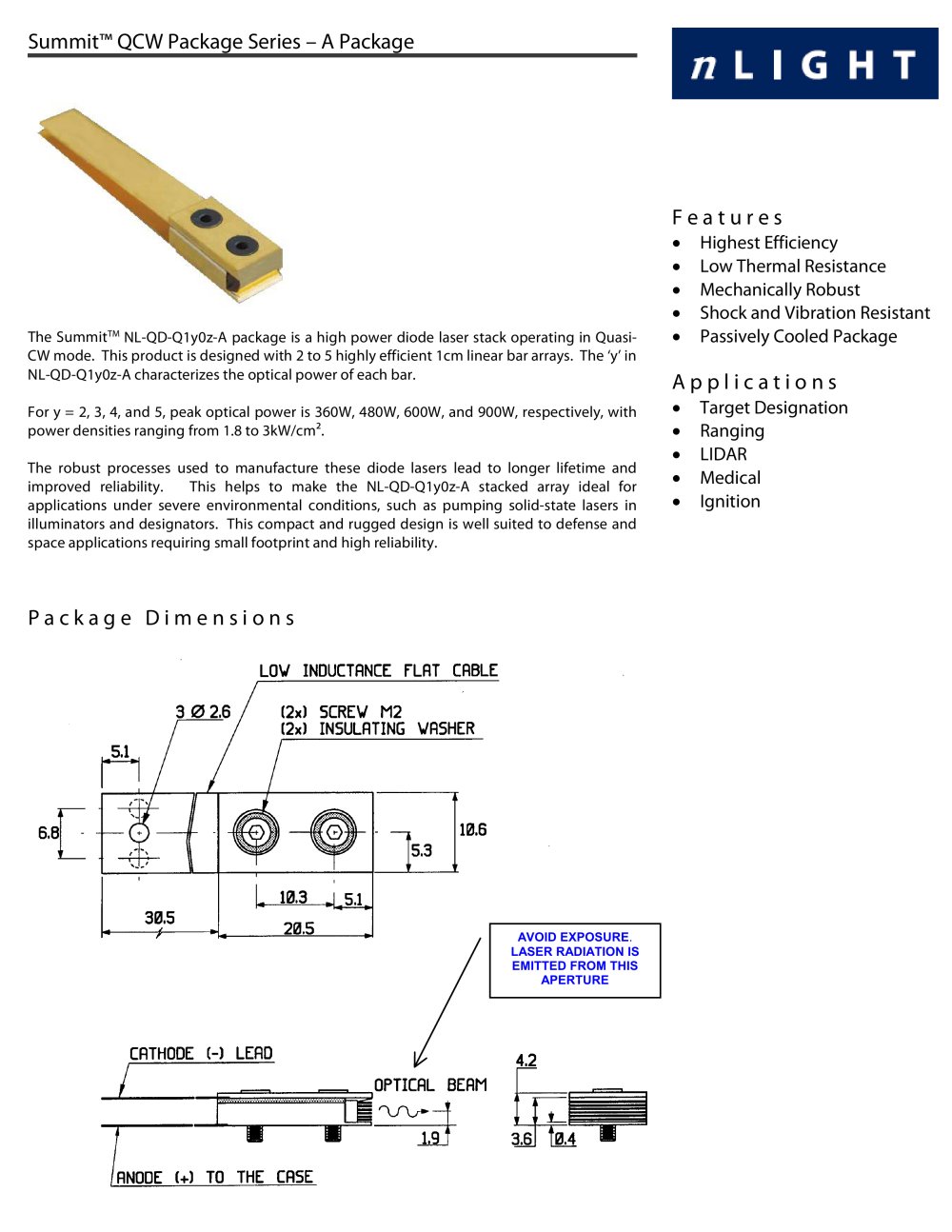

Package Dimensions

AVOID EXPOSURE . LASER RADIATION IS EMITTED FROM THIS APERTURE
