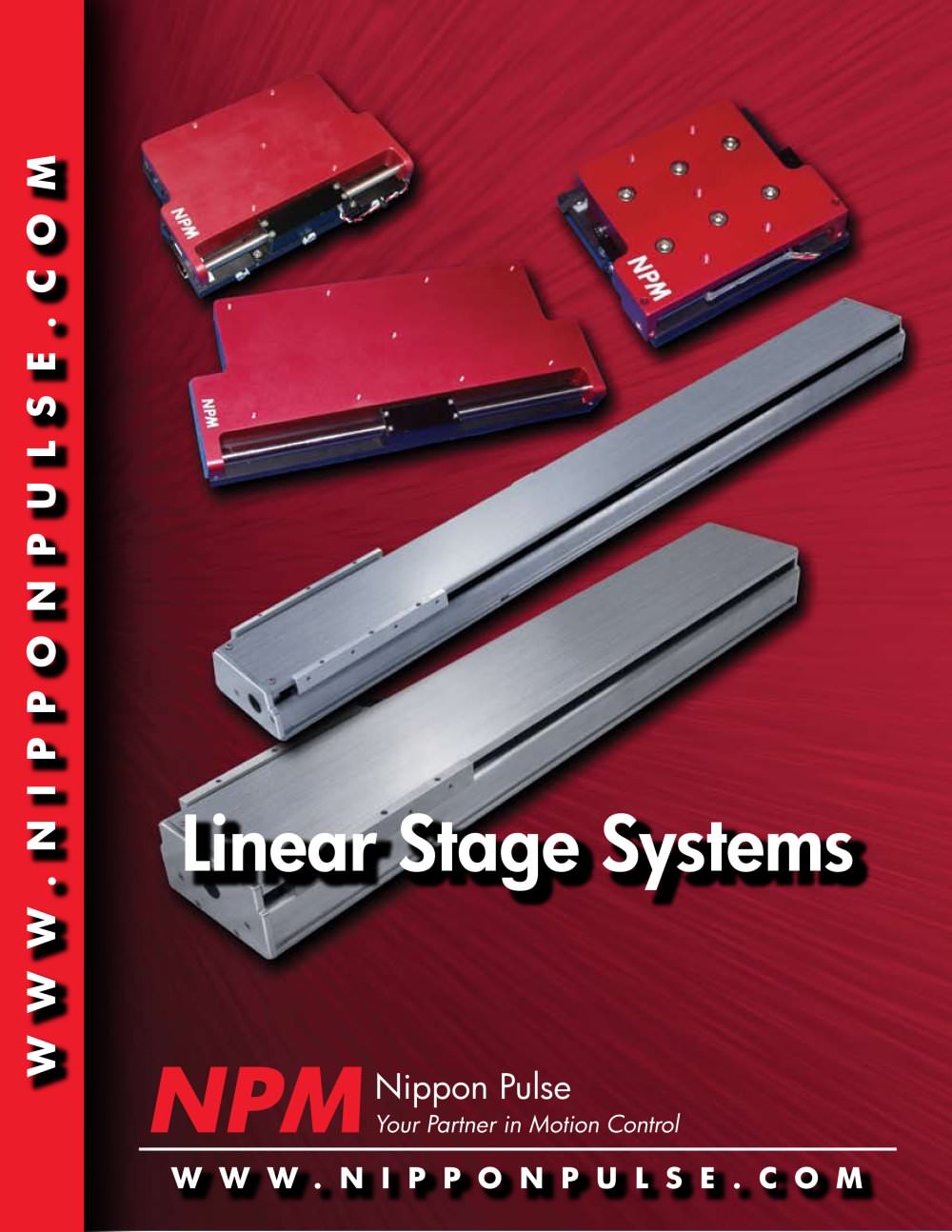

Linear Stage Systems Nippon Pulse w w w . n i p p o n p u l s e . c o m w w w . n i p p o n p u l s e . c o m Your Partner in Motion Control NPM

N i p p o n P u l s e Linear Stages www.nipponpulse.com SLP There are three SLP models to meet your high-performance needs • Slider • Coil Unit • Shaft • Linear Encoder High Performance Single-Axis Linear Stage SC R AcculinE Series High Precision Single-Axis Linear Stage Nanopositioning Series Four SCR stage models allow for design flexibility in high-precision applications The SCR Nanopositioning Series offers the accuracy of piezo driven stages with the speed and performance of servo stages. SCR series stages produce extremely accurate results with no loss in stability, regardless of the complexity...

Linear Stages Y o u r P a r t n e r I n M o t i o n C o n t r o l www.nipponpulse.com SC R Stages 79 (3.110) A B 28 (1.102) 29 (1.142) 12.9 (0.508) 56 (2.205) 14.5 (0.571) M4 Thread 75.10 (2.957) 29.51 (1.162) M4 Thru-hole 56 (2.205) 29 (1.142) 26.4 (1.039) Stage Specifications Units SCR050-020 SCR050-040 Travel/Stroke mm 20 40 Stage Width (B) mm 75 95 Accuracy ìm 2 2 Encoder Resolution nm 1000, 500, 100, 50, 10 Bi-Directional Repeatability1 ±1 count Maximum Acceleration m/s2 20 8 Maximum Velocity2 m/s 0.6 0.5 Load Capacity3 kg 10 Moving Mass kg 0.115 0.275 Total Mass g 450 700 Straightness &...

N i p p o n P u l s e Linear Stages www.nipponpulse.com SC R Stages Stage Specifications1 Units SCR075-050 SCR075-100 SCR075-150 Travel/Stroke mm 50 100 150 Stage Width (B) mm 140 190 240 Accuracy ìm 3 5 7 Encoder Resolution nm 1000, 500, 100, 50, 10 Bi-Directional Repeatability2 ±1 count Maximum Acceleration m/s2 25 20 15 Maximum Velocity3 m/s 1.1 1.4 1.5 Load Capacity4 kg 45.5 Moving Mass kg 0.55 0.7 0.93 Total Mass kg 1 1.3 1.7 Straightness & Flatness ìm 2.5/25mm Home Limit Switches Standard Home Switch Location Center Limit Switch Over Travel mm 1 Hard Stop Over Travel mm 2 Bearing Cross-roller...

Linear Stages Y o u r P a r t n e r I n M o t i o n C o n t r o l www.nipponpulse.com SC R Stages Linear Shaft Motor Force Specifications Units S080Q Fundamental Motor Constant N/W 1.39 Motor Force Constant (Kf) N/A rms 4.2 Back-EMF Constant V/m/s 1.4 Coil Resistance @ 25°C Ù 9.0 Coil Inductance mH 1.3 Continuous Current @ 135°C A 0.84 Acceleration Current A 3.4 Continuous Force @ 135°C N 3.5 Acceleration Force N 14 Continuous Power Rating W 12.7 Thermal Resistance °C/W 17.3 A 55 (2.165) 10 (0.394) 65 (2.559) M4 Thru-hole B 32 (1.26) C 32.5 (1.28) 5 (0.197) 65 (2.559) 98 (3.858) 55 27.5 (2.165)...

N i p p o n P u l s e Linear Stages www.nipponpulse.com SC R Stages Like its relatives, the SCR100 integrates a slide guide, encoder, and a Linear Shaft Motor. A wide range of options allows for a better match for stage applications needing sub-nanometer resolution that is free from motion errors. Like the SCR050 and SCR075, the encoder and motor cables are built into the stationary base and are designed so there is no need for them to bend and flex. Each SCR stage requires a servo driver to operate the stage. Any two SCR stages will bolt directly together to form a very stiff, compact X-Y assembly,...

Linear Stages Y o u r P a r t n e r I n M o t i o n C o n t r o l www.nipponpulse.com A 72 (2.835) 14 (0.551) 89 (3.504) M4 Thru-hole C M5 Thread 5.5 (0.217) 89 (3.504) 123 (4.843) 36 (1.417) 72 (2.835) 44.5 (1.752) B 34 (1.339) SC R Stages Linear Shaft Motor Force Specifications Units S080Q Fundamental Motor Constant N/W 1.39 Motor Force Constant (Kf) N/A rms 4.2 Back-EMF Constant V/m/s 1.4 Coil Resistance @ 25°C Ù 9 Coil Inductance mH 1.3 Continuous Current @ 135°C A 0.84 Acceleration Current A 3.4 Continuous Force @ 135°C N 3.5 Acceleration Force N 14 Continuous Power Rating W 12.7 Thermal...

N i p p o n P u l s e Linear Stages www.nipponpulse.com Specifications1 Units SCR150-100 SCR150-150 SCR150-200 SCR150-250 SCR150-300 Travel/Stroke2 mm 100 150 200 250 300 Stage Width (B) mm 230 280 330 380 430 Stroke mm 100 150 200 250 300 Accuracy ìm 5 7 9 11 12 Encoder Resolution nm 1000, 500, 100, 50, 10 Bi-Directional Repeatability3 ±1 count Maximum Acceleration m/s2 17 13 11 9 8 Maximum Velocity4 m/s 1.3 1.3 1.4 1.5 1.5 Load Capacity5 kg 45.5 Moving Mass kg 2.3 2.9 3.5 4.1 4.7 Total Mass kg 5.2 6.5 7.9 9.2 10.6 Straightness & Flatness ìm 2/25mm Home Limit Switches Standard Home Switch Location...

Linear Stages Y o u r P a r t n e r I n M o t i o n C o n t r o l www.nipponpulse.com A B 113 (4.449) 18.5 (0.728) 125 (4.921) Thru-hole 4.921 125 C 182.18 (7.172) 11.09 (0.437) M6 Thread 113 (4.449) 56.5 (2.224) 62.5 (2.461) 113 (4.449) SCR150-150 0.10 1.00 10.00 100.00 0.0 9.1 18.2 27.3 36.4 45.5 Load Mass Acceleration (m/S2) 0 200 400 600 800 1000 1200 1400 1600 1800 Velocity (mm/s) Acceleration D coil Max Velocity D coil SCR150-200 0.10 1.00 10.00 100.00 0.0 9.1 18.2 27.3 36.4 45.5 Load Mass Acceleration (m/S2) 0200 400 600 800 1000 1200 1400 1600 1800 2000 Velocity (mm/s) Acceleration D...

N i p p o n P u l s e Linear Stages www.nipponpulse.com Rated Spec Unit Specification Encoder Resolution ìm 1 (HEIDENHAIN LIDA279) Continuous Force N 17 Acceleration Force1 N 90 Continuous Current2 A 0.51 Acceleration Current1 A 2.7 Force Constant (Kf) N/A rms 33 Back-EMF Constant V/m/s 11 Resistance3 ohm 56 Inductance3 mH 24 Magnetic Pitch (N-N) mm 60 Maximum Acceleration4 G 3.5 Maximum Velocity4, 5 m/s 3 Bi-Directional Repeatability mm ±0.0005 Max Load, Horizontal kg 5 Load Capacity kg 3 Stroke, Single Forcer6 mm 100~1300 (100 interval) Stroke, Double Forcer6 mm 100~1200 (100 interval) Operating...

Linear Stages Y o u r P a r t n e r I n M o t i o n C o n t r o l www.nipponpulse.com Single Slider Dimensions Double Slider Dimensions Stroke (mm) L (mm) N Weight (Kg) 100 420 4 3.0 200 520 5 3.5 300 620 6 3.9 400 720 7 4.3 500 820 8 4.8 600 920 9 5.2 700 1020 10 5.6 800 1120 11 6.1 900 1220 12 6.5 1000 1320 13 6.9 1100 1420 14 7.4 1200 1520 15 7.8 2.6 1 5.8 3.3 Detail For P&Q 10 (Including Mechanical Stop) 4-M4 Depth 10 2-öH7 Depth 10 Stroke 10 (Including Mechanical Stop) L Encoder Cable Motor Power Supply Cable 140 25 45 45 82 88 48 84 10 40 40 40 P Q 5 For Frame Ground Travel FG Label 4-M3...
