06F

Plug-in chassis

CHANGHE ENCLOSURES

Available sizefor 06F 06F 06F 06F 06F

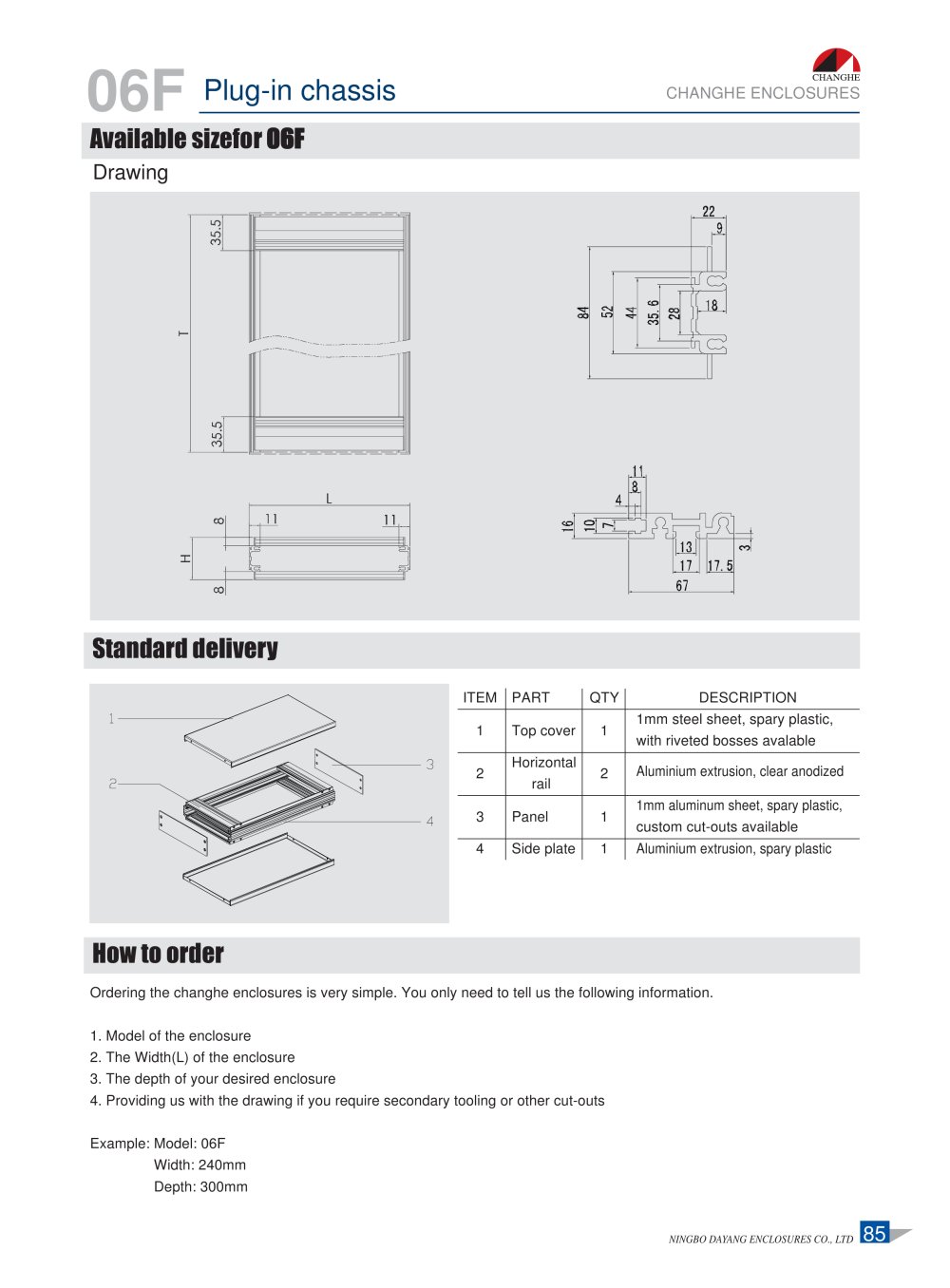

Drawing

Standard delivery

ITEMPARTQTYDESCRIPTION1Top cover11mm steel sheet, spary plastic, with riveted bosses avalable2Horizontal2 Aluminium extrusion, clear anodized rail3Panel1 1mm aluminum sheet, spary plastic, custom cut-outs available4Side plate1 Aluminium extrusion, spary plastic

How to order

Ordering the changhe enclosures is very simple. You only need to tell us the following information.1. Model of the enclosure2. The Width(L) of the enclosure3. The depth of your desired enclosure4. Providing us with the drawing if you require secondary tooling or other cut-outsExample: Model: 06F Width: 240mm Depth: 300mm
NINGBO DAYANG ENCLOSURES CO., LTD

85
