06

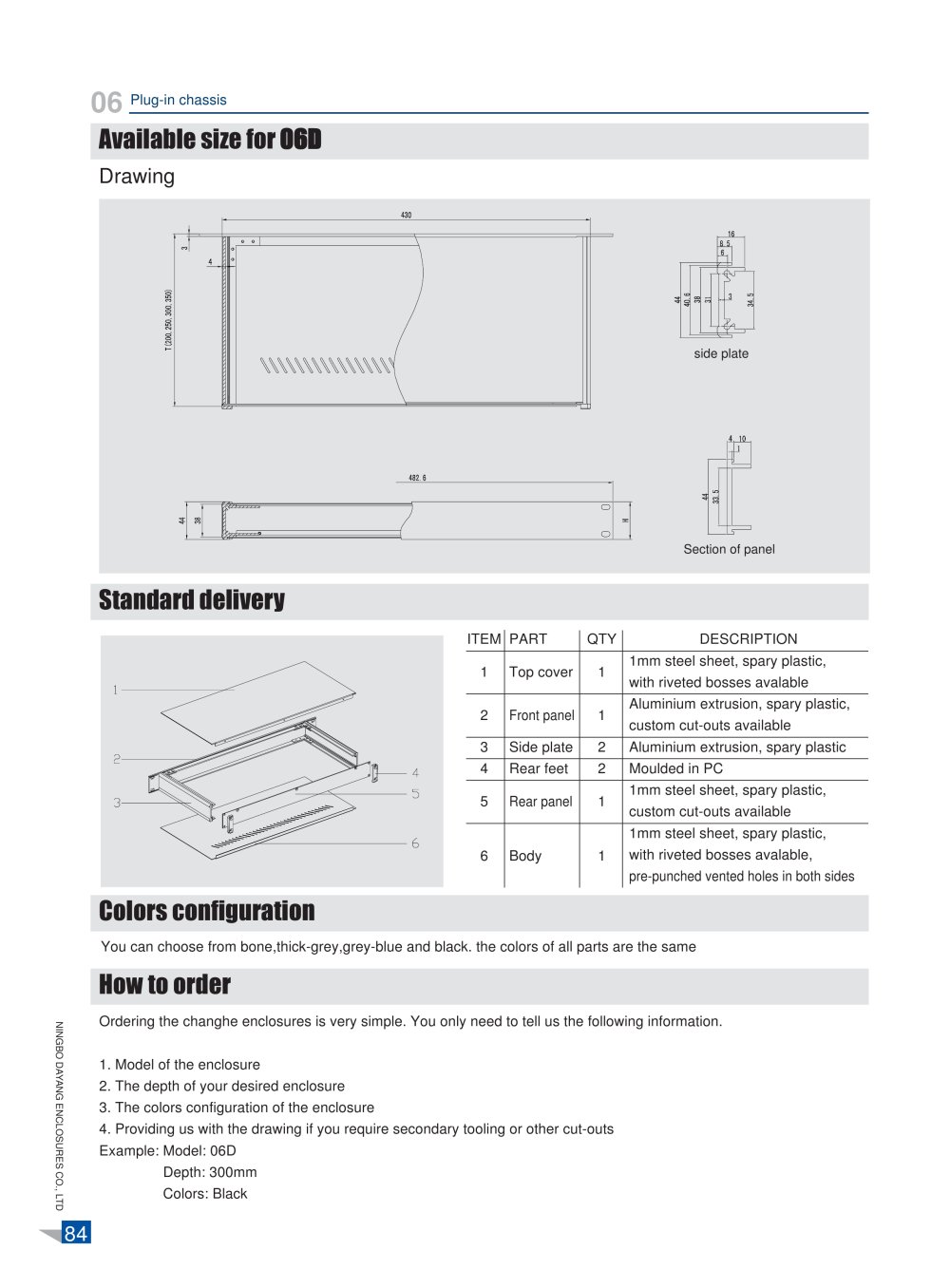

Plug-in chassis

Available size for 06D06D06D06D06D

Drawing

side plate Section of panel

Standard delivery

ITEMPARTQTYDESCRIPTION1Top cover11mm steel sheet, spary plastic, with riveted bosses avalable2 Front panel 1Aluminium extrusion, spary plastic, custom cut-outs available 3Side plate2Aluminium extrusion, spary plastic 4Rear feet2Moulded in PC5 Rear panel 11mm steel sheet, spary plastic, custom cut-outs available6Body11mm steel sheet, spary plastic,with riveted bosses avalable, pre-punched vented holes in both sides

Colors configuration

You can choose from bone,thick-grey,grey-blue and black. the colors of all parts are the same

How to order

NINGBO DAYANG ENCLOSURES CO., LTD Ordering the changhe enclosures is very simple. You only need to tell us the following information.1. Model of the enclosure2. The depth of your desired enclosure3. The colors configuration of the enclosure4. Providing us with the drawing if you require secondary tooling or other cut-outsExample: Model: 06D Depth: 300mm Colors: Black

84
