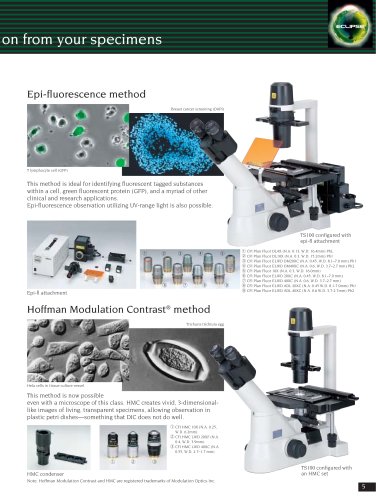

Eclipse TS100/TS100F - 5 / 8 Pages

on from your specimens Epi-fluorescence method

T lymphocyte cell (GFP)
Breast cancer screening (DAPI) >

This method is ideal for identifying fluorescent tagged substanceswithin a cell, green fluorescent protein (GFP), and a myriad of otherclinical and research applications. Epi-fluorescence observation utilizing UV-range light is also possible.
This method is now possibleeven with a microscope of this class. HMC creates vivid, 3-dimensional-
like images of living, transparent specimens, allowing observation in
plastic petri dishessomething that DIC does not do well.

TS100 configured withepi-fl attachment

qwertiouy
qwe

q CFI Plan Fluor DL4X (N.A. 0.13, W.D. 16.4mm) PhL w CFI Plan Fluor DL10X (N.A. 0.3, W.D. 15.2mm) Ph1 e CFI Plan Fluor ELWD DM20XC (N.A. 0.45, W.D. 8.1ז7.0 mm) Ph1 r CFI Plan Fluor ELWD DM40XC (N.A. 0.6, W.D. 3.72.7 mm) Ph2 t CFI Plan Fluor 10X (N.A. 0.3, W.D. 16.0mm) y CFI Plan Fluor ELWD 20XC (N.A. 0.45, W.D. 8.1֖7.0 mm) u CFI Plan Fluor ELWD 40XC (N.A. 0.6, W.D. 3.72.7 mm) i CFI Plan Fluor ELWD ADL 20XC (N.A. 0.45 W.D. 8.1-7.0mm) Ph1 >

Epi-fl attachment
HMC condenserTS100 configured withan HMC set

o CFI Plan Fluor ELWD ADL 40XC (N.A. 0.6 W.D. 3.7-2.7mm) Ph2 >

Hoffman Modulation Contrast

֮

method

q CFI HMC 10X (N.A. 0.25,W.D. 6.2mm) w CFI HMC LWD 20XF (N.A.0.4, W.D. 3.9mm) e CFI HMC LWD 40XC (N.A.0.55, W.D. 2.71.7 mm)
Trichuris trichiura egg
Hela cells in tissue culture vessel >

Note: Hoffman Modulation Contrast and HMC are registered trademarks of Modulation Optics Inc.

5
