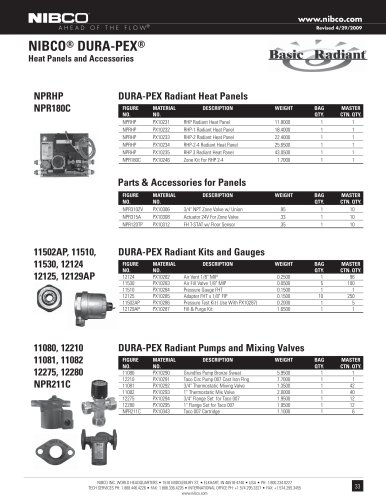

DURA-PEX® Catalog - 44 Pages

NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227
TECH SERVICES PH: 1.888.446.4226 • FAX: 1.888.336.4226 • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: +1.574.295.3455
www.nibco.com
33
www.nibco.com
A H E A D O F T H E F L O W® Revised 4/29/2009
NIBCO® DURA-PEX®
Heat Panels and Accessories
NPRHP DURA-PEX Radiant Heat Panels
NPR180C FIGURE MATERIAL DESCRIPTION WEIGHT BAG MASTER
NO. NO. QTY. CTN. QTY.
NPRHP PX10231 RHP Radiant Heat Panel 11.8000 1 1
NPRHP PX10232 RHP-1 Radiant Heat Panel 18.4000 1 1
NPRHP PX10233 RHP-2 Radiant Heat Panel 22.4000 1 1
NPRHP PX10234 RHP-2-4 Radiant Heat Panel 25.6500 1 1
NPRHP PX10235 RHP 3 Radiant Heat Panel 43.0500 1 1
NPR180C PX10246 Zone Kit For RHP 2-4 1.7000 1 1
FIGURE MATERIAL DESCRIPTION WEIGHT BAG MASTER
NO. NO. QTY. CTN. QTY.
NPR310ZV PX10306 3/4" NPT Zone Valve w/ Union .95 1 10
NPR315A PX10308 Actuator 24V For Zone Valve .33 1 10
NPR120TP PX10312 FH T-STAT w/ Floor Sensor .35 1 10
11502AP, 11510, DURA-PEX Radiant Kits and Gauges
11530, 12124
12125, 12129AP
FIGURE MATERIAL DESCRIPTION WEIGHT BAG MASTER
NO. NO. QTY. CTN. QTY.
12124 PX10282 Air Vent 1/8" MIP 0.2500 1 96
11530 PX10283 Air Fill Valve 1/8" MIP 0.0500 5 100
11510 PX10284 Pressure Gauge FHT 0.1500 1 1
12125 PX10285 Adapter FHT x 1/8" FIP 0.1500 10 250
11502AP PX10286 Pressure Test Kit ( Use With PX10287) 0.2000 1 5
12129AP PX10287 Fill & Purge Kit 1.6500 1 1
11080, 12210 DURA-PEX Radiant Pumps and Mixing Valves
11081, 11082
12275, 12280
NPR211C
FIGURE MATERIAL DESCRIPTION WEIGHT BAG MASTER
NO. NO. QTY. CTN. QTY.
11080 PX10290 Grundfos Pump Bronze Sweat 5.9500 1 1
12210 PX10291 Taco Circ Pump 007 Cast Iron Flng 7.7000 1 1
11081 PX10292 3/4" Thermostatic Mixing Valve 1.3500 1 42
11082 PX10293 1" Thermostatic Mix Valve 2.0000 1 40
12275 PX10294 3/4" Flange Set for Taco 007 1.9500 1 12
12280 PX10295 1" Flange Set for Taco 007 1.9500 1 12
NPR211C PX10343 Taco 007 Cartridge 1.1000 1 6
Parts & Accessories for Panels
