Air Conveyors - Ring-Vac™ Pneumatic Conveying System

Air Conveyors - Ring-Vac™ Pneumatic Conveying System
2Pages

Catalog excerpts

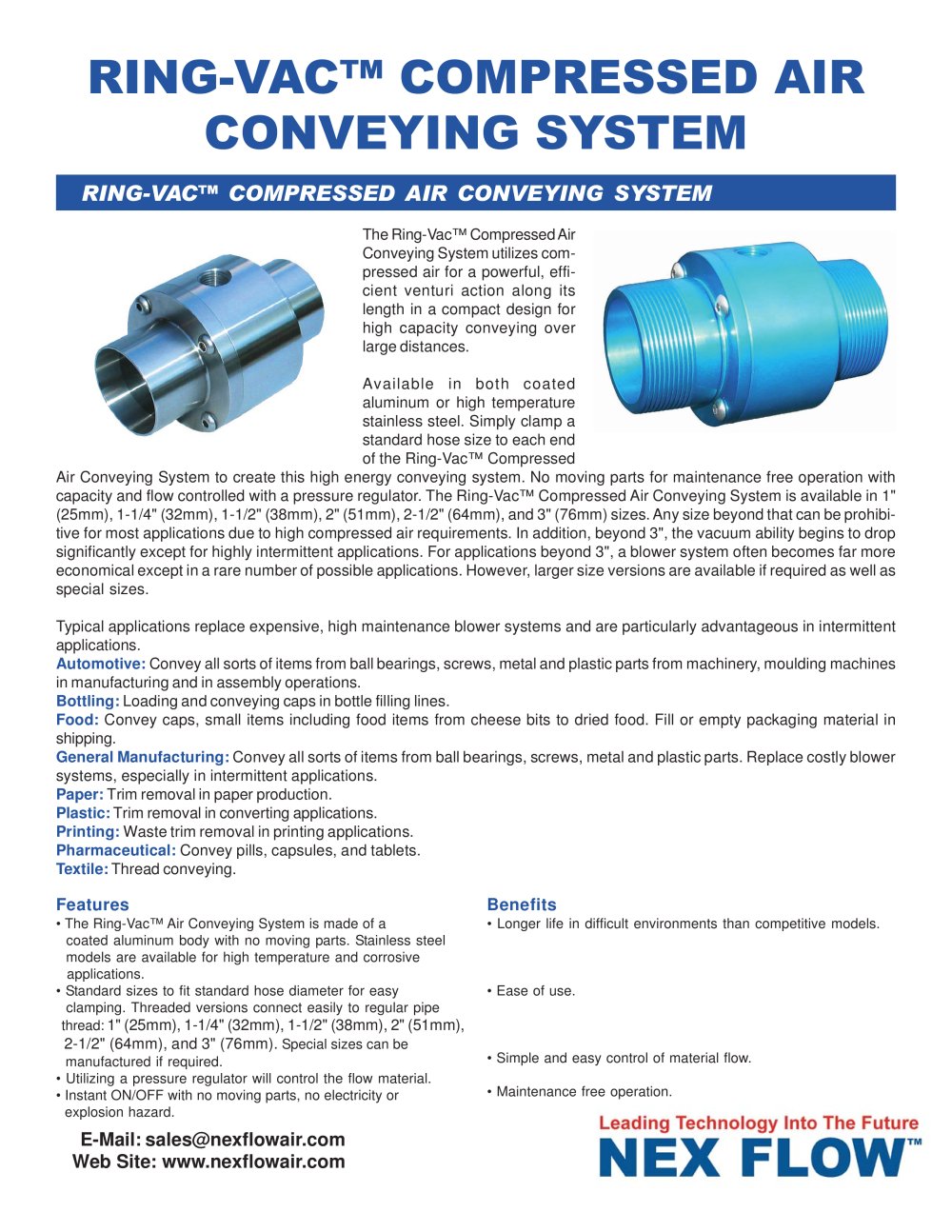

Air Conveyors - Ring-Vac™ Pneumatic Conveying System - 1

The Ring-Vac Compressed Air Conveying System utilizes com- pressed air for a powerful, effi- cient venturi action along its length in a compact design for high capacity conveying over large distances.Available in both coatedaluminum or high temperature stainless steel. Simply clamp a standard hose size to each end of the Ring-Vacٙ CompressedAir Conveying System to create this high energy conveying system. No moving parts for maintenance free operation with capacity and flow controlled with a pressure regulator. The Ring-Vac Compressed Air Conveying System is available in 1" (25mm), 1-1/4" (32mm), 1-1/2" (38mm), 2" (51mm), 2-1/2" (64mm), and 3" (76mm) sizes. Any size beyond that can be prohibi- tive for most applications due to high compressed air requirements. In addition, beyond 3", the vacuum ability begins to drop significantly except for highly intermittent applications. For applications beyond 3", a blower system often becomes far more economical except in a rare number of possible applications. However, larger size versions are available if required as well as special sizes.Typical applications replace expensive, high maintenance blower systems and are particularly advantageous in intermittentapplications. Automotive: Convey all sorts of items from ball bearings, screws, metal and plastic parts from machinery, moulding machinesin manufacturing and in assembly operations. Bottling: Loading and conveying caps in bottle filling lines. Food: Convey caps, small items including food items from cheese bits to dried food. Fill or empty packaging material inshipping. General Manufacturing: Convey all sorts of items from ball bearings, screws, metal and plastic parts. Replace costly blowersystems, especially in intermittent applications. Paper: Trim removal in paper production. Plastic: Trim removal in converting applications. Printing: Waste trim removal in printing applications. Pharmaceutical: Convey pills, capsules, and tablets. Textile: Thread conveying. > ? The Ring-Vacٙ Air Conveying System is made of a coated aluminum body with no moving parts. Stainless steel models are available for high temperature and corrosive applications. ? Standard sizes to fit standard hose diameter for easy clamping. Threaded versions connect easily to regular pipe thread: ? Longer life in difficult environments than competitive models.? Ease of use.? Simple and easy control of material flow.? Maintenance free operation. 1" (25mm), 1-1/4" (32mm), 1-1/2" (38mm), 2" (51mm), 2-1/2" (64mm), and 3" (76mm). > Special sizes can be manufactured if required.? Utilizing a pressure regulator will control the flow material. ? Instant ON/OFF with no moving parts, no electricity or explosion hazard.

Open the catalog to page 1
