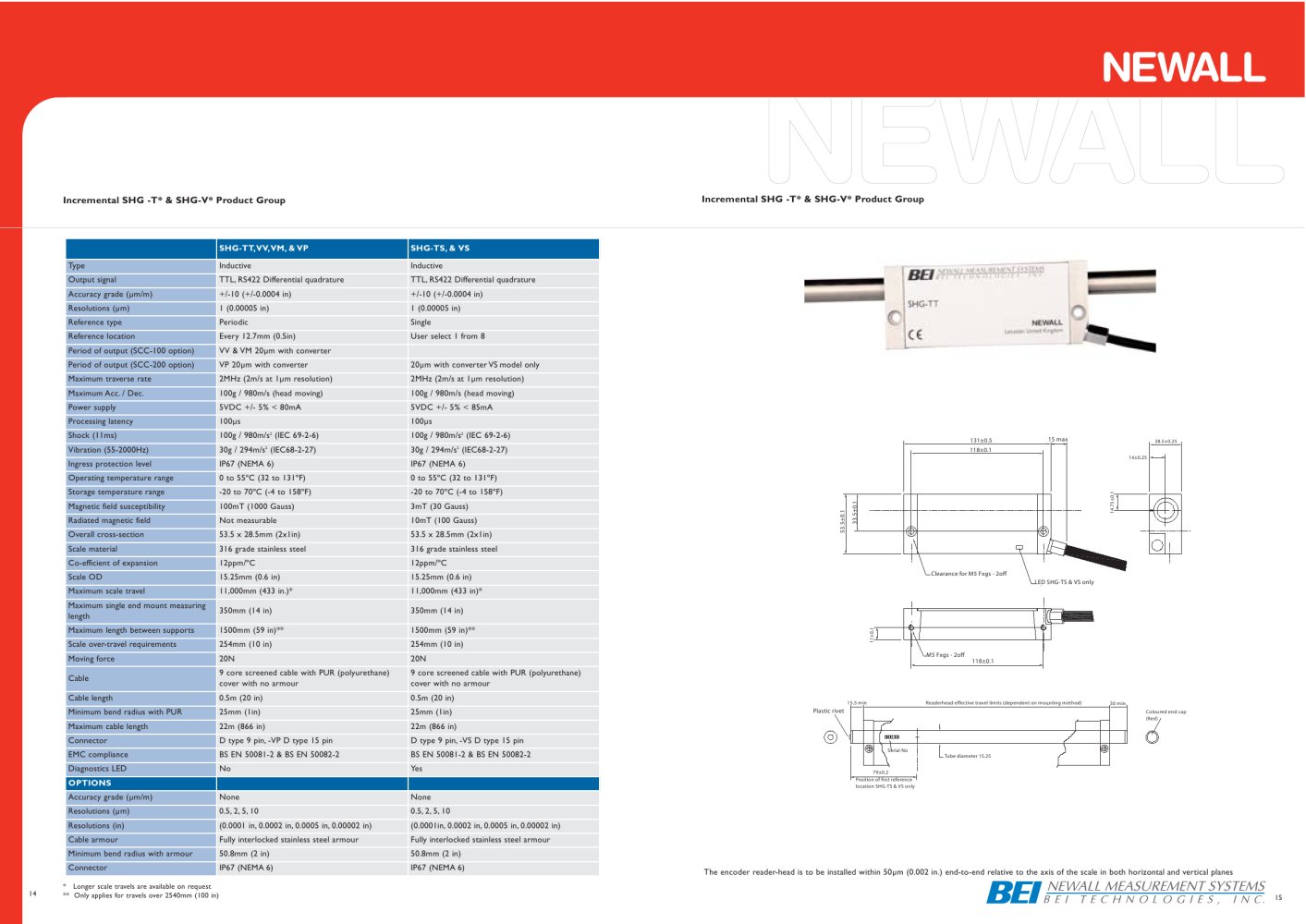

Incremental SHG -T* & SHG-V* Product Group Incremental SHG -T* & SHG-V* Product Group

SHG-TT,VV,VM,& VP SHG-TS,&VS Type Inductive Inductive Output signal TTL,RS422 Differential quadrature TTL,RS422 Differential quadrature Accuracy grade (µm/m) +/-10 (+/-0.0004 in) +/-10 (+/-0.0004 in) Resolutions (µm) 1 (0.00005 in) 1 (0.00005 in) Reference type Periodic Single Reference location Every 12.7mm (0.5in) User select 1 from 8 Period of output (SCC-100 option) VV &VM 20µm with industrial converter Period of output (SCC-200 option) VP 20µm with converter 20µm with converter VSmodel only Maximum traverse rate 2MHz (2m/s at 1µm resolution) 2MHz (2m/s at 1µm resolution) Maximum Acc./ Dec. 100g / 980m/s (head moving) 100g / 980m/s (head moving) Power supply 5VDC +/- 5% < 80mA 5VDC +/- 5% < 85mA Processing latency 100µs 100µs Shock (11ms) 100g / 980m/s
2 (IEC 69-2-6) 100g / 980m/s
2 (IEC 69-2-6)
131±0.5118±0.115 max Vibration (55-2000Hz) 30g / 294m/s
2 (IEC68-2-27) 30g / 294m/s
2 (IEC68-2-27) Ingress protection level IP67 (NEMA 6) IP67 (NEMA 6) Operating temperature range 0 to 55ºC (32 to 131ºF) 0 to 55ºC (32 to 131ºF) Storage temperature range -20 to 70ºC (-4 to 158ºF) -20 to 70ºC (-4 to 158ºF) Magnetic field susceptibility 100mT (1000 Gauss) 3mT (30 Gauss)
14.75±0.1 Radiated magnetic field Not measurable 10mT (100 Gauss) Overall cross-section 53.5 x 28.5mm (2x1in) 53.5 x 28.5mm (2x1in)
53.5±0.133.5±0.1 Scale material 316 grade stainless steel 316 grade stainless steel Co-efficient of expansion 12ppm/ºC 12ppm/ºC Scale OD 15.25mm (0.6 in) 15.25mm (0.6 in)
Clearance for M5 Fxgs - 2offLED SHG-TS & VS only M5 Fxgs - 2off118±0.1 Maximum scale travel 11,000mm (433 in.)* 11,000mm (433 in)* Maximum single end mount measuringlength 350mm (14 in) 350mm (14 in) Maximum length between supports 1500mm (59 in)** 1500mm (59 in)**
1 . Scale over-travel requirements 254mm (10 in) 254mm (10 in)
11±0 Moving force 20N 20N Cable 9 core screened cable with PUR (polyurethane) cover with no armour 9 core screened cable with PUR (polyurethane) cover with no armour Cable length 0.5m (20 in) 0.5m (20 in)
15.5 minSerial No79±0.2Position of first reference location SHG-TS & VS only Readerhead effective travel limits (dependent on mounting method)30 min.Coloured end cap(Red)Tube diameter 15.25 28.5±0.2514±0.25 Minimum bend radius with PUR 25mm (1in) 25mm (1in)
Plastic rivet Maximum cable length 22m (866 in) 22m (866 in) Connector D type 9 pin,-VP D type 15 pin D type 9 pin,-VS D type 15 pin EMC compliance BS EN 50081-2 & BS EN 50082-2 BS EN 50081-2 & BS EN 50082-2 Diagnostics LED No Yes OPTIONS Accuracy grade (µm/m) None None Resolutions (µm) 0.5,2,5,10 0.5,2,5,10 Resolutions (in) (0.0001 in,0.0002 in,0.0005 in,0.00002 in) (0.0001in,0.0002 in,0.0005 in,0.00002 in) Cable armour Fully interlocked stainless steel armour Fully interlocked stainless steel armour Minimum bend radius with armour 50.8mm (2 in) 50.8mm (2 in) Connector IP67 (NEMA6) IP67 (NEMA6) The encoder reader-head is to be installed within 50µm (0.002 in.) end-to-end relative to the axis of the scale in both horizontal and vertical planes
* Longer scale travels are available on request** Only applies for travels over 2540mm (100 in) 1415
