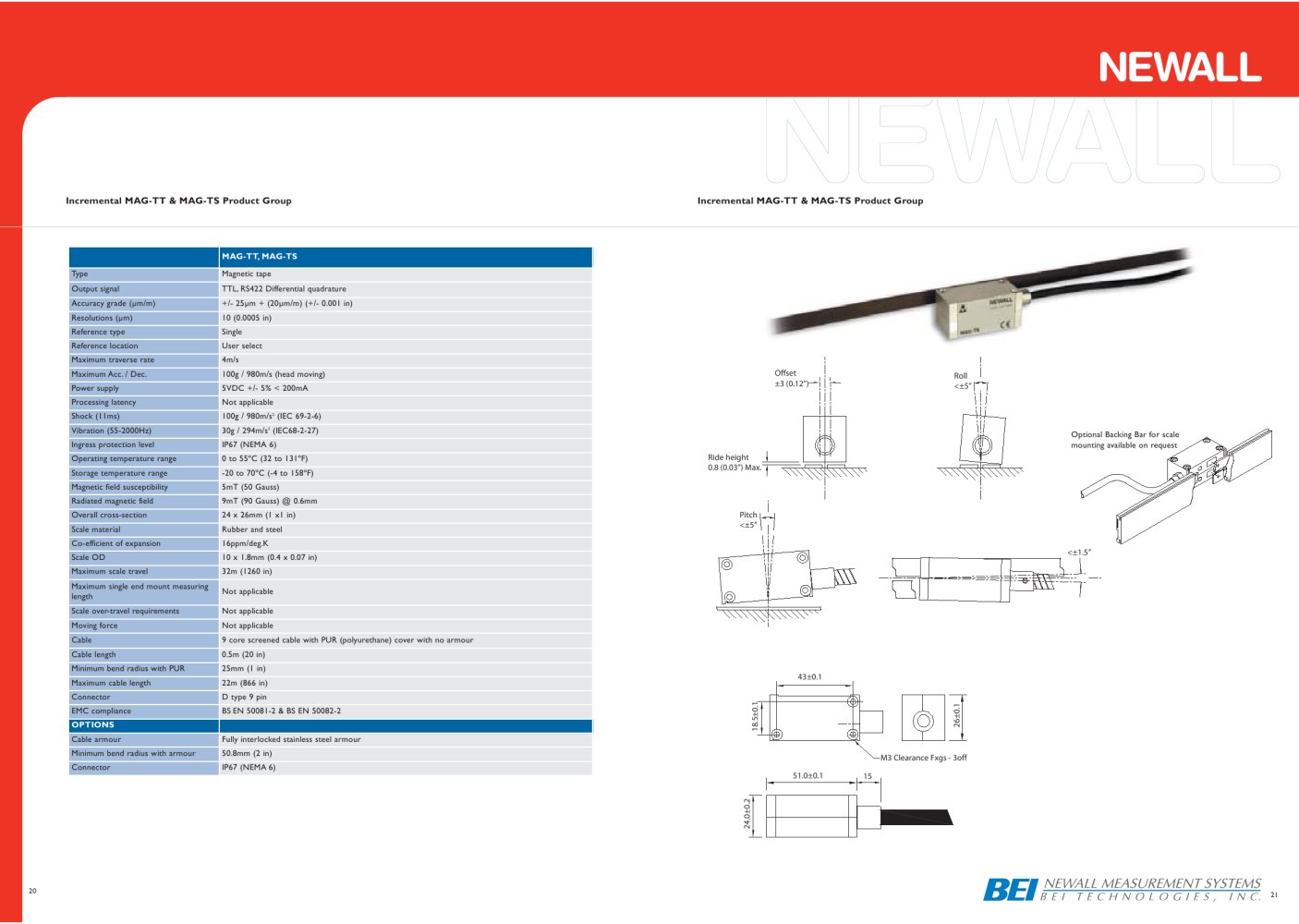

Incremental MAG-TT &MAG-TS Product GroupIncremental MAG-TT &MAG-TS Product Group
MAG-TT,MAG-TS Type Magnetic tape Output signal TTL,RS422 Differential quadrature Accuracy grade (µm/m) +/- 25µm + (20µm/m) (+/- 0.001 in) Resolutions (µm) 10 (0.0005 in) Reference type Single Reference location User select Maximum traverse rate 4m/s Maximum Acc./ Dec. 100g / 980m/s (head moving)
Offset±3 (0.12”)Roll<±5”Ride height0.8 (0.03”) Max.Pitch<±5”
43±0.1 Power supply 5VDC +/- 5% < 200mA Processing latency Not applicable Shock (11ms) 100g / 980m/s
2 (IEC 69-2-6) Vibration (55-2000Hz) 30g / 294m/s
2 (IEC68-2-27) Optional Backing Bar for scalemounting available on request Ingress protection level IP67 (NEMA 6) Operating temperature range 0 to 55ºC (32 to 131ºF) Storage temperature range -20 to 70ºC (-4 to 158ºF) Magnetic field susceptibility 5mT (50 Gauss) Radiated magnetic field 9mT (90 Gauss) @ 0.6mm Overall cross-section 24 x 26mm (1 x1 in) Scale material Rubber and steel Co-efficient of expansion 16ppm/deg.K
YAW<±1.5” Scale OD 10 x 1.8mm (0.4 x 0.07 in) Maximum scale travel 32m (1260 in) Maximum single end mount measuringlength Not applicable Scale over-travel requirements Not applicable Moving force Not applicable Cable 9 core screened cable with PUR (polyurethane) cover with no armour Cable length 0.5m (20 in) Minimum bend radius with PUR 25mm (1 in) Maximum cable length 22m (866 in) Connector D type 9 pin EMC compliance BSEN 50081-2 & BS EN 50082-2 OPTIONS
26±0.1 18.5±0.1 Cable armour Fully interlocked stainless steel armour Minimum bend radius with armour 50.8mm (2 in)
M3 Clearance Fxgs - 3off Connector IP67 (NEMA6)
1551.0±0.1 24.0±0.2 2021
