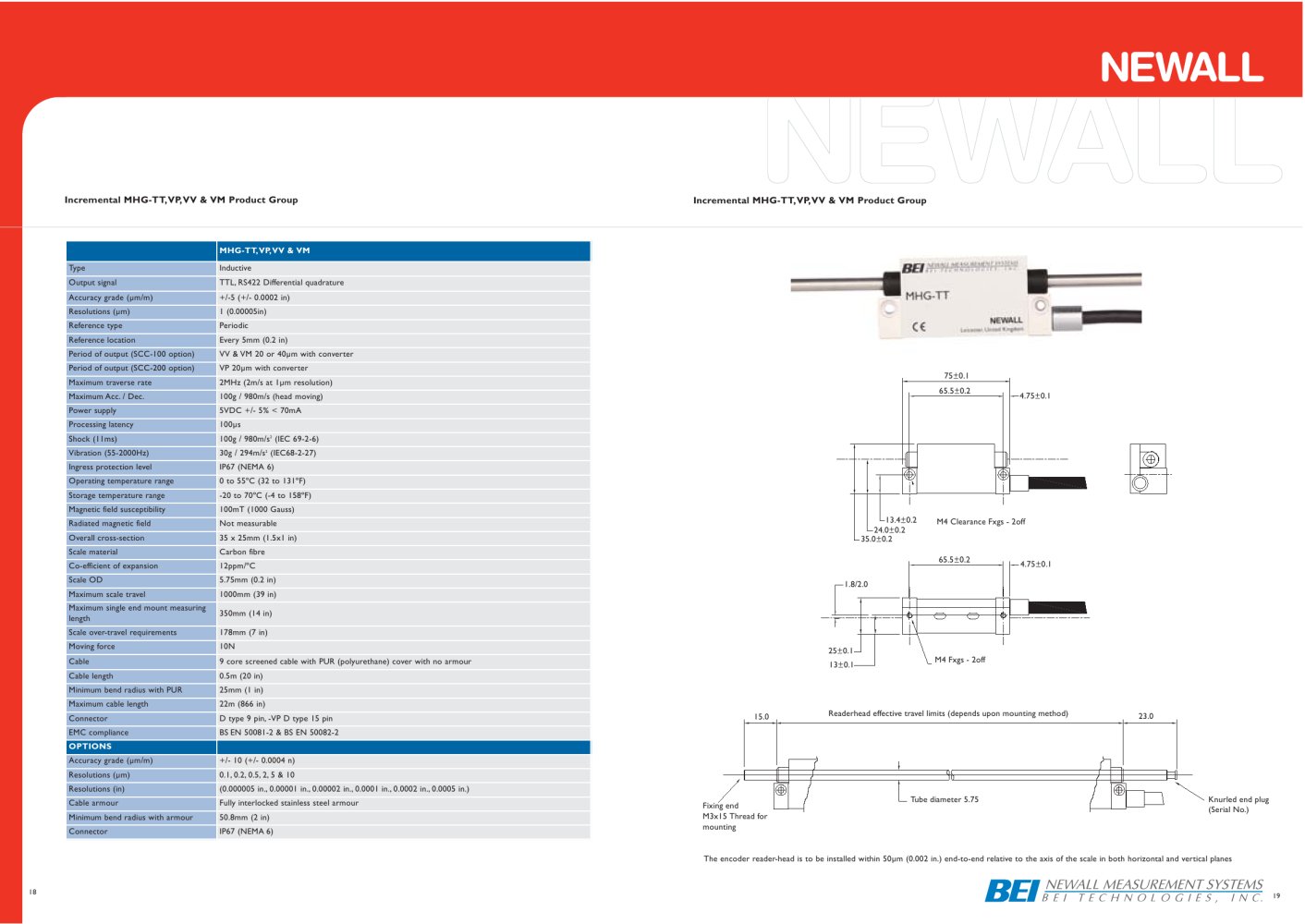

| | Incremental MHG-TT,VP,VV & VM Product Group | |
| | | |
| | | |
| | Type | Inductive | |
| | Output signal | TTL,RS422 Differential quadrature | |
| | Accuracy grade (|jm/m) | +/-5 (+/- 0.0002 in) | |
| | Resolutions (|im) | 1 (0.00005in) | |
| | Reference type | Periodic | |
| | Reference location | Every 5mm (0.2 in) | |
| | Period of output (SCC-100 option) | VV &VM 20 or 40|im with converter | |
| | Period of output (SCC-200 option) | VP 20|im with converter | |
| | Maximum traverse rate | 2MHz (2m/s at l|im resolution) | |
| | Maximum Acc./ Dec. | l00g / 980m/s (head moving) | |
| | Power supp|y | 5VDC +/- 5% < 70mA | |
| | Processing latency | l00|is | |
| | Shock (11ms) | l00g / 980m/s2 (IEC 69-2-6) | |
| | Vibration (55-2000Hz) | 30g / 294m/s2 (IEC68-2-27) | |
| | Ingress protecti°n level | IP67 (NEMA 6) | |
| | Operating temperature range | 0 to 55°C (32 to l3l°F) | |
| | Storage temperature range | -20 to 70°C (-4 to l58°F) | |
| | Magnetic field susceptibility | l00mT (l000 Gauss) | |
| | Radiated magnetic field | Not measurable | |
| | Overall cross-section | 35 x 25mm (l.5xl in) | |
| | Scale material | Carbon fibre | |
| | Co-efficient of expansion | l2ppm/°C | |
| | Scale OD | 5.75mm (0.2 in) | |
| | Maximum scale travel | l000mm (39 in) | |
| | length | 350mm (l4 in) | |
| | Scale over-travel requirements | l78mm (7 in) | |
| | Moving force | l0N | |
| | Cable | 9 core screened cable with PUR (polyurethane) cover with no armour | |
| | Cable length | 0.5m (20 in) | |
| | Minimum bend radius with PUR | 25mm (l in) | |
| | Maximum cable length | 22m (866 in) | |
| | Connector | D type 9 pin, -VP D type l5 pin | |
| | EMC compliance | BSEN 5008l-2 & BS EN 50082-2 | |
| | OPTIONS | | |
| | | +/- l0 (+/- 0.0004 n) | |
| | Resolutions (|im) | 0.l,0.2,0.5,2,5 & l0 | |
| | Resolutions (in) | (0.000005 in.,0.0000l in.,0.00002 in.,0.000l in.,0.0002 in.,0.0005 in.) | |
| | Cable armour | Fully interlocked stainless steel armour | |
| | Minimum bend radius with armour | 50.8mm (2 in) | |
| | Connector | IP67 (NEMA 6) | |
| | | |
| | | | |
