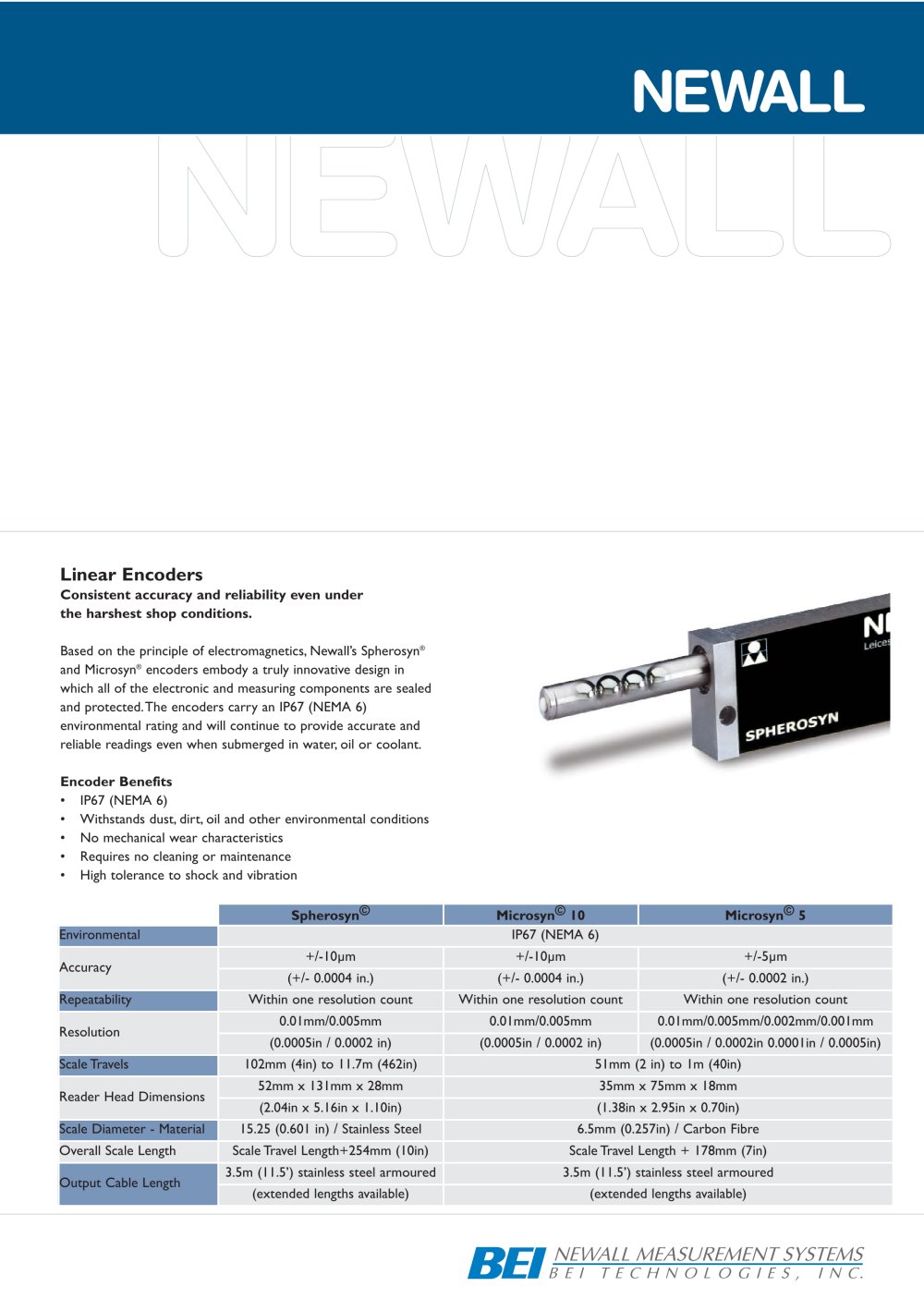

Consistent accuracy and reliability even under the harshest shop conditions. Based on the principle of electromagnetics,Newall’s Spherosyn
® and Microsyn
® industrial encoders embody a truly innovative design inwhich all of the electronic and measuring components are sealed
and protected.The encoders carry an IP67 (NEMA 6)
environmental rating and will continue to provide accurate andreliable readings even when submerged in water,oil or coolant. Encoder Benefits •IP67 (NEMA 6)•Withstands dust,dirt,oil and other environmental conditions
•No mechanical wear characteristics
•Requires no cleaning or maintenance•High tolerance to shock and vibration Spherosyn© Microsyn© 10 Microsyn© 5 Environmental IP67 (NEMA 6) +/-10µm +/-10µm +/-5µm Accuracy (+/- 0.0004 in.) (+/- 0.0004 in.) (+/- 0.0002 in.) Repeatability Within one resolution count Within one resolution count Within one resolution count 0.01mm/0.005mm 0.01mm/0.005mm 0.01mm/0.005mm/0.002mm/0.001mm Resolution (0.0005in / 0.0002 in) (0.0005in / 0.0002 in) (0.0005in / 0.0002in 0.0001in / 0.0005in) Scale Travels 102mm (4in) to 11.7m (462in) 51mm (2 in) to 1m (40in) 52mm x 131mm x 28mm 35mm x 75mm x 18mm Reader Head Dimensions (2.04in x 5.16in x 1.10in) (1.38in x 2.95in x 0.70in) Scale Diameter - Material 15.25 (0.601 in) / Stainless Steel 6.5mm (0.257in) / Carbon Fibre Overall Scale Length Scale Travel Length+254mm (10in) Scale Travel Length + 178mm (7in) 3.5m (11.5’) stainless steel armoured 3.5m (11.5’) stainless steel armoured Output Cable Length (extended lengths available) (extended lengths available)
