Topaz Digital SA 100

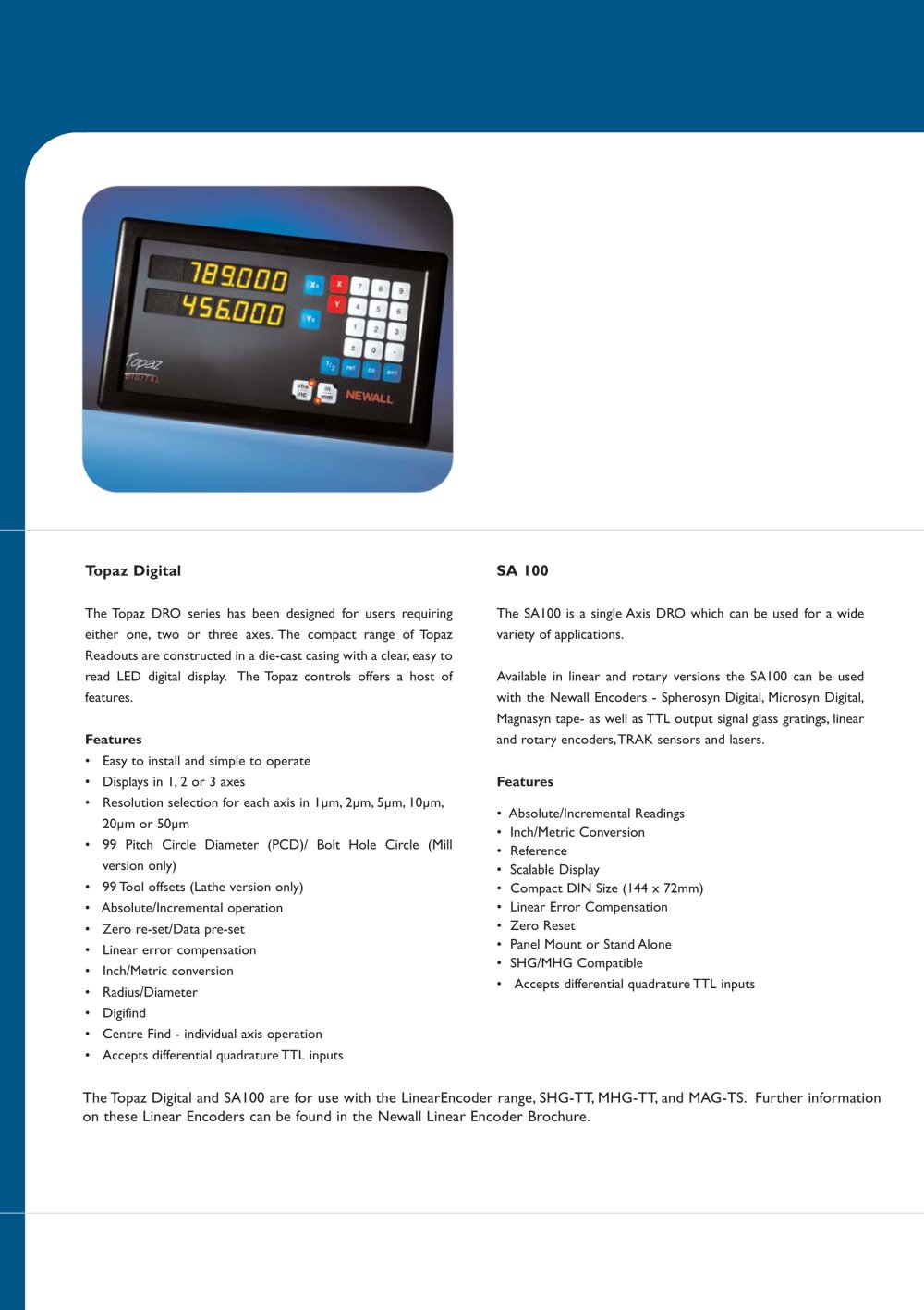

The Topaz DRO series has been designed for users requiringeither one,two or three axes.The compact range of Topaz Readouts are constructed in a die-cast casing with a clear,easy to read LED digital display.The Topaz controls offers a host of features. Features The SA100 is a single Axis DRO which can be used for a wide variety of applications.Available in linear and rotary versions the SA100 can be usedwith the Newall Encoders - Spherosyn Digital,Microsyn Digital, Magnasyn tape- as well as TTL output signal glass gratings,linear and rotary encoders,TRAK sensors and industrial lasers. • Easy to install and simple to operate • Displays in 1,2 or 3 axes • Resolution selection for each axis in 1µm,2µm,5µm,10µm,20µm or 50µm• 99 Pitch Circle Diameter (PCD)/ Bolt Hole Circle (Millversion only)• 99 Tool offsets (Lathe manufacturer version only) • Absolute/Incremental operation • Zero re-set/Data pre-set • Linear error compensation • Inch/Metric conversion • Radius/Diameter • Digifind • Centre Find - individual axis operation •Accepts differential quadrature TTL inputs Features • Absolute/Incremental Readings• Inch/Metric Conversion • Reference • Scalable Display• Compact DIN Size (144 x 72mm)• Linear Error Compensation • Zero Reset • Panel Mount or Stand Alone• SHG/MHG Compatible•Accepts differential quadrature TTL inputs

The Topaz Digital and SA100 are for use with the LinearEncoder range,SHG-TT,MHG-TT,and MAG-TS.Further informationon these Linear encoders can be found in the Newall Linear Encoder Brochure.
