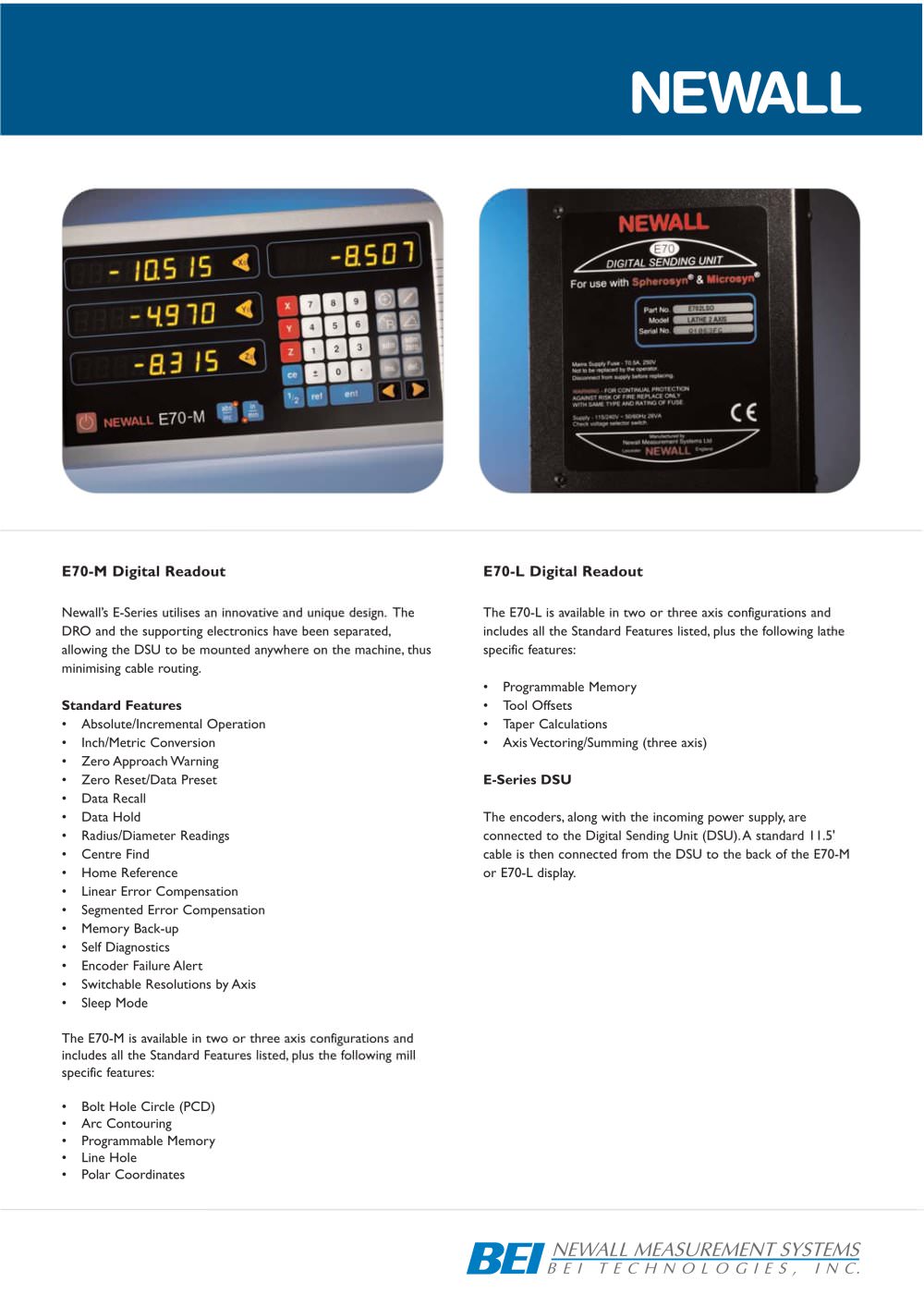

Newall’s E-Series utilises an innovative and unique design.TheDRO and the supporting electronics have been separated,
allowing the DSU to be mounted anywhere on the machine,thus
minimising cable routing. The E70-L is available in two or three axis configurations andincludes all the Standard Features listed,plus the following
lathe manufacturer
specific features:•Programmable Memory•Tool Offsets
•Taper Calculations•Axis Vectoring/Summing (three axis) Standard Features •Absolute/Incremental Operation•Inch/Metric Conversion•Zero Approach Warning •Zero Reset/Data Preset
•Data Recall•Data Hold•Radius/Diameter Readings
•Centre Find•Home Reference•Linear Error Compensation
•Segmented Error Compensation •Memory Back-up•Self Diagnostics•Encoder Failure Alert
•Switchable Resolutions by Axis
•Sleep ModeThe E70-M is available in two or three axis configurations andincludes all the Standard Features listed,plus the following
mill
specific features:•Bolt Hole Circle (PCD)•Arc Contouring
•Programmable Memory
•Line Hole
•Polar Coordinates E-Series DSU The encoders,along with the incoming power supply,areconnected to the Digital Sending Unit (DSU).A standard 11.5'cable is then connected from the DSU to the back of the E70-Mor E70-L display.
