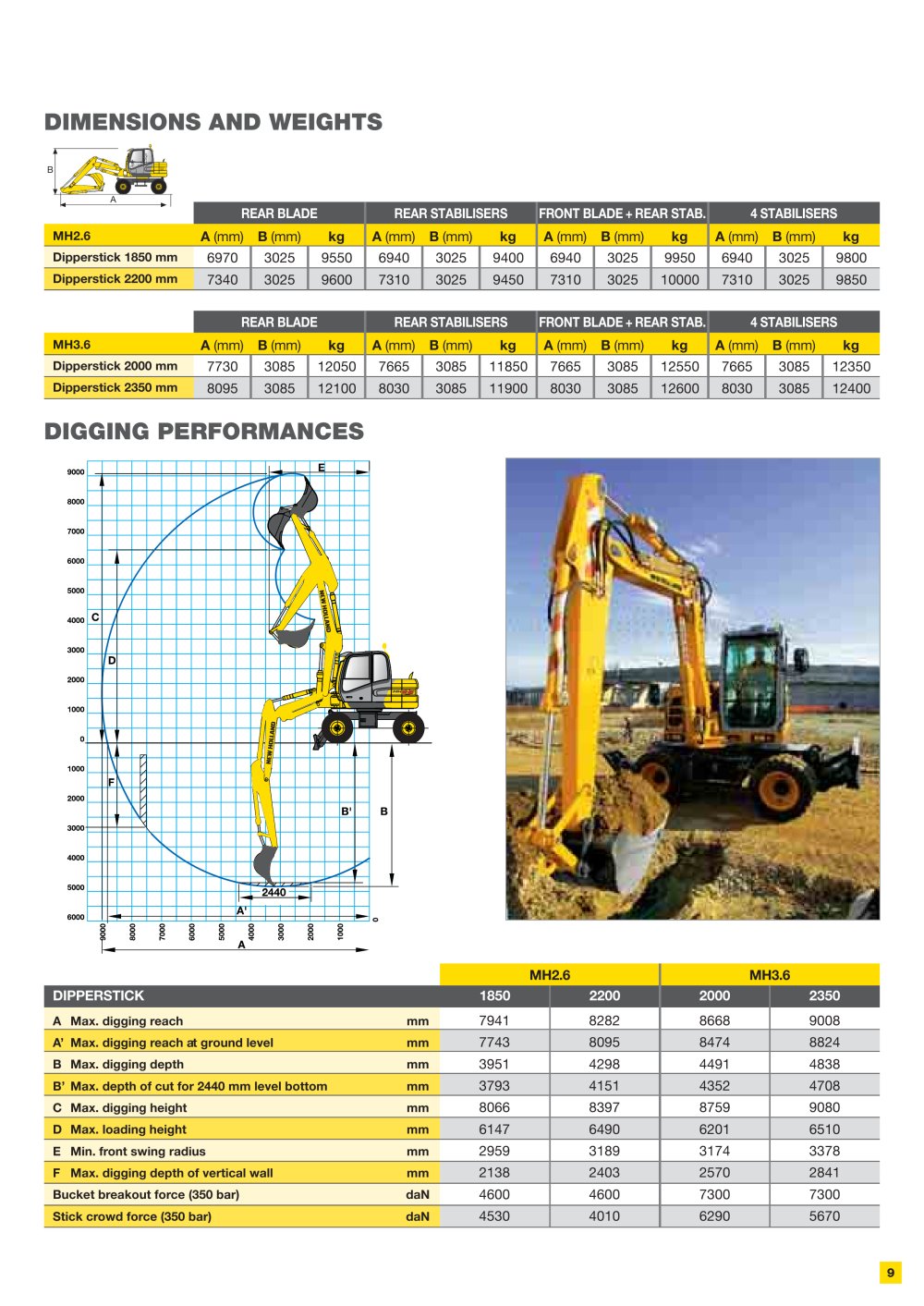

DIMENSIONS AND WEIGHTS

B

REAR BLADE

REAR STABILISERS

FRONT BLADE + REAR STAB.

4 STABILISERS


	MH2.6 A (mm) B (mm) kg				A (mm) B (mm) kg			A (mm) B (mm) kg			A (mm) B (mm) kg
	Dipperstick 1850 mm	6970	3025	9550	6940	3025	9400	6940	3025	9950	6940	3025	9800
	Dipperstick 2200 mm	7340	3025	9600	7310	3025	9450	7310	3025	10000	7310	3025	9850

		REAR BLADE			REAR STABILISERS			FRONT BLADE + REAR STAB.			4 STABILISERS
	MH3.6 A (mm) B (mm) kg				A (mm) B (mm) kg			A (mm) B (mm) kg			A (mm) B (mm) kg
	Dipperstick 2000 mm	7730	3085	12050	7665	3085 11850		7665	3085	12550	7665	3085	12350
	Dipperstick 2350 mm	8095	3085	12100	8030	3085 J 11900		8030	3085	12600	8030	3085	12400

DIGGING PERFORMANCES


			MH2.6		MH3.6
	DIPPERSTICK		1850	2200	2000	2350
	A Max. digging reach	mm	7941	8282	8668	9008
	A' Max. digging reach at ground level	mm	7743	8095	8474	8824
	B Max. digging depth	mm	3951	4298	4491	4838
	B' Max. depth of cut for 2440 mm level bottom	mm	3793	4151	4352	4708
	C Max. digging height	mm	8066	8397	8759	9080
	D Max. loading height	mm	6147	6490	6201	6510
	E Min. front swing radius	mm	2959	3189	3174	3378
	F Max. digging depth of vertical wall	mm	2138	2403	2570	2841
	Bucket breakout force (350 bar)	daN	4600	4600	7300	7300
	Stick crowd force (350 bar)	daN	4530	4010	6290	5670
