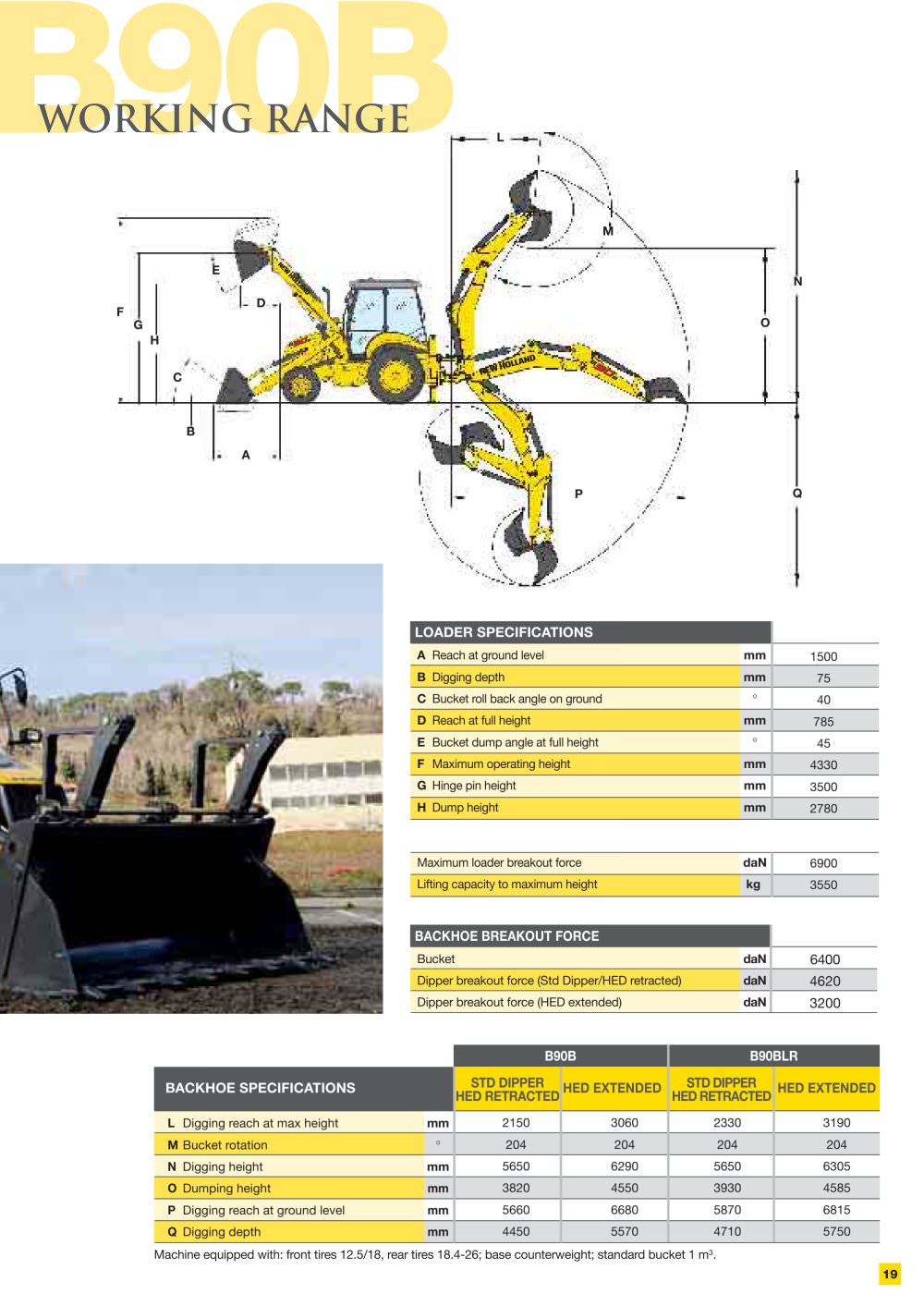

WORKING RANGE

Q


	LOADER SPECIFICATIONS
	A Reach at ground level	mm	1500
	B Digging depth	mm	75
	C Bucket roll back angle on ground	o	40
	D Reach at full height	mm	785
	E Bucket dump angle at full height	_o	45
	F Maximum operating height	mm	4330
	G Hinge pin height	mm	3500
	H Dump height	mm	2780


	Maximum loader breakout force	daN 6900
	Lifting capacity to maximum height	kg 1 3550


	BACKHOE BREAKOUT FORCE
	Bucket	daN	6400
	Dipper breakout force (Std Dipper/HED retracted)	daN	4620
	Dipper breakout force (HED extended)	daN	3200


			B90B		B90BLR
	BACKHOE SPECIFICATIONS		STD DIPPER HED RETRACTED	HED EXTENDED	STD DIPPER HED RETRACTED	HED EXTENDED
	L Digging reach at max height	mm	2150	3060	2330	3190
	M Bucket rotation	_o	204	204	204	204
	N Digging height	mm	5650	6290	5650	6305
	O Dumping height	mm	3820	4550	3930	4585
	P Digging reach at ground level	mm	5660	6680	5870	6815
	Q Digging depth	mm	4450	5570	4710	5750

Machine equipped with: front tires 12.5/18, rear tires 18.4-26; base counterweight; standard bucket 1 m³.
