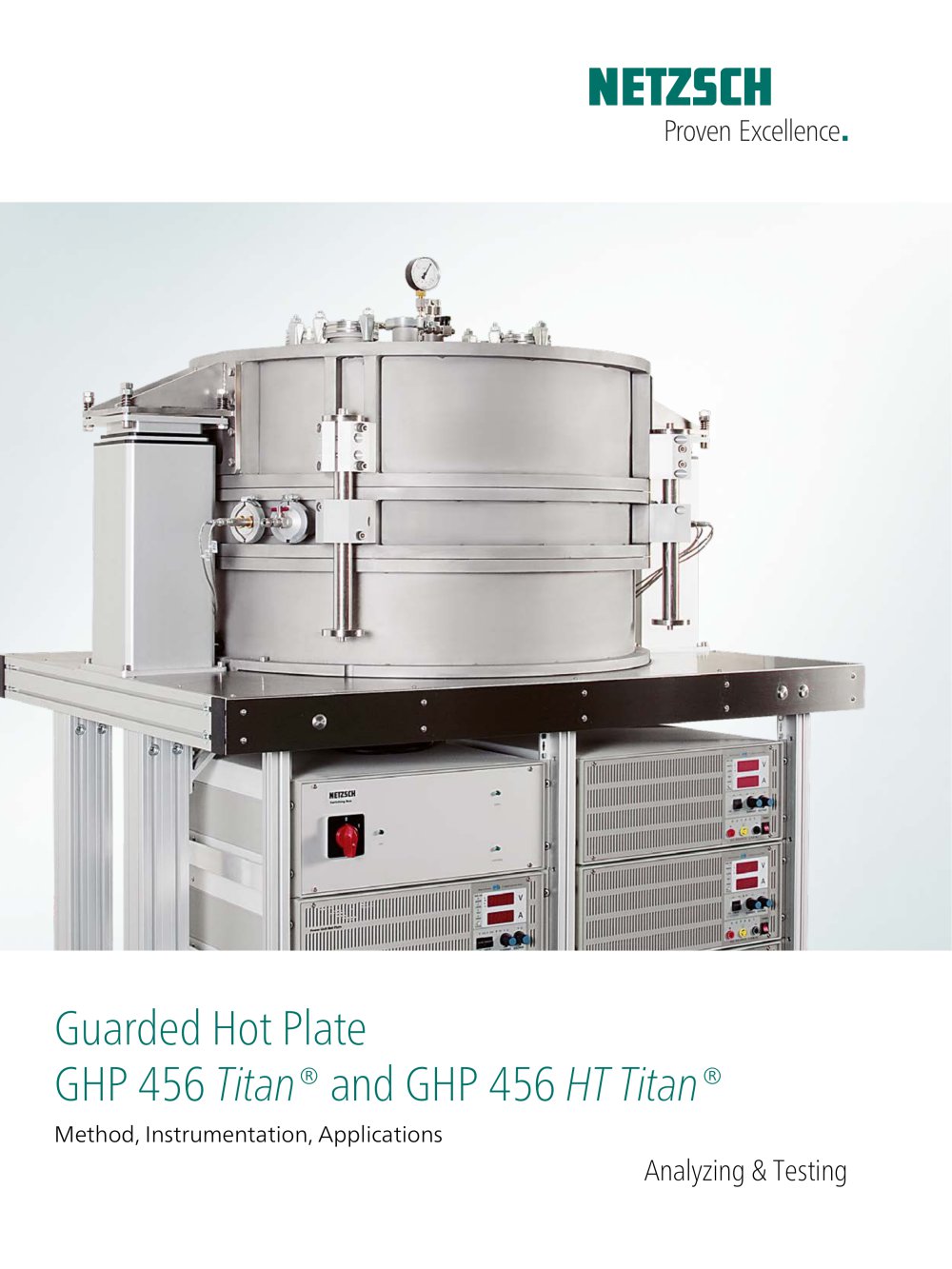

Catalogue GHP 456 Titan™

www.netzsch-thermal-analysis.com

Page

/ 2

Contact the
Manufacturer

Where to buy
this product ?

Request
a Quote

NETZSCH-Gerätebau - 2992, 2089, 131428, 164647, 140597, 29339, 68339

/ 2

See other catalogues for NETZSCH-Gerätebau

Text version of the page

Leading Thermal analysis.

GHP 456 Titan - Software

The NETZSCH GHP 456 Titan comes with a 32-bit MS⁸-Windows™ Software which combines easy operation and handling and complex control and evaluation algorithms. Multiple windows offer a fast and largely comprehensive overview of the instrument activity. The specially developed integrated digital control system fully commands all instrument components automatically (hot plate, guard ring, upper and lower cold plate and surrounding industrial furnace). This unique feature generally does not require adjustment or other user interference independent on the measurement temperature, atmosphere or thermal resistance of the sample. Of course, equilibration parameters can be adjusted any time. Results can be printed as graphs or tables or exported as ASCII-files.


				J L ■ ■ 1 J	■ - VH

I I If


	hiinilTn	lui vi'jI- *■ i :*
	hiinilTn	*ammm*
XL	jitrt FJJ it ifl	¹

■■Qui**


	*

	1............1......i	.....i......^:'~'T 1
	i i i *. i..........;......;*	: -
	i i i	! ! i
	;; :^;;;;;;;;;;;t;;;;:;	■—!---[1----!
	■-

toi» •.m ki

•JïltC. , .HUI»

GHP 456 Titan

Guarded Hot Plate System

mi m,

Hut I ivfvc^urii I 1 ! I

GHP 456 Titan - Unique Highlights:

• Motorized hoist manufacturer for the vacuum housing and plates.

• Artificial environment (sectional furnace) for reduced lateral heat loss.

• Fully compensated radial heat flow via wiring (sensors, power supply).

• High resolution temperature measurement (1 mK) using sepa rately calibrated temperature sensors (29 individual units).

• Guaranteed mechanical stability of the plates even at minimum or maximum service temperature.

• Newly developed computerized temperature control system for improved test speed.

GHP 456 Titan - Key Specifications:

• Symmetric test configuration (2 samples).

• Temperature range:

-160 ... 250°C (LT-Version).

• Temperature range:

-160 ... 700°C (HT-Version).

• Thermal conductivity range: 0 ... 2 W/(m*K).

• Vacuum-tight by design (down to 10-4 mbar).

• Inert, oxidizing atmospheres or vacuum.

• High accuracy: better than 2%. Sample thicknesses up to 100 mm.

• Plate dimensions: 300 mm (standard version)

NETZSCH-Geratebau GmbH WittelsbacherstraBe 42 95100 Selb/Bavaria Germany

Phone: +49 9287 881-0 Fax: +49 9287 881505 e-mail: at@netzsch.com
