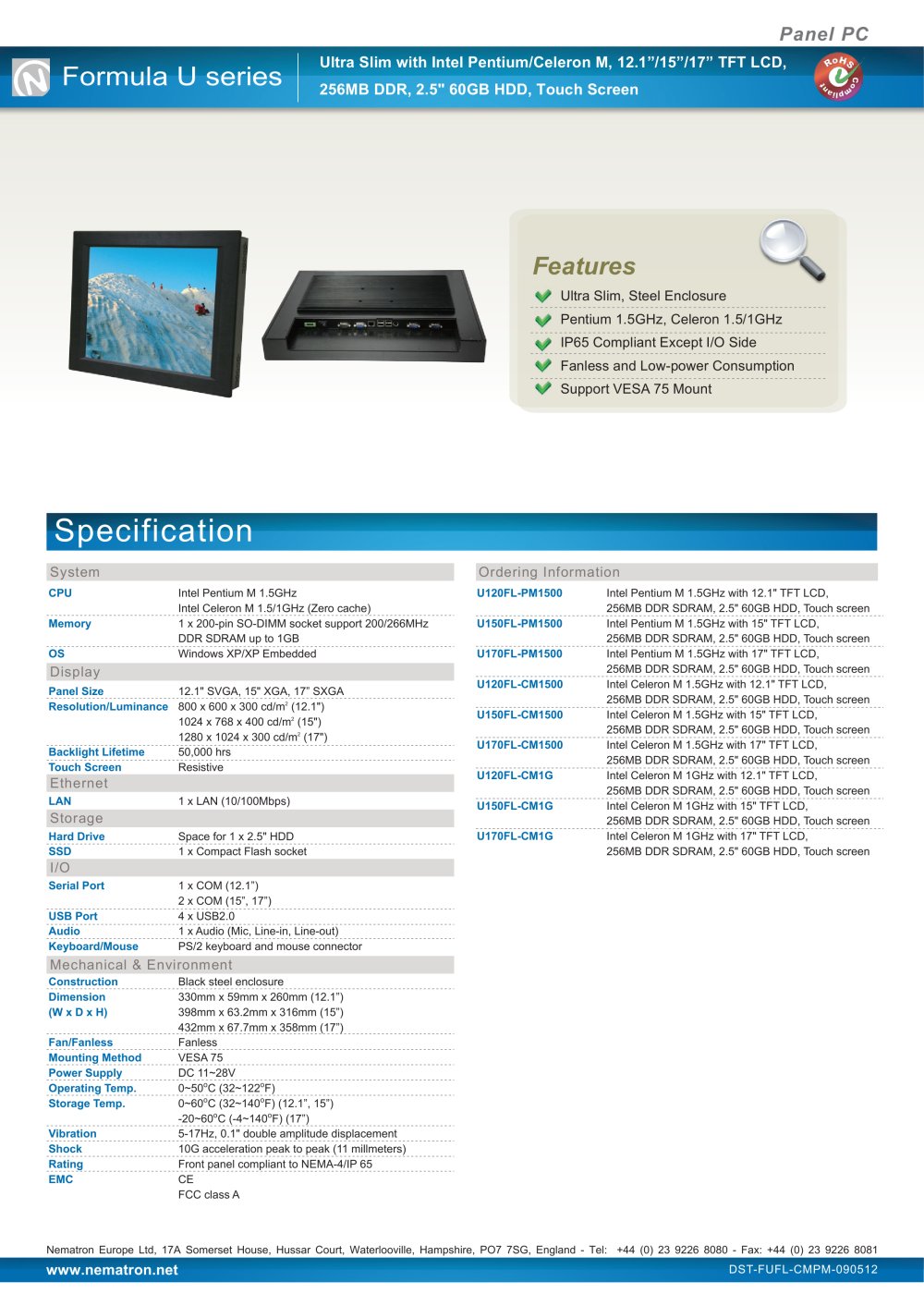

Panel PC

Ultra Slim with Intel Pentium/Celeron M, 12.1"/15"/17" TFT LCD, 256MB DDR, 2.5" 60GB HDD, Touch Screen

Formula U series

Features

V* Ultra Slim, Steel Enclosure

Pentium 1.5GHz, Celeron 1.5/1GHz

IP65 Compliant Except I/O Side \/ Fanless and Low-power Consumption V Support VESA 75 Mount


	Specification 1

	System		Ordering Information
	CPU	Intel Pentium M 1.5GHz	U120FL-PM1500 Intel Pentium M 1.5GHz with 12.1" TFT LCD,
		Intel Celeron M 1.5/1GHz (Zero cache)	256MB DDR SDRAM, 2.5" 60GB HDD, Touch screen
	Memory	1 x 200-pin SO-DIMM socket support 200/266MHz DDR SDRAM up to 1GB	U150FL-PM1500 Intel Pentium M 1.5GHz with 15" TFT LCD, 256MB DDR SDRAM, 2.5" 60GB HDD, Touch screen

OS

Windows XP/XP Embedded

U170FL-PM1500

Intel Pentium M 1.5GHz with 17" TFT LCD,

256MB DDR SDRAM, 2.5" 60GB HDD, Touch screen


	Display
	Panel Size	12.1" SVGA, 15" XGA, 17" SXGA
	Resolution/Luminance	800 x 600 x 300 cd/m² (12.1")
		1024 x 768 x 400 cd/m² (15")
		1280 x 1024 x 300 cd/m² (17")
	Backlight Lifetime	50,000 hrs
	Touch Screen	Resistive
	Ethernet
	LAN	1 x LAN (10/100Mbps)
	Storage
	Hard Drive	Space for 1 x 2.5" HDD
	SSD	1 x Compact Flash socket
	I/O
	Serial Port	1 x COM (12.1")
		2 x COM (15", 17")
	USB Port	4 x USB2.0
	Audio	1 x Audio (Mic, Line-in, Line-out)
	Keyboard/Mouse	PS/2 keyboard and mouse connector
	Mechanical & Environment
	Construction	Black steel enclosure
	Dimension	330mm x 59mm x 260mm (12.1")
	(W x D x H)	398mm x 63.2mm x 316mm (15")
		432mm x 67.7mm x 358mm (17")
	Fan/Fanless	Fanless
	Mounting Method	VESA75
	Power Supply	DC 11~28V
	Operating Temp.	0~50^oC (32~122^oF)
	Storage Temp.	0~60^oC (32~140^oF) (12.1", 15")
		-20~60^oC (-4~140^oF) (17")
	Vibration	5-17Hz, 0.1" double amplitude displacement
	Shock	10G acceleration peak to peak (11 millmeters)
	Rating	Front panel compliant to NEMA-4/IP 65
	EMC	CE
		FCC class A

U120FL-CM1500

Intel Celeron M 1.5GHz with 12.1" TFT LCD,

256MB DDR SDRAM, 2.5" 60GB HDD, Touch screen

U150FL-CM1500 Intel Celeron M 1.5GHz with 15" TFT LCD,

256MB DDR SDRAM, 2.5" 60GB HDD, Touch screen

U170FL-CM1500 Intel Celeron M 1.5GHz with 17" TFT LCD,

256MB DDR SDRAM, 2.5" 60GB HDD, Touch screen

U120FL-CM1G

Intel Celeron M 1GHz with 12.1" TFT LCD,

256MB DDR SDRAM, 2.5" 60GB HDD, Touch screen

U150FL-CM1G

Intel Celeron M 1GHz with 15" TFT LCD,

256MB DDR SDRAM, 2.5" 60GB HDD, Touch screen

U170FL-CM1G

Intel Celeron M 1GHz with 17" TFT LCD,

256MB DDR SDRAM, 2.5" 60GB HDD, Touch screen

Nematron Europe Ltd, 17A Somerset House, Hussar Court, Waterlooville, Hampshire, PO7 7SG, England - Tel: +44 (0) 23 9226 8080 - Fax: +44 (0) 23 9226 8081

www.nematron.net

DST-FUFL-CMPM-090512
