Panel PC

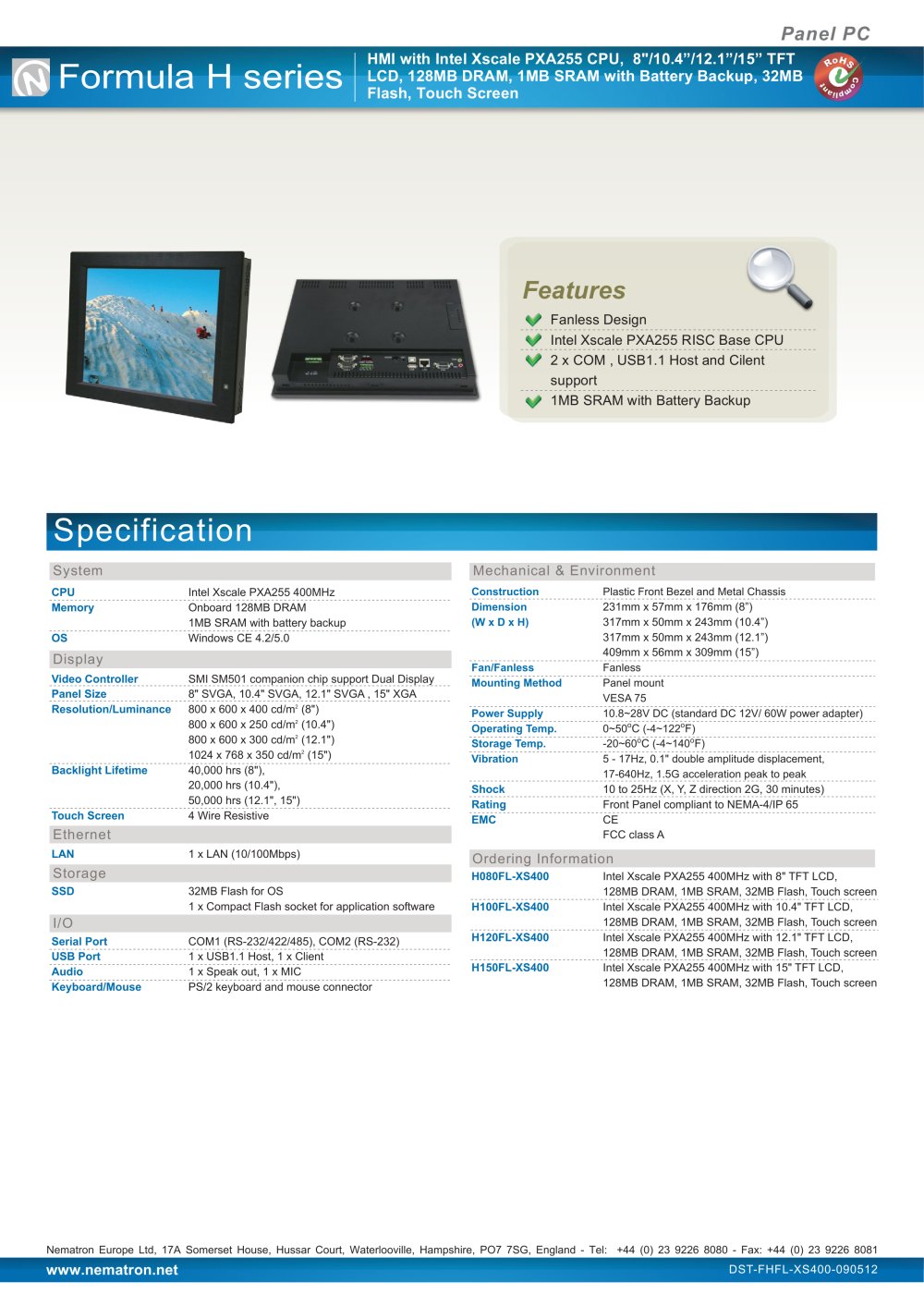

Industrial Panel PC FANLESS-CE - 11589 Formula H series

HMI with Intel Xscale PXA255 CPU, 8"/10.4”/12.1”/15” TFT LCD, 128MB DRAM, 1MB SRAM with Battery Backup, 32MB Flash, Touch Screen

Features

Fanless DesignIntel Xscale PXA255 RISC Base CPU 2 x COM , USB1.1 Host and Cilent support1MB SRAM with Battery Backup

Specification

Mechanical & EnvironmentSystem

CPUMemoryOS Intel Xscale PXA255 400MHzOnboard 128MB DRAM 1MB SRAM with battery backupWindows CE 4.2/5.0
ConstructionDimension (W x D x H)Fan/FanlessMounting MethodPower SupplyOperating Temp. Storage Temp. Vibration Plastic Front Bezel and Metal Chassis 231mm x 57mm x 176mm (8”)317mm x 50mm x 243mm (10.4”) 317mm x 50mm x 243mm (12.1”)409mm x 56mm x 309mm (15”) SMI SM501 companion chip support Dual Display8" SVGA, 10.4" SVGA, 12.1" SVGA , 15" XGA 800 x 600 x 400 cd/m

Display

FanlessPanel mount VESA 75 10.8~28V DC (standard DC 12V/ 60W power adapter) 0~50 Video ControllerPanel Size Resolution/LuminanceBacklight LifetimeTouch Screen
2 (8")800 x 600 x 250 cd/m
2 (10.4")800 x 600 x 300 cd/m
o o 2 C
(-4~122 F
) (12.1")1024 x 768 x 350 cd/m
o o 2 -20~60 C
(-4~140 F
)5 - 17Hz, 0.1" double amplitude displacement, 17-640Hz, 1.5G acceleration peak to peak (15")40,000 hrs (8"), 20,000 hrs (10.4"), 50,000 hrs (12.1", 15")4 Wire Resistive ShockRatingEMC 10 to 25Hz (X, Y, Z direction 2G, 30 minutes)Front Panel compliant to NEMA-4/IP 65 CEFCC class A

Ethernet

LAN 1 x LAN (10/100Mbps)

Ordering Information Storage

H080FL-XS400H100FL-XS400H120FL-XS400H150FL-XS400 Intel Xscale PXA255 400MHz with 8" TFT LCD, 128MB DRAM, 1MB SRAM, 32MB Flash, Touch screen Intel Xscale PXA255 400MHz with 10.4" TFT LCD, 128MB DRAM, 1MB SRAM, 32MB Flash, Touch screenIntel Xscale PXA255 400MHz with 12.1" TFT LCD, 128MB DRAM, 1MB SRAM, 32MB Flash, Touch screen Intel Xscale PXA255 400MHz with 15" TFT LCD, 128MB DRAM, 1MB SRAM, 32MB Flash, Touch screen SSD 32MB Flash for OS1 x Compact Flash socket for application software COM1 (RS-232/422/485), COM2 (RS-232)1 x USB1.1 Host, 1 x Client 1 x Speak out, 1 x MIC PS/2 keyboard and mouse connector

I/O

Serial PortUSB PortAudio Keyboard/Mouse
Nematron Europe Ltd, 17A Somerset House, Hussar Court, Waterlooville, Hampshire, PO7 7SG, England - Tel: +44 (0) 23 9226 8080 - Fax: +44 (0) 23 9226 8081

www.nematron.net

DST-FHFL-XS400-090512
