Panel PC

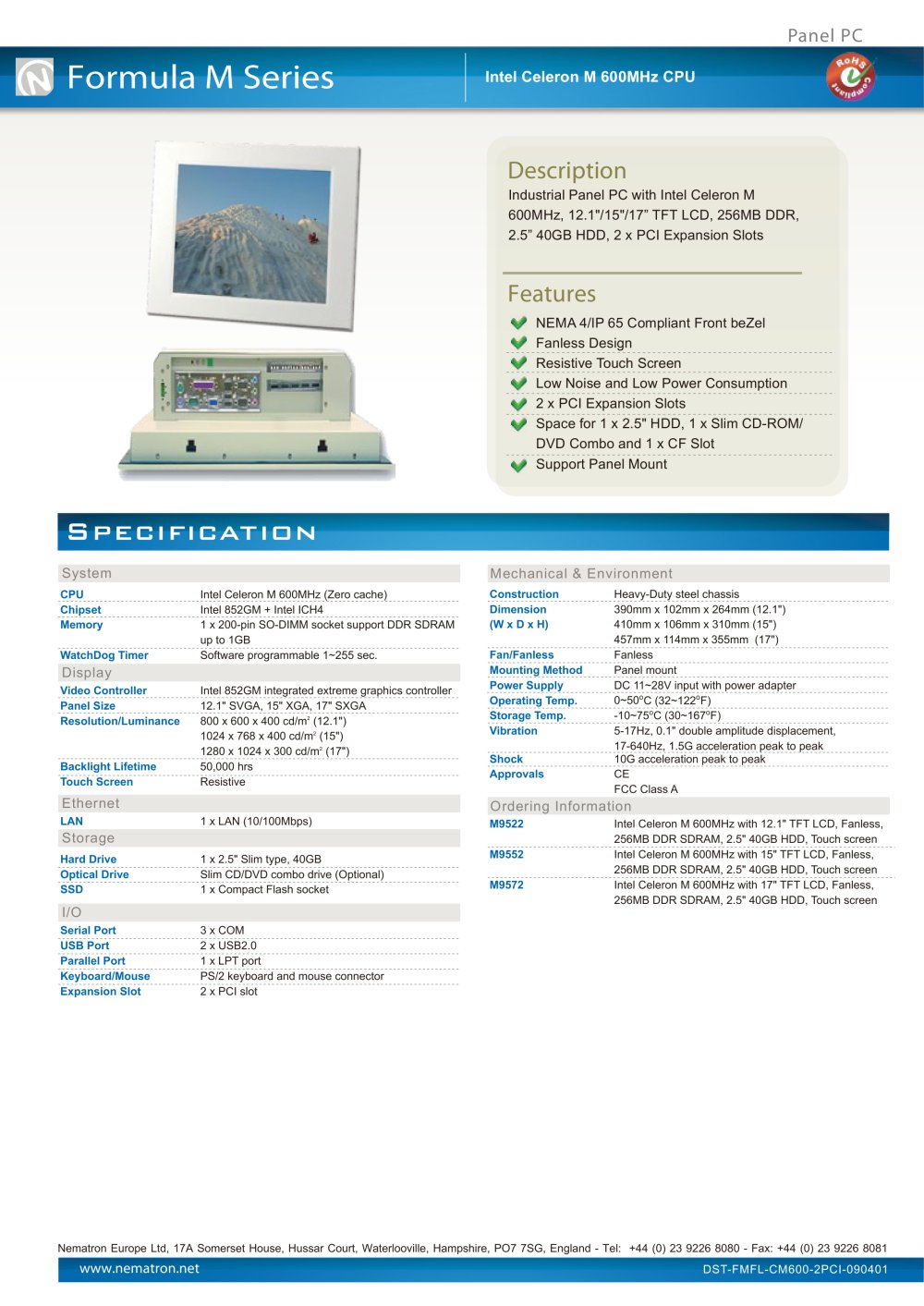

Industrial Panel PC FANLESS-CE - 11589 Formula M Series

Intel Celeron M 600MHz CPU

FeaturesDescription

NEMA 4/IP 65 Compliant Front beZel Fanless Design Resistive Touch Screen Low Noise and Low Power Consumption 2 x PCI Expansion Slots Space for 1 x 2.5" HDD, 1 x Slim CD-ROM/ DVD Combo and 1 x CF Slot Support Panel Mount Industrial Panel PC with Intel Celeron M 600MHz, 12.1"/15"/17” TFT LCD, 256MB DDR, 2.5” 40GB HDD, 2 x PCI Expansion Slots

Heavy-Duty steel chassis390mm x 102mm x 264mm (12.1")410mm x 106mm x 310mm (15") 457mm x 114mm x 355mm (17") Fanless Panel mountDC 11~28V input with power adapter0~50

Specification

System

Intel Celeron M 600MHz (Zero cache)Intel 852GM + Intel ICH4 1 x 200-pin SO-DIMM socket support DDR SDRAM up to 1GBSoftware programmable 1~255 sec.

Mechanical & Environment

CPUChipset MemoryWatchDog Timer Construction Dimension (W x D x H)Fan/FanlessMounting MethodPower Supply Operating Temp. Storage Temp. Vibration

Display

Video ControllerPanel SizeResolution/LuminanceBacklight LifetimeTouch Screen Intel 852GM integrated extreme graphics controller12.1" SVGA, 15" XGA, 17" SXGA800 x 600 x 400 cd/m ShockApprovals 10G acceleration peak to peakCEFCC Class A
o C (32~122
o F)-10~75
2 o o (12.1")1024 x 768 x 400 cd/m C (30~167 F)5-17Hz, 0.1" double amplitude displacement, 17-640Hz, 1.5G acceleration peak to peak
2 (15")1280 x 1024 x 300 cd/m
2 (17")50,000 hrsResistive

Ethernet Ordering Information

LAN 1 x LAN (10/100Mbps) M9522M9552M9572 Intel Celeron M 600MHz with 12.1" TFT LCD, Fanless, 256MB DDR SDRAM, 2.5" 40GB HDD, Touch screen Intel Celeron M 600MHz with 15" TFT LCD, Fanless, 256MB DDR SDRAM, 2.5" 40GB HDD, Touch screenIntel Celeron M 600MHz with 17" TFT LCD, Fanless, 256MB DDR SDRAM, 2.5" 40GB HDD, Touch screen

Storage

1 x 2.5" Slim type, 40GBSlim CD/DVD combo drive (Optional) 1 x Compact Flash socket Hard DriveOptical Drive SSD 3 x COM2 x USB2.0 1 x LPT portPS/2 keyboard and mouse connector2 x PCI slot

I/O

Serial Port USB Port Parallel PortKeyboard/MouseExpansion Slot Nematron Europe Ltd, 17A Somerset House, Hussar Court, Waterlooville, Hampshire, PO7 7SG, England - Tel: +44 (0) 23 9226 8080 - Fax: +44 (0) 23 9226 8081

www.nematron.net

DST-FMFL-CM600-2PCI-090401
