| 53 Nematron | ||||
| | ||||

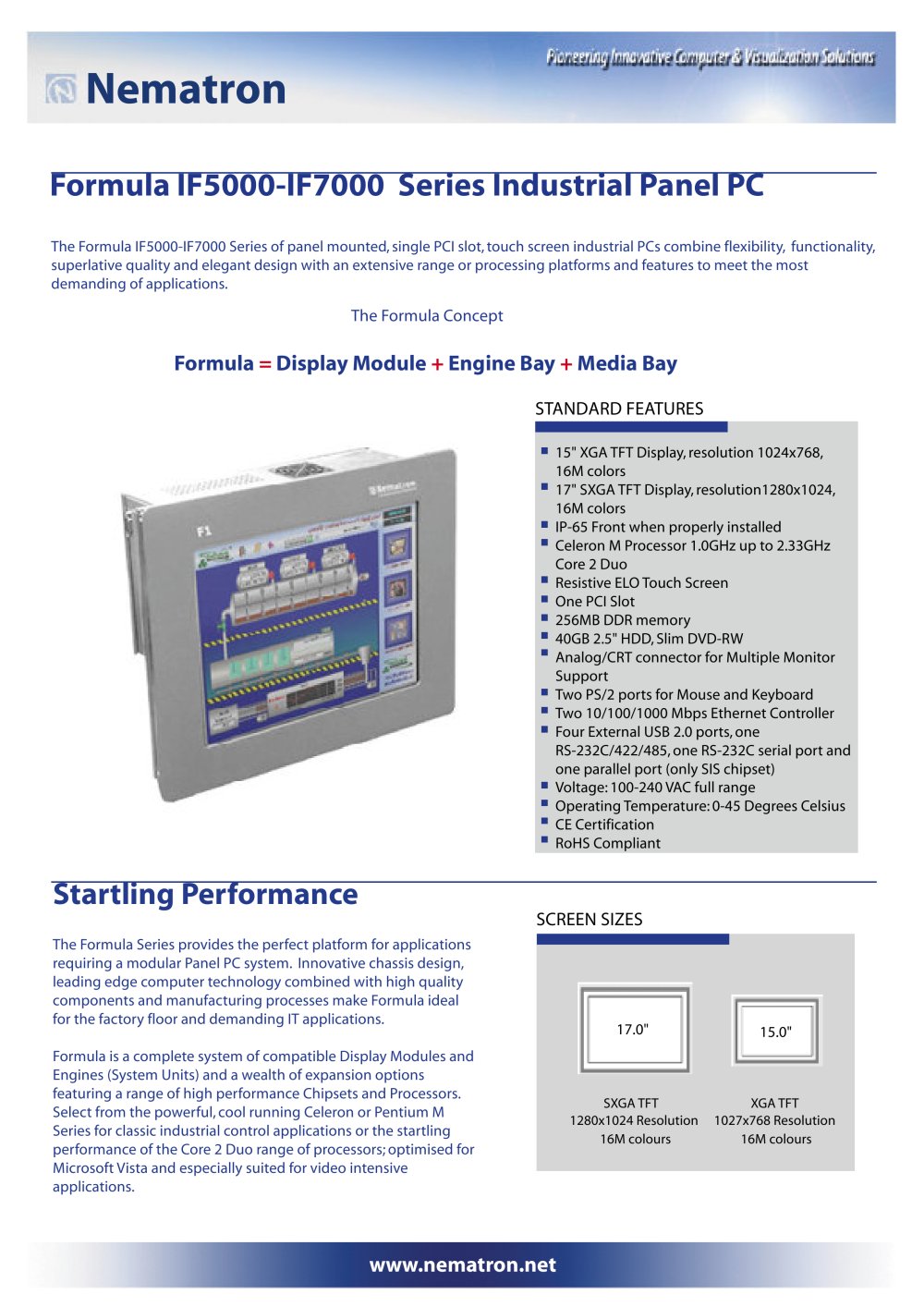

| Formula IF5000-IF7000 Series Industrial Panel PC | ||||
| | ||||
| The Formula IF5000-IF7000 Series of panel mounted, single PCI slot, touch screen industrial PCs combine flexibility, functionality, superlative quality and elegant design with an extensive range or processing platforms and features to meet the most demanding of applications. The Formula Concept Formula = Display Module + Engine Bay + Media Bay STANDARD FEATURES | ||||
| | ||||
| 15" XGATFT Display, resolution 1024x768, 16M colors 17" SXGA TFT Display, resolution1280x1024, 16M colors IP-65 Front when properly installed Celeron M Processor 1.0GHz up to 2.33GHz Core2Duo Resistive ELO Touch Screen One PCI Slot 256MB DDR memory 40GB 2.5" HDD, Slim DVD-RW Analog/CRT connector for Multiple Monitor Support Two PS/2 ports for Mouse and Keyboard Two 10/100/1000 Mbps Ethernet Controller Four External USB 2.0 ports,one RS-232C/422/485,one RS-232C serial port and one parallel port (only SIS chipset) Voltage: 100-240 VAC full range Operating Temperature: 0-45 Degrees Celsius CE Certification RoHS Compliant | ||||
| | ||||
| Startling Performance SCREEN SIZES The Formula Series provides the perfect platform for applications requiring a modular Panel PC system. Innovative chassis design, leading edge computer technology combined with high quality components and manufacturing processes make Formula ideal for the factory floor and demanding IT applications. Formula is a complete system of compatible Display Modules and Engines (System Units) and a wealth of expansion options featuring a range of high performance Chipsets and Processors. Sxgatft XGATFT Select from the powerful, cool running Celeron or Pentium M ^-..n, , „. -,,0 „ . „. 1280x1024 Resolution 1027x768 Resolution Series for classic industrial control applications or the startling ^ M 16M colours 16M colours performance of the Core 2 Duo range of processors; optimised for Microsoft Vista and especially suited for video intensive applications. | ||||
| | ||||
| | www.nematron.net | | ||
| | ||||
