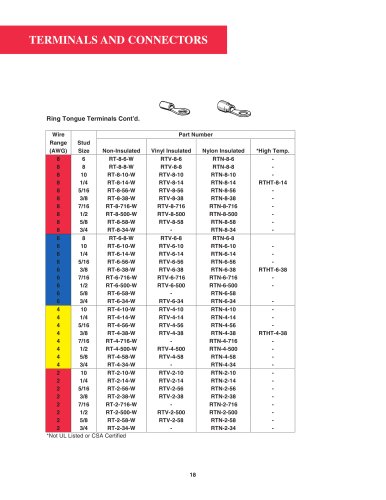

rERMINALS AND CONNECTORS Ring Tongue Terminais Cont'd. Wire Part N Range Stud (AWG) Size Non-Insulated Vinyl Insulated 8 6 RT-8-6-W RTV-8-6 8 8 RT-8-8-W RTV-8-8 8 10 RT-8-10-W RTV-8-10 8 1/4 RT-8-14-W RTV-8-14 8 5/16 RT-8-56-W RTV-8-56 8 3/8 RT-8-38-W RTV-8-38 8 7/16 RT-8-716-W RTV-8-716 8 1/2 RT-8-500-W RTV-8-500 8 5/8 RT-8-58-W RTV-8-58 8 3/4 RT-8-34-W - 6 8 RT-6-8-W RTV-6-8 6 10 RT-6-10-W RTV-6-10 6 1/4 RT-6-14-W RTV-6-14 6 5/16 RT-6-56-W RTV-6-56 6 3/8 RT-6-38-W RTV-6-38 6 7/16 RT-6-716-W RTV-6-716 6 1/2 RT-6-500-W RTV-6-500 6 5/8 RT-6-58-W - 6 3/4 RT-6-34-W RTV-6-34 4 10 RT-4-10-W RTV-4-10 4 1/4 RT-4-14-W RTV-4-14 4 5/16 RT-4-56-W RTV-4-56 4 3/8 RT-4-38-W RTV-4-38 4 7/16 RT-4-716-W - 4 1/2 RT-4-500-W RTV-4-500 4 5/8 RT-4-58-W RTV-4-58 4 3/4 RT-4-34-W - 2 10 RT-2-10-W RTV-2-10 2 1/4 RT-2-14-W RTV-2-14 2 5/16 RT-2-56-W RTV-2-56 2 3/8 RT-2-38-W RTV-2-38 2 7/16 RT-2-716-W - 2 1/2 RT-2-500-W RTV-2-500 2 5/8 RT-2-58-W RTV-2-58 2 3/4 RT-2-34-W - Nylon Insulated *High Temp. RTN-8-6 RTN-8-8 RTN-8-10 RTN-8-14 RTHT-8-14 RTN-8-56-RTN-8-38 RTN-8-716 RTN-8-500 RTN-8-58 RTN-8-34 RTN-6-8 RTN-6-10 RTN-6-14-RTN-6-56-RTN-6-38 RTHT-6-38 RTN-6-716 RTN-6-500 RTN-6-58 RTN-6-34 RTN-4-10-RTN-4-14-RTN-4-56-RTN-4-38 RTHT-4-38 RTN-4-716 RTN-4-500 RTN-4-58 | - | RTN-4-34 RTN-2-10 | - RTN-2-14-RTN-2-56-RTN-2-38-RTN-2-716 RTN-2-500 RTN-2-58 | - | RTN-2-34 *Not UL Listed or CSA Certified 18
