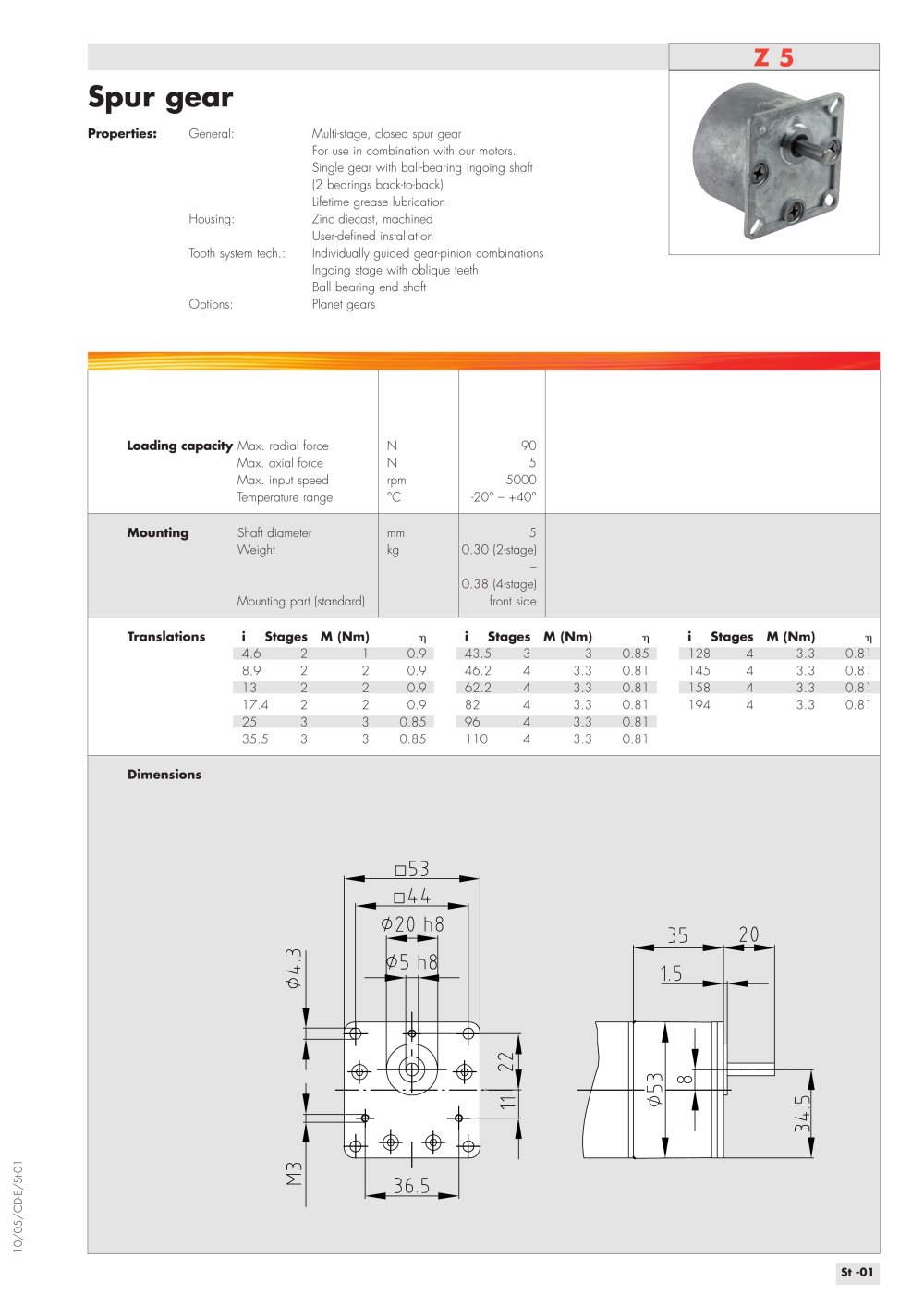

Spur gear - 26816 Spur gear

Properties: General:Multi-stage, closed spur gearFor use in combination with our motors. Single gear with ball-bearing ingoing shaft (2 bearings back-to-back) Lifetime grease lubricationHousing:Zinc diecast, machinedUser-defined installationTooth system tech.:Individually guided gear-pinion combinationsIngoing stage with oblique teeth Ball bearing end shaft Options:Planet gears Loading capacity Max. radial forceN90Max. axial forceN5 Max. input speedrpm5000 Temperature range°C-20°– +40° Mounting Shaft diametermm5Weightkg0.30 (2-stage) – 0.38 (4-stage)Mounting part (standard)front side iStagesM (Nm) iStagesM (Nm) TranslationsiStagesM (Nm) 4.6210.98.9220.9 43.5330.8546.243.30.81 12843.30.8114543.30.81 13220.9 17.4220.9 62.243.30.81 8243.30.81 15843.30.81 19443.30.81 25330.85 35.5330.85 9643.30.81 11043.30.81 Dimensions
10/05/CD-E/St-01 St -01
