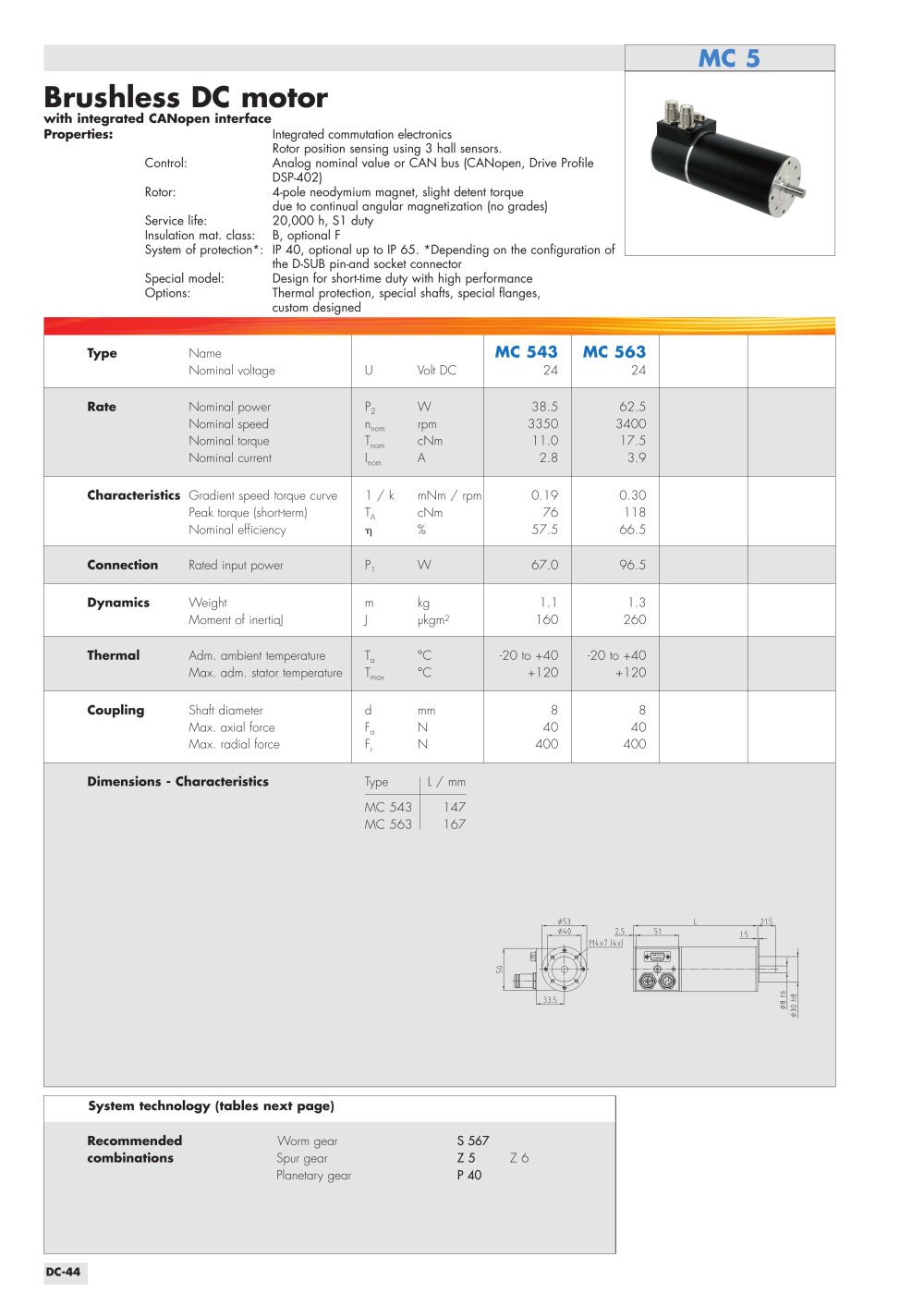

MC 5

MC motors - 26816 Brushless DC motor

with integrated CANopen interfaceProperties: Integrated commutation electronicsRotor position sensing using 3 hall sensors. Control: Analog nominal value or CAN bus (CANopen, Drive ProfileDSP-402)Rotor:4-pole neodymium magnet, slight detent torquedue to continual angular magnetization (no grades)Service life:20,000 h, S1 dutyInsulation mat. class:B, optional FSystem of protection*:IP 40, optional up to IP 65. *Depending on the configuration ofthe D-SUB pin-and socket connectorSpecial model:Design for short-time duty with high performance Options:Thermal protection, special shafts, special flanges, custom designed Type Name

MC 543MC 563

Nominal voltageUVolt DC2424 Rate Nominal powerP
2 W38.562.5Nominal speedn
nom rpm33503400Nominal torqueT
nom cNm11.017.5Nominal currentI
nom A2.83.9 Characteristics Gradient speed torque curve1 / kmNm / rpm0.190.30Peak torque (short-term)T
A cNm76118Nominal efficiency %57.566.5 Connection Rated input powerP
1 W67.096.5 Dynamics Weightmkg1.11.3Moment of inertiaJJµkgm
2 160260 Thermal Adm. ambient temperatureT
a °C-20 to +40-20 to +40Max. adm. stator temperatureT
max °C+120+120 Coupling Shaft diameterdmm88Max. axial forceF
a N4040Max. radial forceF
r N400400 Dimensions - Characteristics TypeL / mmMC 543 147MC 563 167 System technology (tables next page) Recommended Worm gear S 567 combinations Spur gear Z 5 Z 6Planetary gear P 40
DC-44 DC-44
