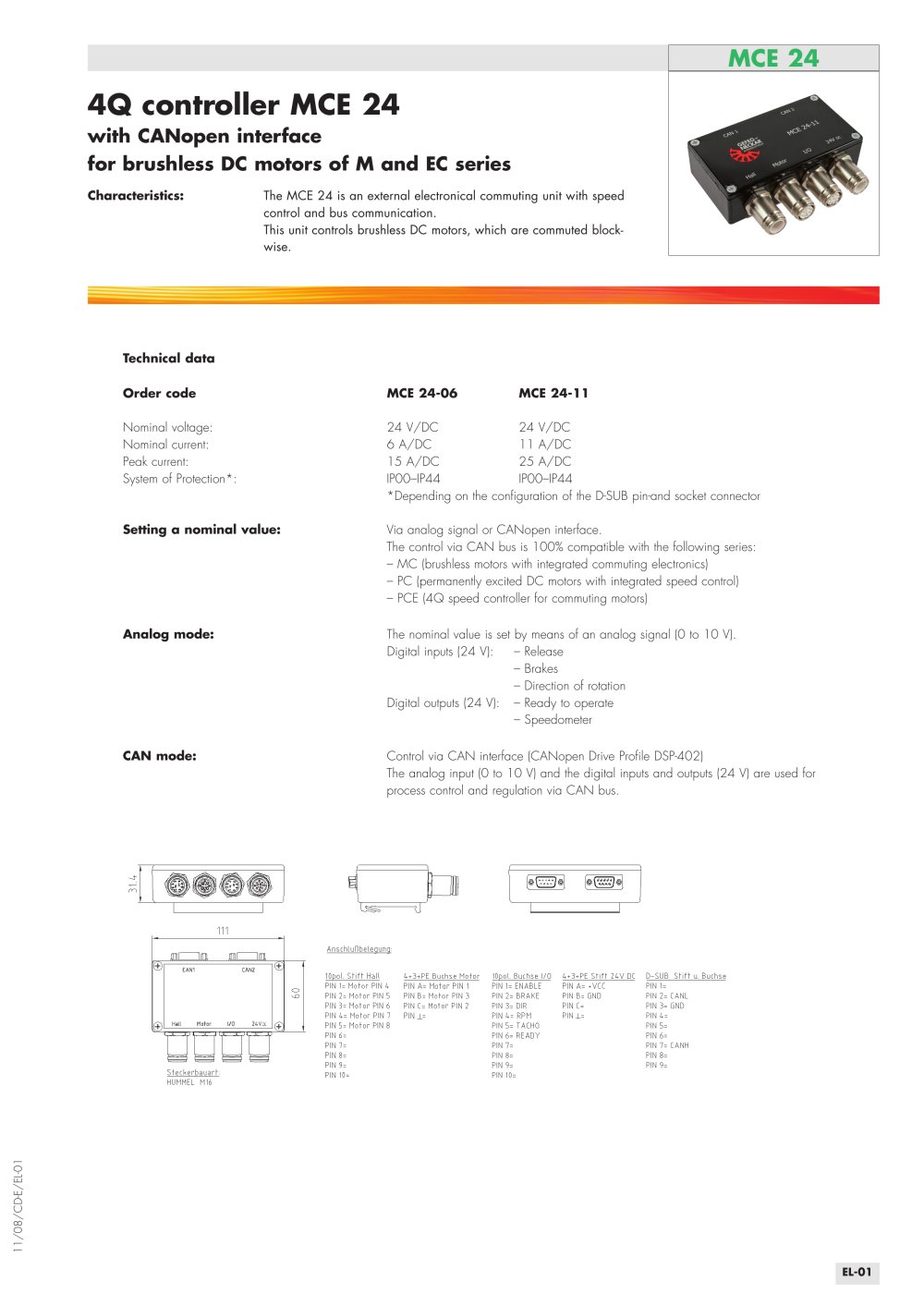

MCE 24
|
||||||
|
|
||||||
 |
||||||
|
Characteristics:
|
The MCE 24 is an external electronical commuting unit with speed control and bus communication.
This unit controls brushless DC motors, which are commuted block-wise.
|
|||||
|
|
||||||
|
Technical data
Order code
Nominal voltage: Nominal current: Peak current: System of Protection*:
Setting a nominal value:
|
MCE 24-06
24 V/DC 6 A/DC 15 A/DC IP00-IP44
|
MCE 24-11
24 V/DC 11 A/DC
25 A/DC
IP0C0-IP44
|
||||
|
*Depending on the configuration of the D-SUB pin-and socket connector Via analog signal or CANopen interface.
The control via CAN bus is 100% compatible with the following series:
- MC (brushless motors with integrated commuting electronics)
- PC (permanently excited DC motors with integrated speed control)
- PCE (4Q speed controller for commuting motors)
The nominal value is set by means of an analog signal (0 to 10 V). Digital inputs (24 V): - Release
- Brakes
- Direction of rotation Digital outputs (24 V): - Ready to operate
- Speedometer
Control via CAN interface (CANopen Drive Profile DSP-402)
The analog input (0 to 10 V) and the digital inputs and outputs (24 V) are used for process control and regulation via CAN bus.
|
||||||
|
Analog mode:
|
||||||
|
CAN mode:
|
||||||
|
|
||||||
 |
||||||
|
3 =
|
||||||
|
|
||||||
|
EL-01
|
||||||
|
|
||||||
