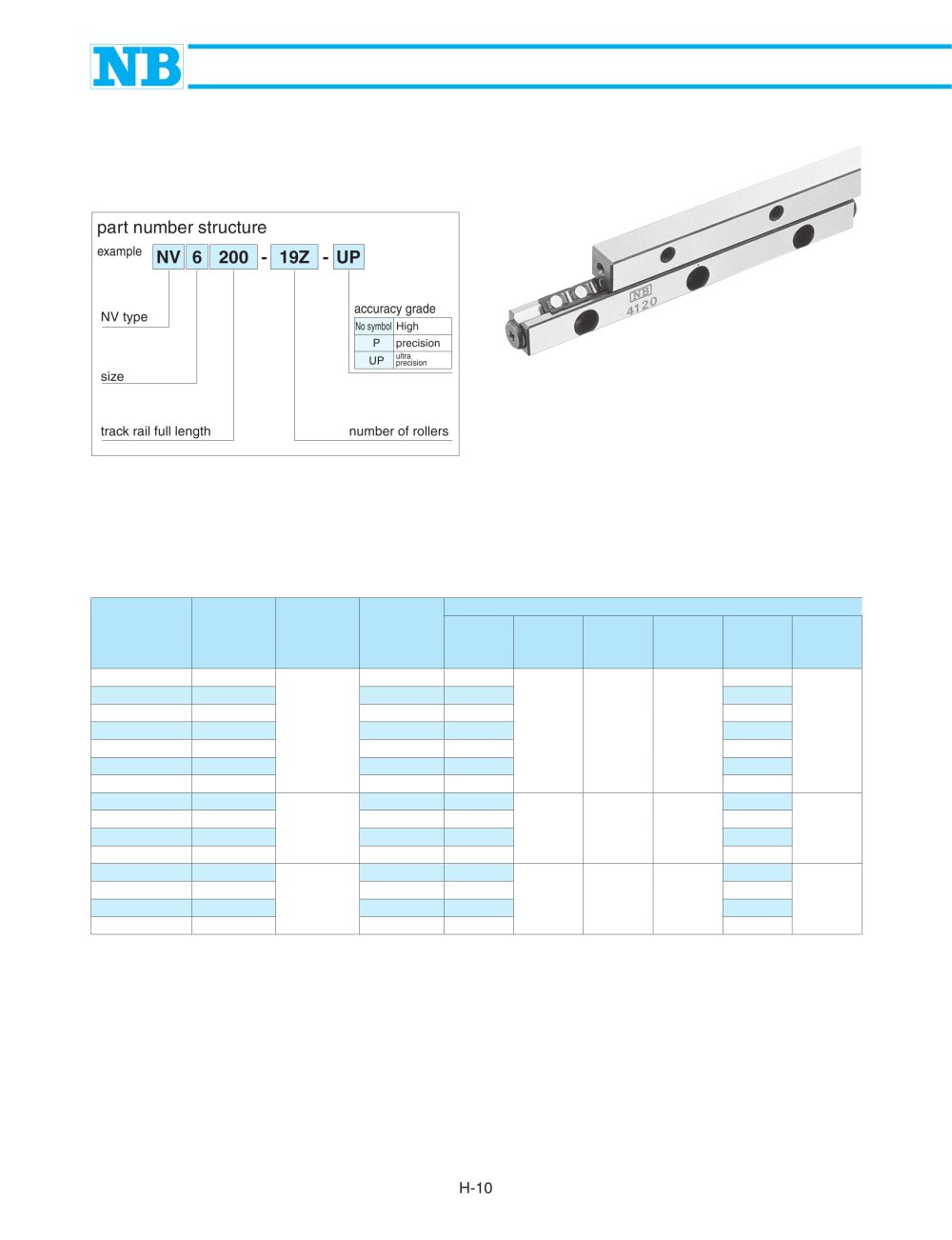

	part number	stroke ST mm	roller diameter D mm	number of rollers Z
	part number	stroke ST mm	roller diameter D mm	number of rollers Z	L mm	A mm	B mm	C mm	MxP mm	N mm
	NV6100- 9Z	63	6	9	100	31	15	15.15	1x50	25
	NV6150-15Z	85		15	150				2 x 50
	NV6200-19Z	135		19	200				3 x 50
	NV6250-25Z	158		25	250				4 x 50
	NV6300-31Z	180		31	300				5 x 50
	NV6350-35Z	230		35	350				6 x 50
	NV6400-39Z	275		39	400				7 x 50
	NV9200-13Z	120	⁹	13	200	44	22	21.5	1 x 100	50
	NV9300-21Z	170		21	300				2 x 100
	NV9400-29Z	220		29	400				3 x 100
	NV9500-35Z	300		35	500				4 x 100
	NV12300-15Z	180	12	15	300	58	28	28.5	2 x 100	50
	NV12400-21Z	230		21	400				3 x 100
	NV12500-27Z	280		27	500				4 x 100
	NV12600-31Z	380		31	600				5 x 100

The basic static load rating is the value at the center of the stroke.

H-10
