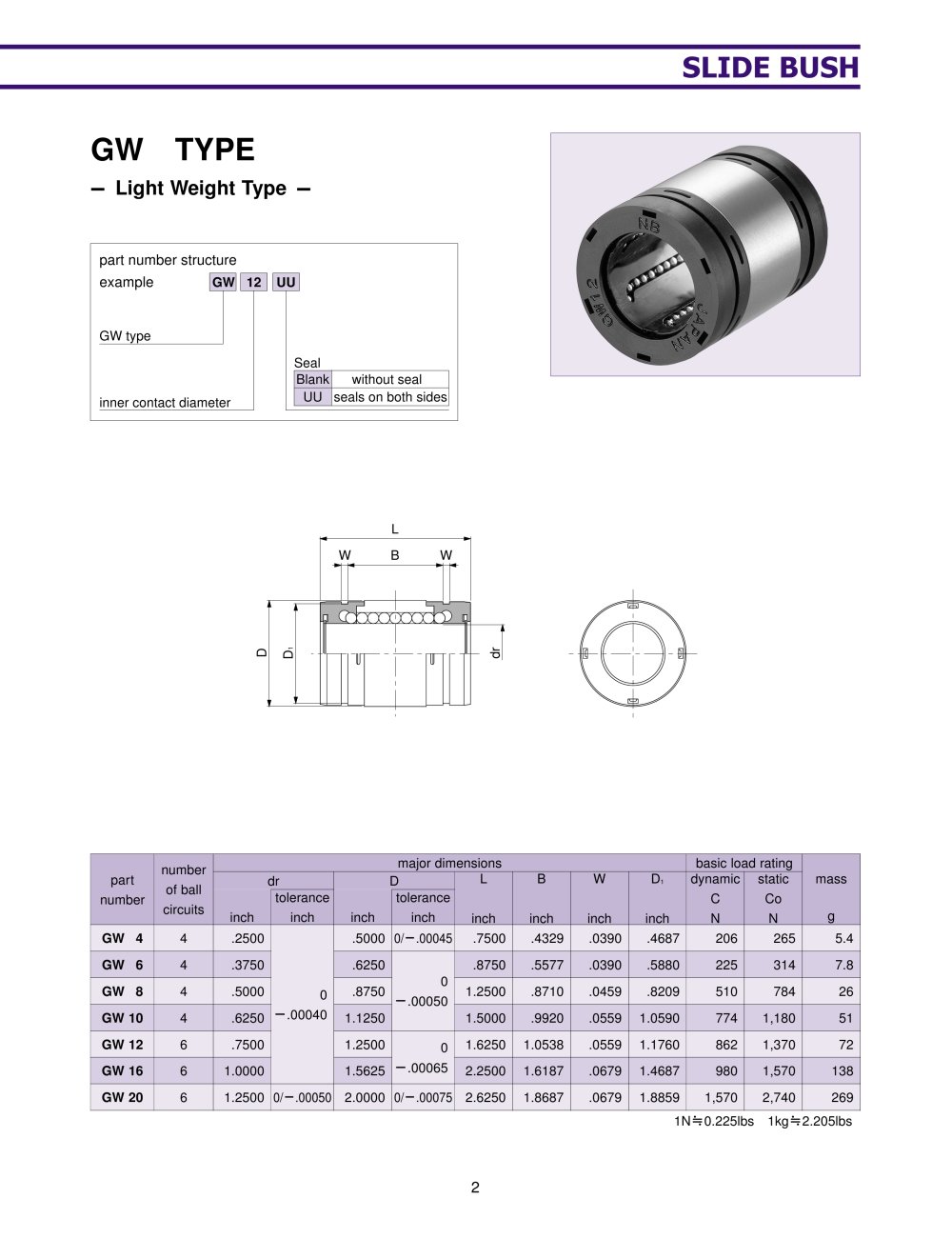

GW TYPE

- - Light Weight Type- -

part number structure example

12 UUGW GW typeinner contact diameterUUBlankwithout sealseals on both sidesSeal L BWW
1 D dr D numberof ballcircuits major dimensions basic load rating partnumber dr D Linch Binch Industrial winch D
1 dynamicC N staticCoN massg toleranceinch toleranceinch inch inch inch GW 4 4 .2500 .5000 0/ .00045 .7500 .4329 .0390 .4687 206 265 5.4 GW 6 4 .3750 .6250 .8750 .5577 .0390 .5880 225 314 7.8 GW 8 4 .5000 .8750 .00050 1.2500 .8710 .0459 .8209 510 784 26 GW 10 4 .6250 .00040 1.1250 1.5000 .9920 .0559 1.0590 774 1,180 51 GW 12 6 .7500 1.2500 1.6250 1.0538 .0559 1.1760 862 1,370 72 GW 16 6 1.0000 1.5625 .00065 2.2500 1.6187 .0679 1.4687 980 1,570 138 GW 20 6 1.2500 0/ .00050 2.0000 0/ .00075 2.6250 1.8687 .0679 1.8859 1,570 2,740 269 1N 0.225lbs 1kg 2.205lbs

2
