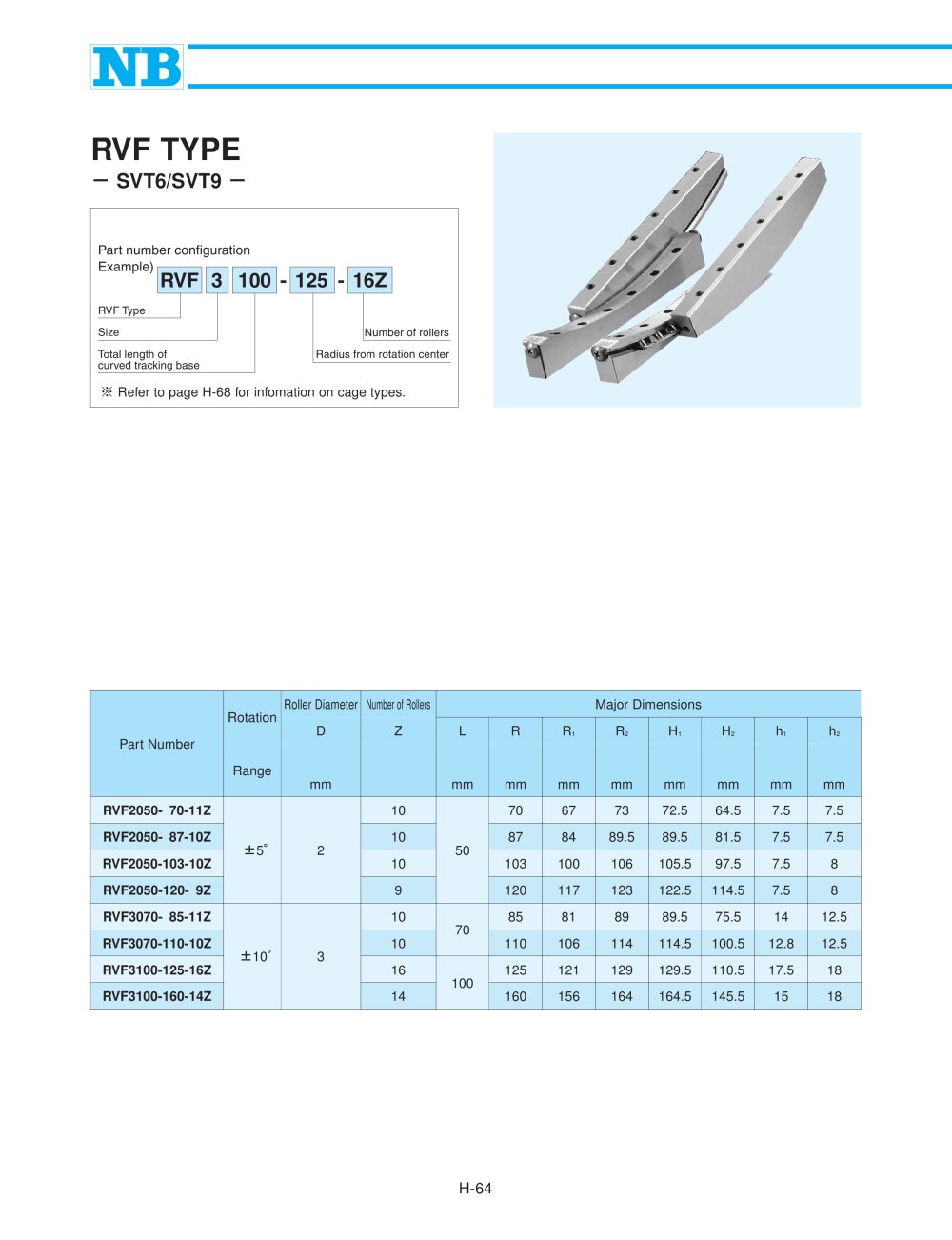

RVF TYPE

SVT6/SVT9

Part number configurationExample)

3100125 16ZRVF--

RVF TypeSize Total length of curved tracking baseNumber of rollersRadius from rotation center Refer to page H-68 for infomation on cage types. Roller Diameter Number of Rollers Major Dimensions Rotation D Z L R R
1 R
2 H
1 H
2 h
1 h
2 Part Number Range mm mm mm mm mm mm mm mm mm RVF2050- 70-11Z 10 70 67 73 72.5 64.5 7.5 7.5 RVF2050- 87-10Z 10 87 84 89.5 89.5 81.5 7.5 7.5 5 2 50 RVF2050-103-10Z 10 103 100 106 105.5 97.5 7.5 8 RVF2050-120- 9Z 9 120 117 123 122.5 114.5 7.5 8 RVF3070- 85-11Z 10 85 81 89 89.5 75.5 14 12.5 70 RVF3070-110-10Z 10 110 106 114 114.5 100.5 12.8 12.5 10 3 RVF3100-125-16Z 16 125 121 129 129.5 110.5 17.5 18 100 RVF3100-160-14Z 14 160 156 164 164.5 145.5 15 18

H-64
