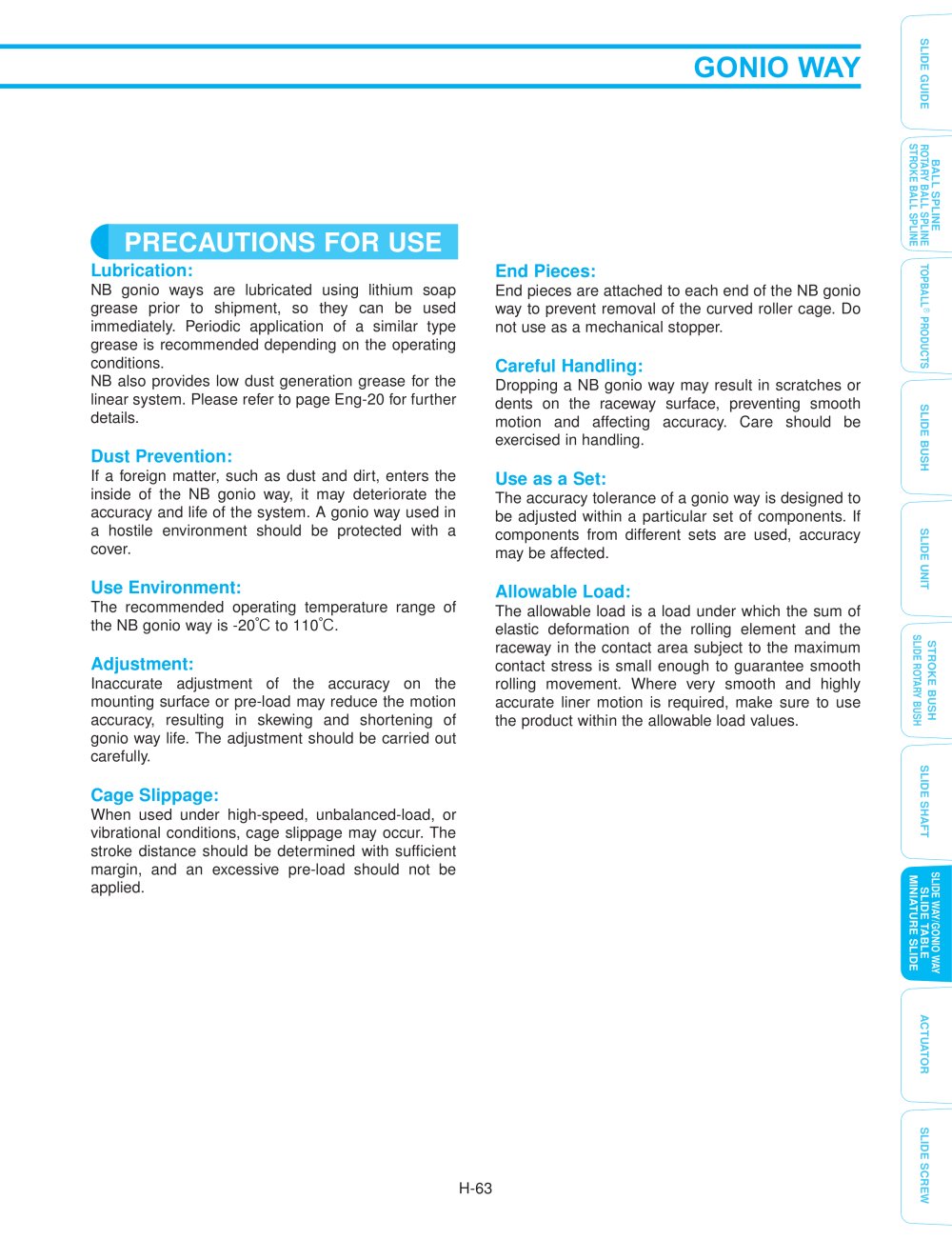

PRECAUTIONS FOR USE

NESTROKEBALLSPLINETOPBALL

Lubrication: End Pieces:

NB gonio ways are lubricated using lithium soap grease prior to shipment, so they can be used immediately. Periodic application of a similar type grease is recommended depending on the operating conditions. NB also provides low dust generation grease for the linear system. Please refer to page Eng-20 for further details. End pieces are attached to each end of the NB gonio way to prevent removal of the curved roller cage. Do not use as a mechanical stopper.
PRODUCTS

Careful Handling:

Dropping a NB gonio way may result in scratches or dents on the raceway surface, preventing smooth motion and affecting accuracy. Care should be exercised in handling.
SLIDEBUSHSLIDEUNITSTROKEBUSH

Dust Prevention:

If a foreign matter, such as dust and dirt, enters the inside of the NB gonio way, it may deteriorate the accuracy and life of the system. A gonio way used in a hostile environment should be protected with a cover.

Use as a Set:

The accuracy tolerance of a gonio way is designed to be adjusted within a particular set of components. If components from different sets are used, accuracy may be affected.

Use Environment:

to 110 .

Allowable Load:

The recommended operating temperature range of the NB gonio way is -20 The allowable load is a load under which the sum of elastic deformation of the rolling element and the raceway in the contact area subject to the maximum contact stress is small enough to guarantee smooth rolling movement. Where very smooth and highly accurate liner motion is required, make sure to use the product within the allowable load values.
SLIDEROTARYBUSH

Adjustment:

Inaccurate adjustment of the accuracy on the mounting surface or pre-load may reduce the motion accuracy, resulting in skewing and shortening of gonio way life. The adjustment should be carried out carefully.
SLIDESHAFT

Cage Slippage:

When used under high-speed, unbalanced-load, or vibrational conditions, cage slippage may occur. The stroke distance should be determined with sufficient margin, and an excessive pre-load should not be applied.
SLIDE WAY/GONIO WAY SLIDE TABLEMINIATURE SLIDEACTUATORSLIDESCREW H-63
