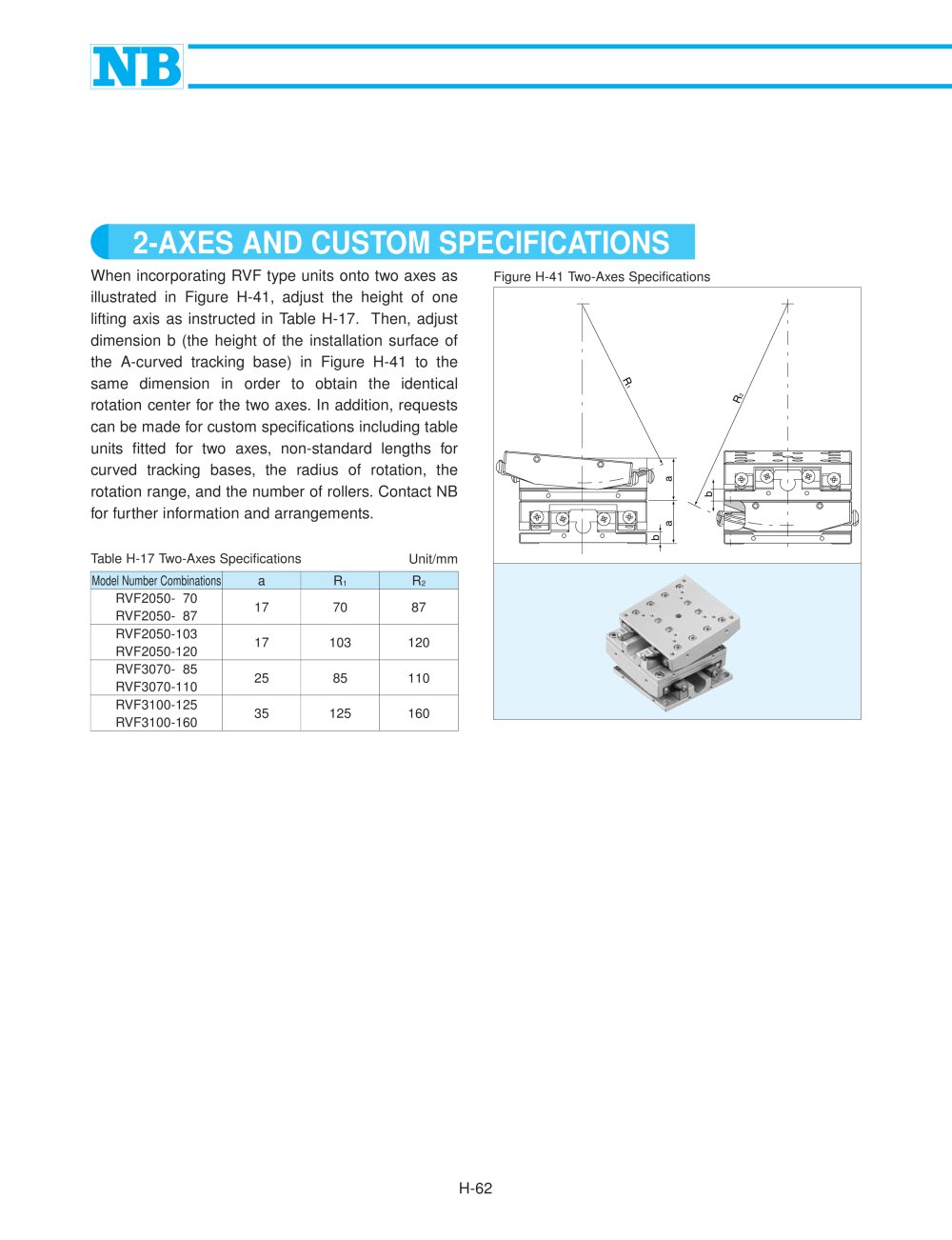

2-AXES AND CUSTOM SPECIFICATIONS

Figure H-41 Two-Axes Specifications
R 1 2 R abab Table H-17 Two-Axes SpecificationsUnit/mm Model Number Combinations a R
1 R
2 RVF2050-070 RVF2050-087 17 70 87 RVF2050-103 RVF2050-120 17 103 120 RVF3070-085 RVF3070-110 25 85 110 RVF3100-125 RVF3100-160 35 125 160

H-62 When incorporating RVF type units onto two axes as illustrated in Figure H-41, adjust the height of one lifting axis as instructed in Table H-17. Then, adjust dimension b (the height of the installation surface of the A-curved tracking base) in Figure H-41 to the same dimension in order to obtain the identical rotation center for the two axes. In addition, requests can be made for custom specifications including table units fitted for two axes, non-standard lengths for curved tracking bases, the radius of rotation, the rotation range, and the number of rollers. Contact NB for further information and arrangements.
