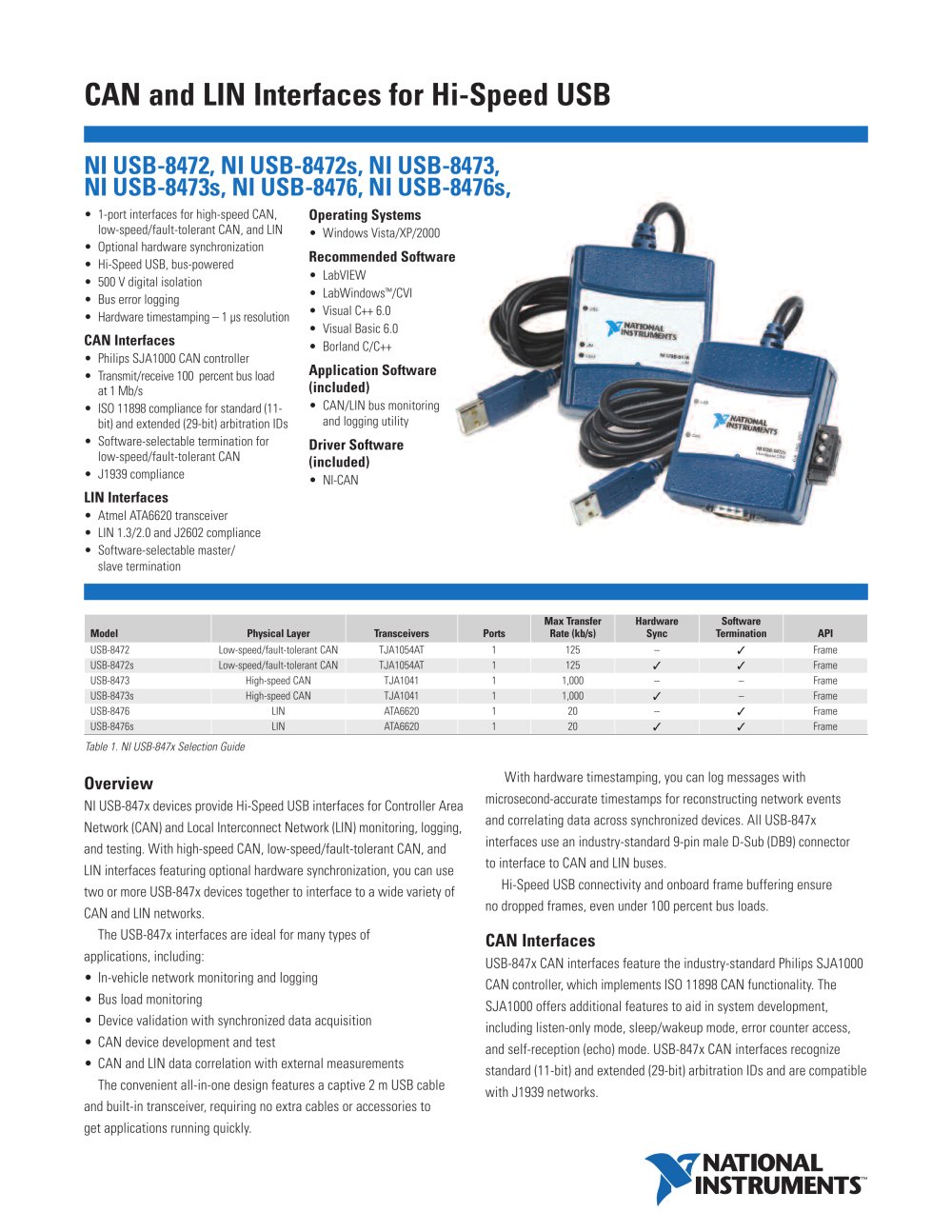

CAN and LIN Interfaces for Hi-Speed USB

NI USB-8472, NI USB-8472s, NI USB-8473, NI USB-8473s, NI USB-8476, NI USB-8476s,

• 1-port interfaces for high-speed CAN, low-speed/fault-tolerant CAN, and LIN • Optional hardware synchronization • Hi-Speed USB, bus-powered • 500 V digital isolation • Bus error logging • Hardware timestamping - 1 ps resolution CAN Interfaces • Philips SJA1000 CAN controller • Transmit/receive 100 percent bus load at 1 Mb/s • ISO 1 1898 compliance for standard (11bit) and extended (29-bit) arbitration IDs • Software-selectable termination for low-speed/fault-tolerant CAN • J1939 compliance LIN Interfaces • Atmel ATA6620 transceiver • LIN 1.3/2.0 and J2602 compliance • Software-selectable master/ slave termination	Operating Systems • Windows Vista/XP/2000 Recommended Software • LabVIEW • LabWindows™/CVI • Visual C++ 6.0 • Visual Basic 6.0 • Borland C/C++ Application Software (included) • CAN/LIN bus monitoring and logging utility Driver Software (included) • NI-CAN

Max Transfer Hardware Software

Model Physical Layer Transceivers USB-8472 Low-speed/fault-tolerant CAN TJA1054AT USB-8472s Low-speed/fault-tolerant CAN TJA1054AT USB-8473 High-speed CAN TJA1041 USB-8473s High-speed CAN TJA1041 USB-8476 LIN ATA6620 _USB-8476s LIN ATA6620 Table 1. N1 USB*-847x* Selection Guide Overview NI USB-847x devices provide Hi-Speed USB interfaces for Controller Area Network (CAN) and Local Interconnect Network (LIN) monitoring, logging, and testing. With high-speed CAN, low-speed/fault-tolerant CAN, and LIN interfaces featuring optional hardware synchronization, you can use two or more USB-847x devices together to interface to a wide variety of CAN and LIN networks. The USB-847x interfaces are ideal for many types of applications, including: • In-vehicle network monitoring and logging • Bus load monitoring • Device validation with synchronized data acquisition • CAN device development and test • CAN and LIN data correlation with external measurements The convenient all-in-one design features a captive 2 m USB cable and built-in transceiver, requiring no extra cables or accessories to get applications running quickly.		Ports Rate (kb/s) Sync Termination API 1 125 - ✓ Frame 1 125 ✓ ✓ Frame 1 1,000 Frame 1 1,000 ✓ Frame 1 20 - ✓ Frame 1 20 ✓ ✓ Frame
		With hardware timestamping, you can log messages with microsecond-accurate timestamps for reconstructing network events and correlating data across synchronized devices. All USB-847x interfaces use an industry-standard 9-pin male D-Sub (DB9) connector to interface to CAN and LIN buses. Hi-Speed USB connectivity and onboard frame buffering ensure no dropped frames, even under 100 percent bus loads. CAN Interfaces USB-847x CAN interfaces feature the industry-standard Philips SJA1000 CAN controller, which implements ISO 11898 CAN functionality. The SJA1000 offers additional features to aid in system development, including listen-only mode, sleep/wakeup mode, error counter access, and self-reception (echo) mode. USB-847x CAN interfaces recognize standard (11-bit) and extended (29-bit) arbitration IDs and are compatible with J1939 networks.

<W7 NATIONAL ^INSTRUMENTS
