High-Speed Digitizers - Optimized for Automated Test

NI 5154, NI 5153, NI 5152 NEW!

• 2 GS/s maximum real-time sample rate

• 1 GHz, 500 MHz, and 300 MHz bandwidths

• 8-bit resolution

• 8, 64, or 256 MB memory per channel

• Edge, window, hysteresis, digital, immediate, and software triggering

• PXI and PCI versions

Calibration

• Gain, offset, triggering, and timing self-calibration

• 2-year external calibration interval

Operating Systems

• Windows Vista/XP/2000

• LabVIEW Real-Time

Recommended Software

• LabVIEW

• LabWindows"/CVI

• Measurement Studio for Visual Studio

• LabVIEW SignalExpress

Driver Software (included)

• NI-SCOPE driver

• LabVIEW Express VIs

• NI-SCOPE Soft Front Panel

Overview

Applications Communications

xDSL

Wireless communications Baseband I & Q Consumer Electronics

DVD, DVD-R, and PVR Set-top box Gaming console

Biomedical and Scientific Research

Ultrasonic medical imaging Mass spectrometry Particle physics Aerospace/Defense

RADAR, SONAR, and LIDAR Satellite

Signal intelligence

NI 515x high-speed digitizers/PC-based oscilloscopes provide the industry's first gigahertz solutions optimized for automated test. A digitizer optimized for automated test leverages a high-throughput bus to lower test times, provides picosecond-level synchronization between modules, and integrates with the entire suite of NI hardware -including arbitrary waveform generators, high-speed digital I/O, and other digitizers - so you can build and

Triggering, Clocking, and Synchronization

• Edge, window, hysteresis, and digital triggering with 5 ps timestamping

• Pretrigger and posttrigger acquisition in single- and multiple-record mode

• Internal 1 GHz clock or external clock from 350 MHz to 1 GHz

• Phase lock to PXI 10 MHz reference or external reference from 1 to 20 MHz

Software

• IVI-compliant NI-SCOPE driver for NI LabVIEW, LabWindows/CVI, Microsoft C++, and Visual Basic

• NI-SCOPE Soft Front Panel for interactive control

• More than 50 built-in measurements with NI-SCOPE

customize a complete mixed-signal or high-channel-count test system.

Dual 1 GS/s, 8-Bit Input Channels

• 2 GS/s real-time sampling on 1 channel

• 1 GS/s real-time sampling on 2 channels, simultaneously sampled

• 1 GHz (NI 5154), 500 MHz (NI 5153), or 300 MHz (NI 5152) input bandwidth with noise filters

• 20 GS/s equivalent-time sampling (ETS) for repetitive signals

• 2-year calibration interval and 0 to +55 °C operating temperature

Deep Onboard Memory

• Take advantage of 8, 64, or 256 MB of memory per channel

• Capture more than 1 million triggered waveforms in multiple record mode with trigger rearm time as fast as 1 lis

• Stream data continuously from onboard memory to host memory or disk


	Ordering Information
	NI PXI-5154...............................................................	780319-0M¹
	NI PCI-5154...............................................................	780320-0M1
	NI PXI-5153...............................................................	780317-0M¹
	NI PCI-5153...............................................................	780318-0M1
	NI PXI-5152...............................................................	779772-0M¹
	NI PCI-5152...............................................................	779945-0M1
	¹M (memory per channel): 1 (8 MB), 2 (64 MB), 3 (256 MB)
	Includes NI-SCOPE driver and NI-SCOPE Soft Front Panel

BUYNOW!

For complete product specifications, pricing, and accessory information, call 800 813 3693 (U.S. only) or go to ni.com/digitizers/highspeed.

<W7 NATIONAL ^INSTRUMENTS

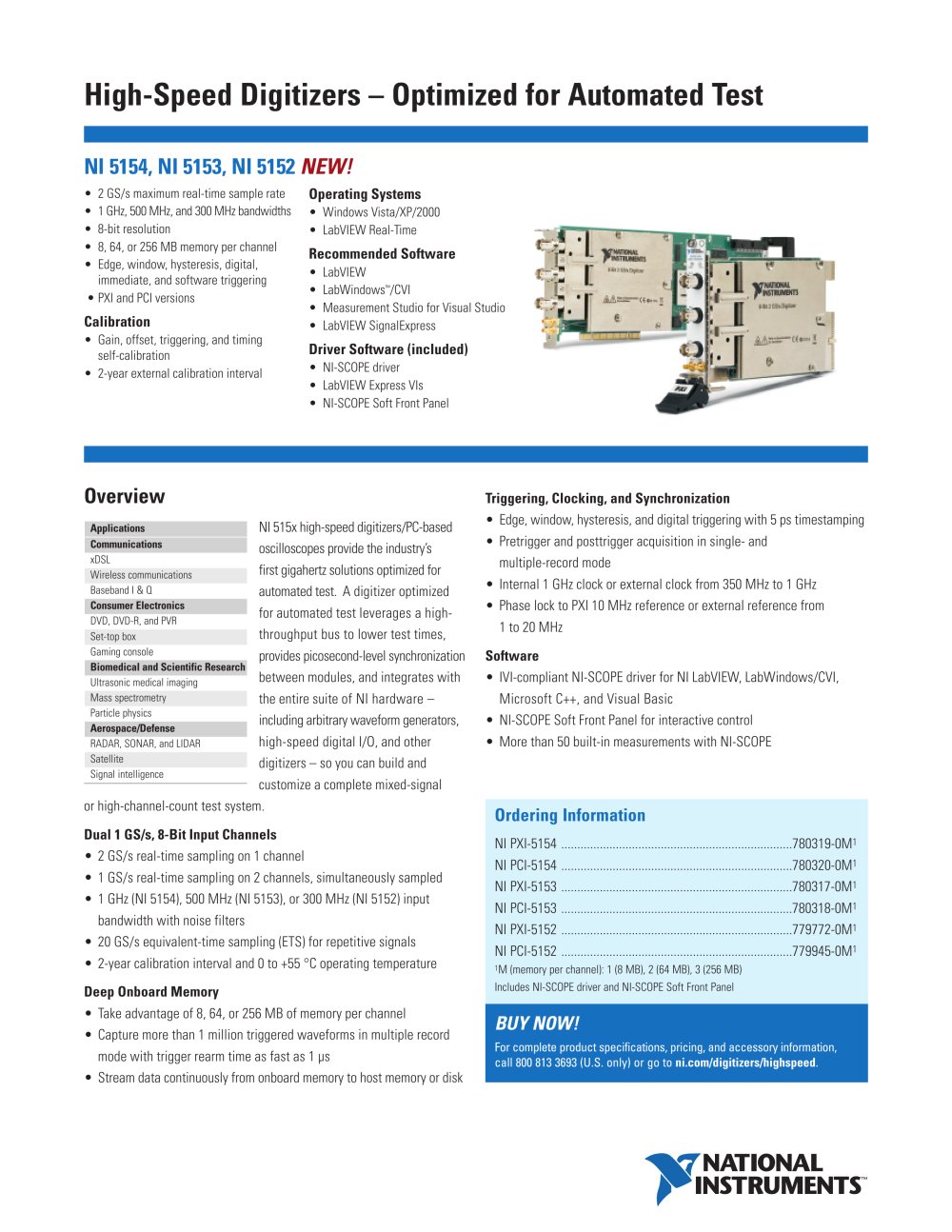

NI PXI-5154 2 GS/s Digitizer/Oscilloscope, Optimized for Automated Test - NATIONAL INSTRUMENTS - #1
