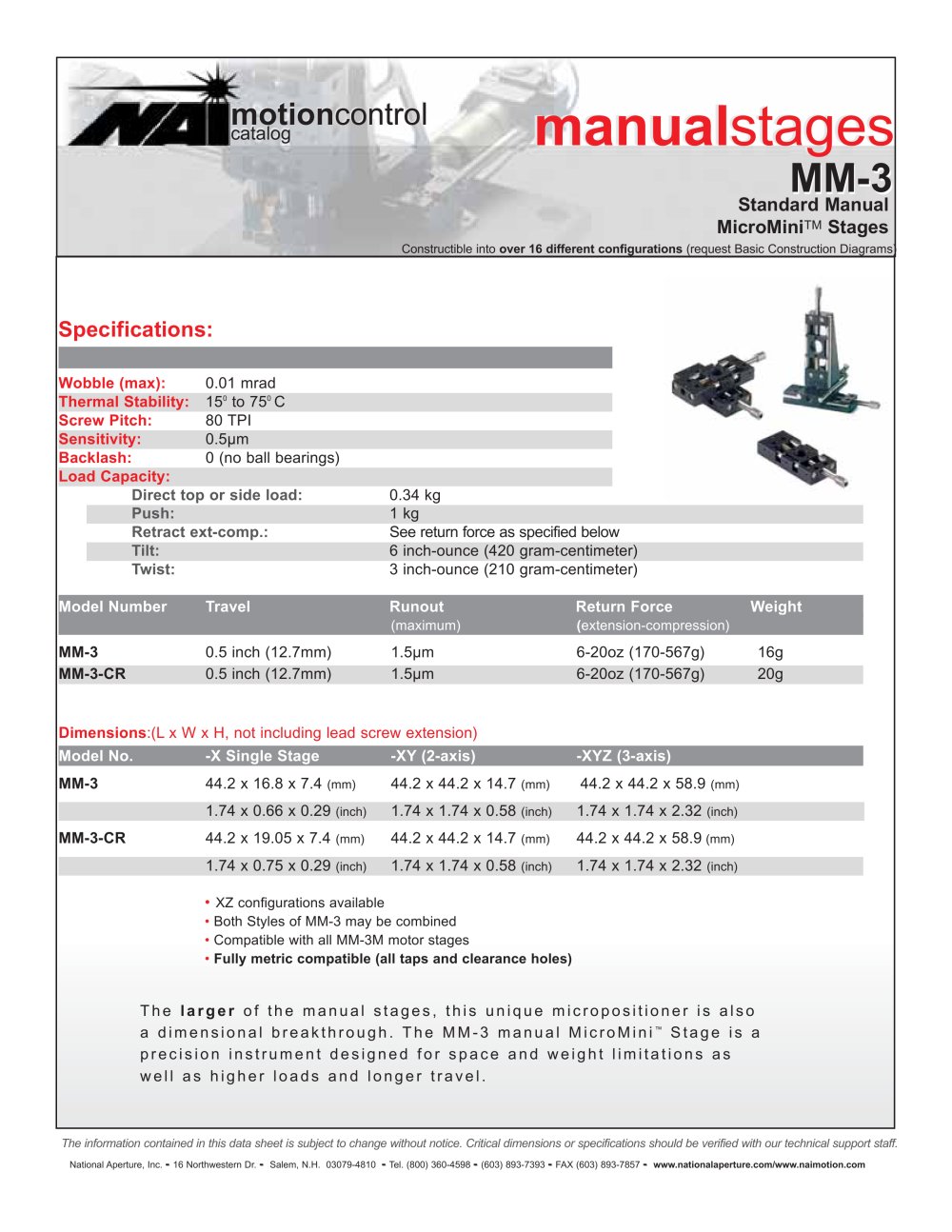

| motioncontr catalog | manualstages M M-3 Constructible into over 16 different configurations (request Basic Construction Diagrams | ||||||||||||||||||||||||||||||||||||||
| wobble (max;. 0.01 mrad Thermal Stability. 150 to 750 C Screw Pitch. 80 TPI Sensitivity. 0.5|jm Backlash. 0 (no ball bearings) Load Capacity. Direct top or side load. Push. Retract ext-comp.. Tilt. Twist. | |||||||||||||||||||||||||||||||||||||||
| 0.34 kg 1 kg See return force as gpedfled bel°w 3 inch-ounce (210 gramas | |||||||||||||||||||||||||||||||||||||||
| del | Number Travel | Runout (maximum) | Return Force (extension-compression) | Weight | |||||||||||||||||||||||||||||||||||
| MM-3 MM-3-CR | 0.5 inch ji^is | 1.5: | 6-20oz (170-567g) 6-20oz (170-567g) | 1260gg | |||||||||||||||||||||||||||||||||||
| Dimensions:(L x W x H, not including lead screw extension) Model No. -X Single Stage -XY (2-axis) MM-3 44.2 x 16.8 x 7.4 (mm) 44.2 x 44.2 x 14.7 (mm) 1.74 x 0.66 x 0.29 (inch) 1.74 x 1.74 x 0.58 (inch) MM-3-CR 44.2 x 19.05 x 7.4 (mm) 44.2 x 44.2 x 14.7 (mm) 1.74 x 0.75 x 0.29 (inch) 1.74 x 1.74 x 0.58 (inch) | |||||||||||||||||||||||||||||||||||||||
| -XYZ (3-axis) 44.2 x 44.2 x 58.9 (mm) 1.74 x 1.74 x 2.32 (inch) 44.2 x 44.2 x 58.9 (mm) 1.74 x 1.74 x 2.32 (inch) | |||||||||||||||||||||||||||||||||||||||
| XZ configurations available Both Styles of MM-3 may be combined Compatible with all MM-3M motor stages Fully metric compatible (all taps and clearance holes) | |||||||||||||||||||||||||||||||||||||||
| The larger of the manual stages, this unique micropositioner is also a dimensional breakthrough. The MM-3 manual MicroMini™ Stage is a precision instrument designed for space and weight limitations as well as higher loads and longer travel. | |||||||||||||||||||||||||||||||||||||||
| The information contained in this data sheet is subject to change without notice. Critical dimensions or specifications should be verified with our technical support staff. | |||||||||||||||||||||||||||||||||||||||
| National Aperture, Inc. - 16 Northwestern Dr. - Salem, N.H. 03079^810 - Tel. (800) 360-4598 - (603) 893-7393 - FAX (603) 893-7857 - www.nationalaperture.com/www.naimotion.com | |||||||||||||||||||||||||||||||||||||||
