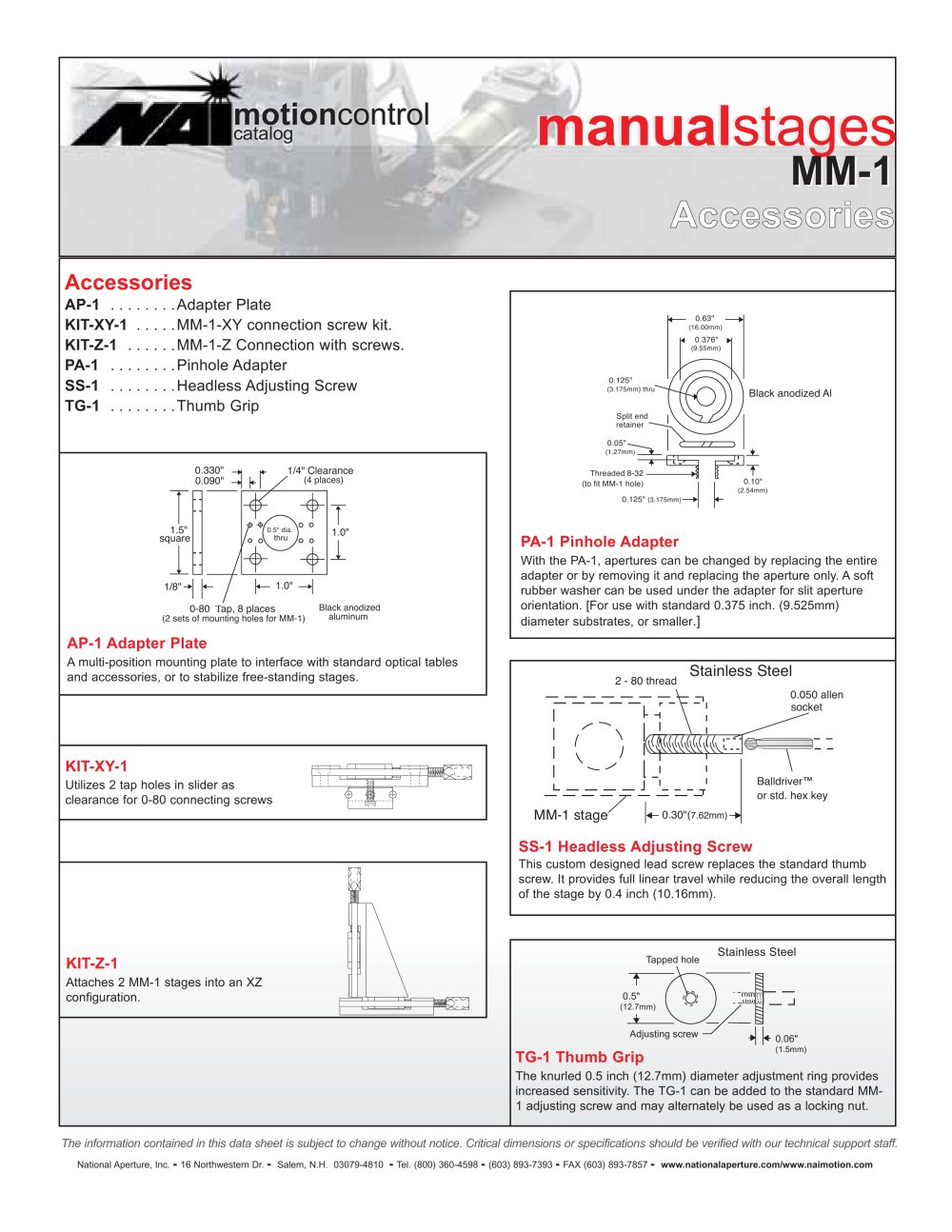

Stage Catalog - 55026 manual manual stages stages MM-1 MM-1 MM-1

Accessories

Accessories

AP-1 . . . . . . . .Adapter Plate KIT-XY-1 . . . . .MM-1-XYconnection screw kit.
0.63" (16.00mm) KIT-Z-1 . . . . . .MM-1-Z Connection with screws.
0.376" (9.55mm) PA-1 . . . . . . . .Pinhole Adapter SS-1 . . . . . . . .Headless Adjusting Screw
0.125" (3.175mm) thru Black anodized Al TG-1 . . . . . . . .Thumb Grip
Split end retainer 0.05" (1.27mm) Threaded 8-32(to fit MM-1 hole) 0.090"0.330" (4 places) 0.10" (2.54mm) 0.125" (3.175mm) 1.5"square1/4" Clearance 0.5" dia. thru PA-1 Pinhole Adapter
With the PA-1, apertures can be changed by replacing the entire adapter or by removing it and replacing the aperture only. Asoft rubber washer can be used under the adapter for slit aperture orientation. [For use with standard 0.375 inch. (9.525mm)diameter substrates, or smaller 1/8"1.0" 1.0" 0-80 T ap, 8 places Black anodize d (2 sets of mounting holes for MM-1) aluminum .] AP-1 Adapter Plate
Amulti-position mounting plate to interface with standard optical tablesand accessories, or to stabilize free-standing stages. 2 - 80 thread Stainless Steel
0.050 allen socket KIT-XY-1
Utilizes 2 tap holes in slider as clearance for 0-80 connecting screws Balldriver™or std. hex key MM-1 stage 0.30"( 7.62mm) SS-1 Headless Adjusting Screw
This custom designed lead screw replaces the standard thumbscrew. It provides full linear travel while reducing the overall length of the stage by 0.4 inch (10.16mm). Stainless Steel KIT-Z-1
Tapped hole Adjusting screw0.06" Attaches 2 MM-1 stages into an XZconfiguration. 0.5" (12.7mm) TG-1 Thumb Grip
(1.5mm) The knurled 0.5 inch (12.7mm) diameter adjustment ring providesincreased sensitivity. The TG-1 can be added to the standard MM- 1 adjusting screw and may alternately be used as a locking nut. The information contained in this data sheet is subject to change without notice. Critical dimensions or specifications should be verified with our technical support staff. National Aperture, Inc. -- 16 Northwestern Dr. -- Salem, N.H. 03079-4810 -- Tel. (800) 360-4598 -- (603) 893-7393 -- FAX (603) 893-7857 -- www.nationalaperture.com/www.naimotion.com
