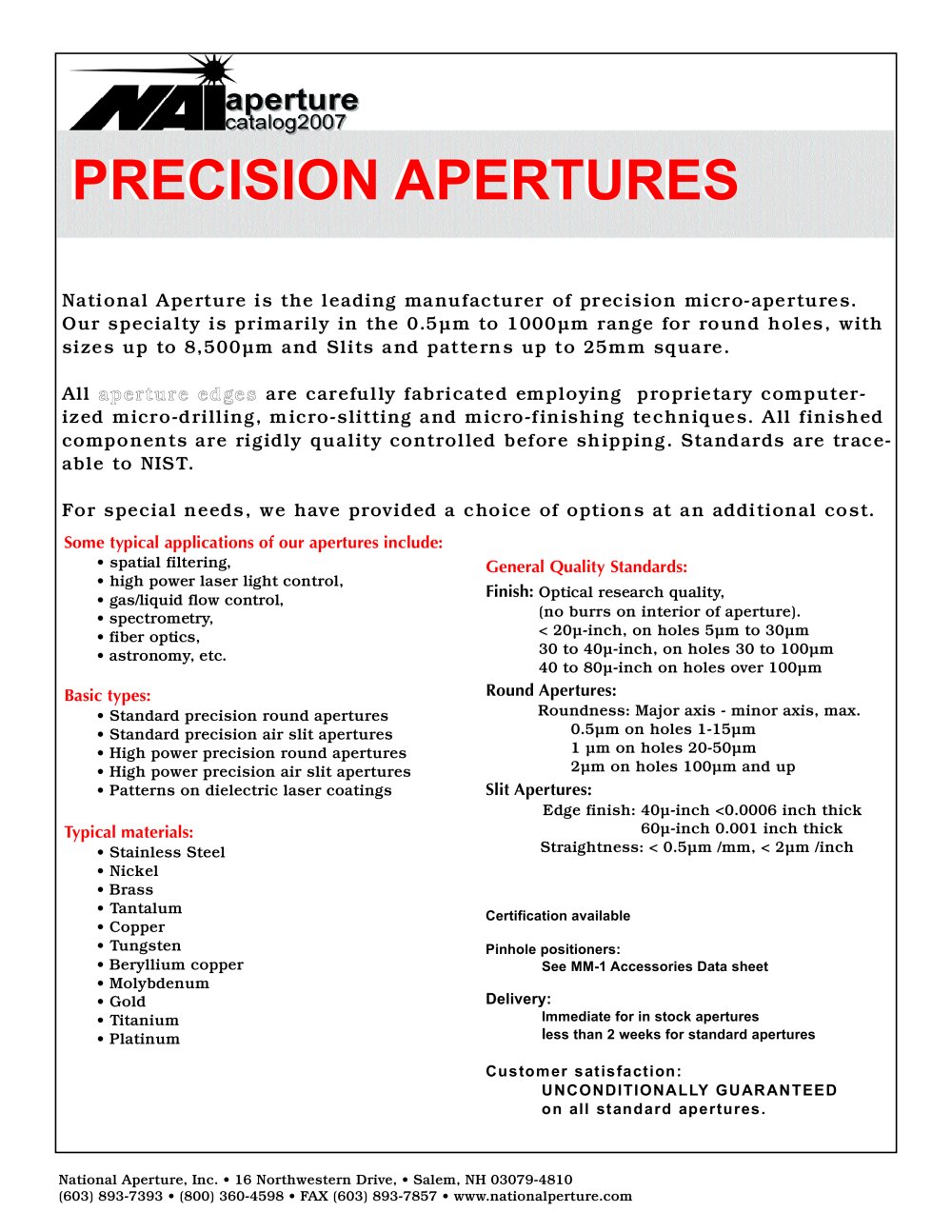

PRECISION APERTURESPRECISION APERTURES

National Aperture is the leading manu facturer of precision micro-apertures.Our specialty is primarily in the 0.5µm to 1000µm range for round holes, withsizes up to 8,500µm and Slits and patterns up to 25mm square.All aperture e dg es are carefully fabricated employing proprietary computer-ized micro-drilling, micro-slitting and micro-finishing techniques. All fi n i s h e dcomponents are rigidly quality controlled before shipping. Standards are trace-able to NIST.For special needs, we have provided a choice of options at an additional cost.

Some typical applications of our apertures include:

• spatial filtering, • high power laser light control, • gas/liquid flow control, • spectrometry, • fiber optics, • astronomy, etc.

G e n e ral Quality Standards: Finish:

Optical research quality,(no burrs on interior of aperture).

Basic types: Round Apertures:

• Standard precision round apertures • Standard precision air slit apertures • High power precision round apertures • High power precision air slit apertures • Patterns on dielectric laser coatings Roundness: Major axis - minor axis, max.0.5µm on holes 1-15µm 1 µm on holes 20-50µm 2µm on holes 100µm and up

Slit Apertures:

Edge finish: 40µ-inch <0.0006 inch thick 60µ-inch 0.001 inch thickStraightness:

Typical materials:

• Stainless Steel • Nickel • Brass • Tantalum • Copper • Tungsten • Beryllium copper • Molybdenum • Gold • Titanium • Platinum
Certification availablePinhole positioners: See MM-1 Accessories Data sheet Delivery:
Immediate for in stock apertures l
ess than 2 weeks for standard apertures Customer satisfaction:U N C O N D I T I O N A L LYGUARANTEED on all standard apertures.
National Aperture, Inc. • 16 Northwestern Drive, • Salem, NH 03079-4810(603) 893-7393 • (800) 360-4598 • FAX (603) 893-7857 • www.nationalperture.com
