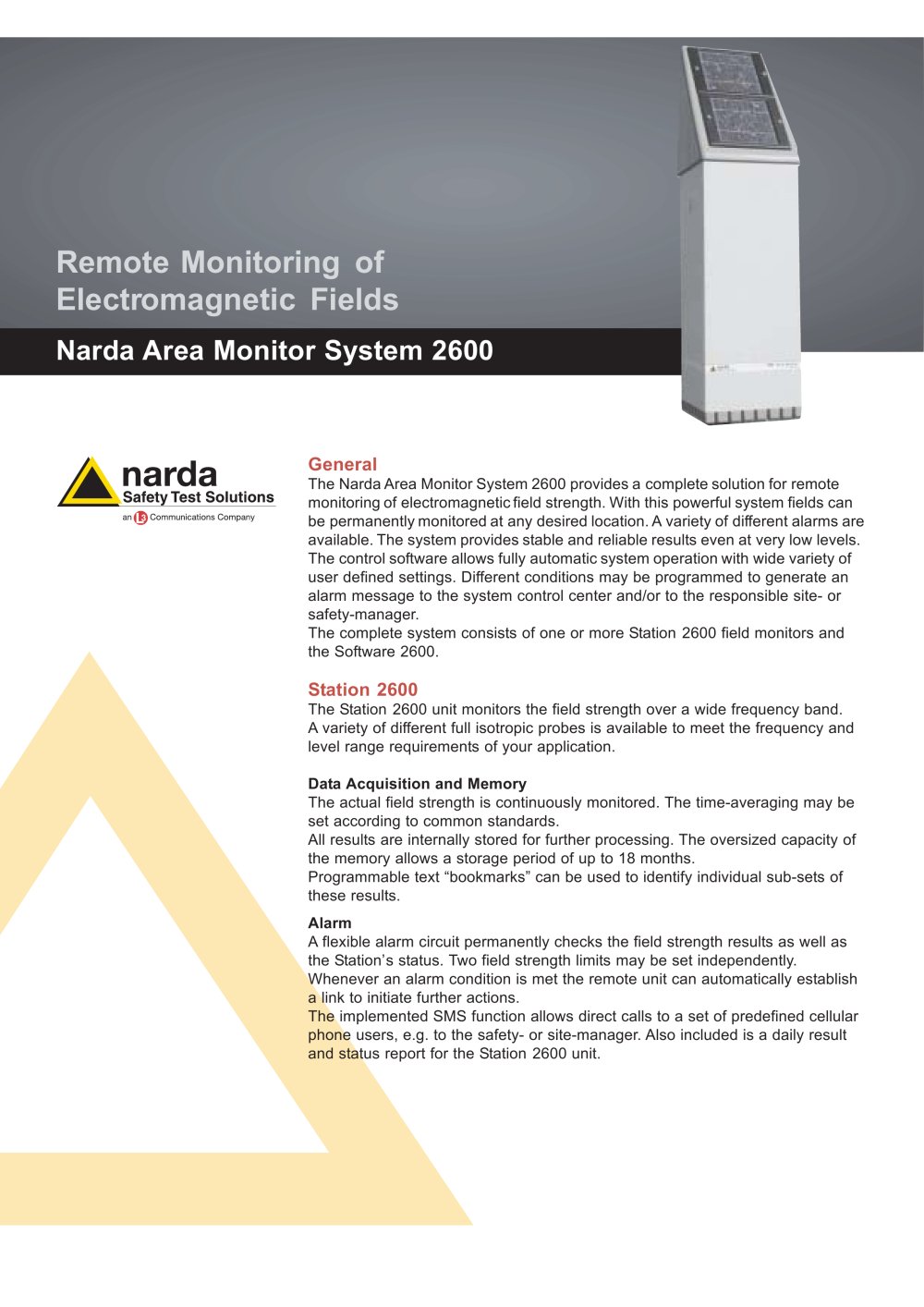

Remote Monitoring of
Electromagnetic Fields
General
The Narda Area Monitor System 2600 provides a complete solution for remote
monitoring of electromagnetic field strength. With this powerful system fields can
be permanently monitored at any desired location. A variety of different alarms are
available. The system provides stable and reliable results even at very low levels.
The control software allows fully automatic system operation with wide variety of
user defined settings. Different conditions may be programmed to generate an
alarm message to the system control center and/or to the responsible site- or
safety-manager.
The complete system consists of one or more Station 2600 field
monitors and
the Software 2600.
Station 2600
The Station 2600 unit
monitors the field strength over a wide frequency band.
A variety of different full isotropic probes is available to meet the frequency and
level range requirements of your application.
Data Acquisition and Memory
The actual field strength is continuously monitored. The time-averaging may be
set according to common standards.
All results are internally stored for further processing. The oversized capacity of
the memory allows a storage period of up to 18 months.
Programmable text “bookmarks” can be used to identify individual sub-sets of
these results.
Alarm
A flexible alarm circuit permanently checks the field strength results as well as
the Station’s status. Two field strength limits may be set independently.
Whenever an alarm condition is met the remote unit can automatically establish
a link to initiate further actions.
The implemented SMS function allows direct calls to a set of predefined cellular
phone users, e.g. to the safety- or site-manager. Also included is a daily result
and status report for the Station 2600 unit.
Narda Area Monitor System 2600
