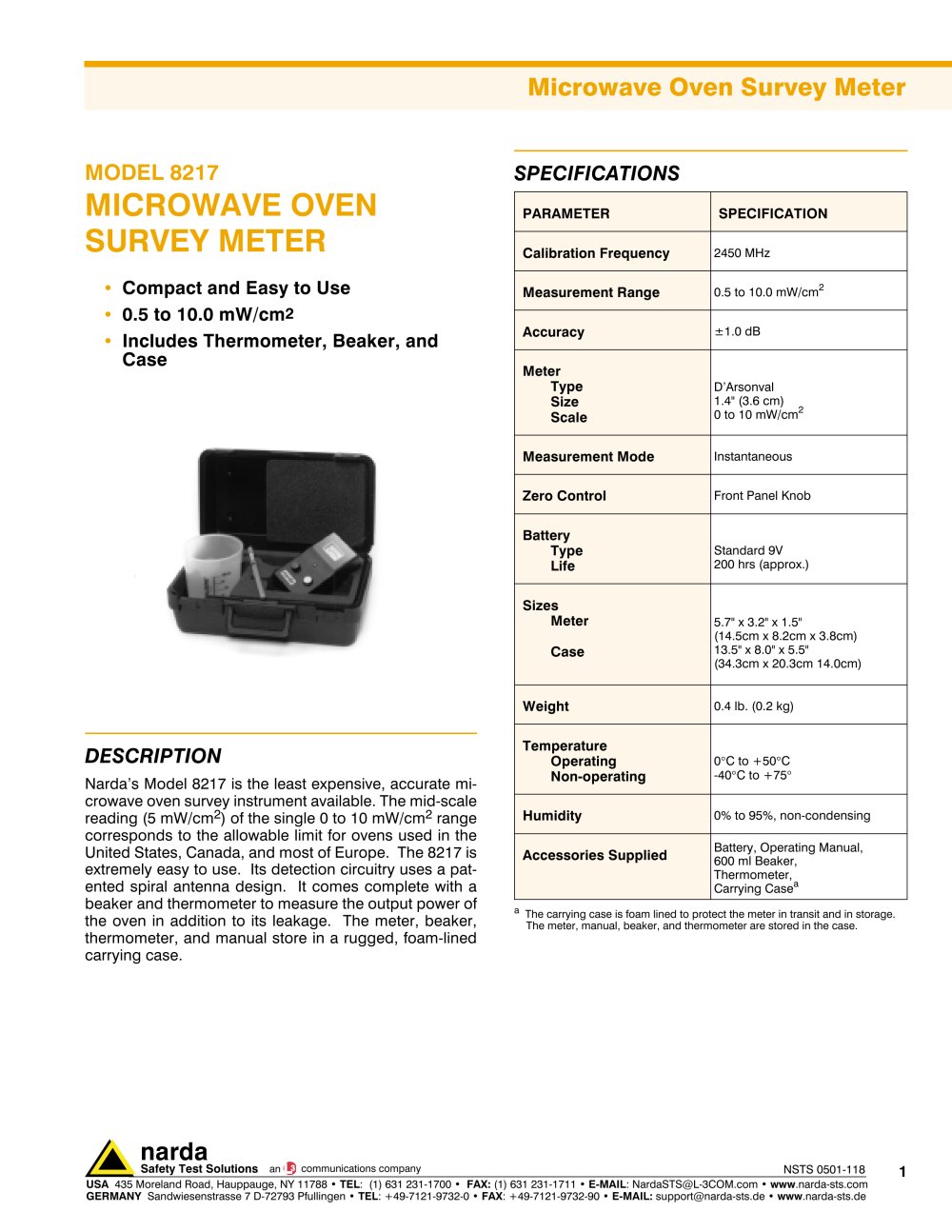

MODEL 8217 MICROWAVE OVEN SURVEY METER - NARDA - #1

Text version of the page

Microwave Oven Survey Meter narda Safety Test Solutions an communications company 1 USA 435 Moreland Road, Hauppauge, NY 11788 • TEL: (1) 631 231-1700 • FAX: (1) 631 231-1711 • E-MAIL: NardaSTS@L-3COM.com • www.narda-sts.com GERMANY Sandwiesenstrasse 7 D-72793 Pfullingen • TEL: +49-7121-9732-0 • FAX: +49-7121-9732-90 • E-MAIL: support@narda-sts.de • www.narda-sts.de MODEL 8217 MICROWAVE OVEN SURVEY METER · Compact and Easy to Use · 0.5 to 10.0 mW/cm2 · Includes Thermometer, Beaker, and Case DESCRIPTION Narda’s Model 8217 is the least expensive, accurate microwave oven survey instrument available. The mid-scale reading (5 mW/cm2) of the single 0 to 10 mW/cm2 range corresponds to the allowable limit for ovens used in the United States, Canada, and most of Europe. The 8217 is extremely easy to use. Its detection circuitry uses a patented spiral antenna design. It comes complete with a beaker and thermometer to measure the output power of the oven in addition to its leakage. The meter, beaker, thermometer, and manual store in a rugged, foam-lined carrying case. SPECIFICATIONS PARAMETER SPECIFICATION Calibration Frequency 2450 MHz Measurement Range 0.5 to 10.0 mW/cm2 Accuracy ±1.0 dB Meter Type Size Scale D’Arsonval 1.4" (3.6 cm) 0 to 10 mW/cm2 Measurement Mode Instantaneous Zero Control Front Panel Knob Battery Type Life Standard 9V 200 hrs (approx.) Sizes Meter Case 5.7" x 3.2" x 1.5" (14.5cm x 8.2cm x 3.8cm) 13.5" x 8.0" x 5.5" (34.3cm x 20.3cm 14.0cm) Weight 0.4 lb. (0.2 kg) Temperature Operating Non-operating 0
C to +50
C -40
C to +75
Humidity 0% to 95%, non-condensing Accessories Supplied Battery, Operating Manual, 600 ml Beaker, Thermometer, Carrying Casea a The carrying case is foam lined to protect the meter in transit and in storage. The meter, manual, beaker, and thermometer are stored in the case. NSTS 0501-118
