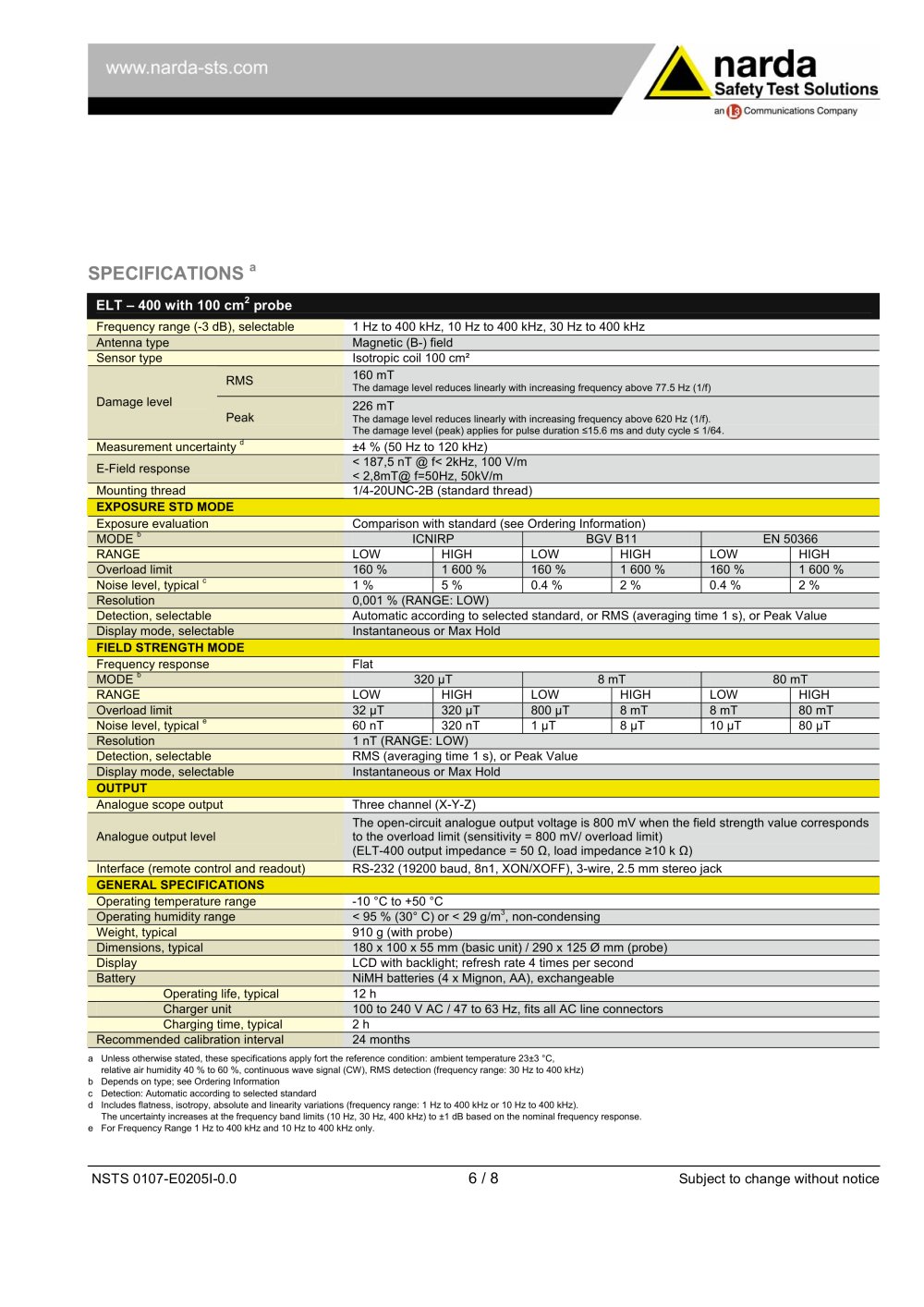

SPECIFICATIONS

a

ELT – 400 with 100 cm

2

probe

Frequency range (-3 dB), selectable 1 Hz to 400 kHz, 10 Hz to 400 kHz, 30 Hz to 400 kHz Antenna type Magnetic (B-) field Sensor type Isotropic coil 100 cm² RMS 160 mT
The damage level reduces linearly with increasing frequency above 77.5 Hz (1/f) Damage level 226 mT Peak
The damage level reduces linearly with increasing frequency above 620 Hz (1/f). The damage level (peak) applies for pulse duration 15.6 ms and duty cycle 1/64. Measurement uncertainty
d ±4 % (50 Hz to 120 kHz) E-Field response
b ICNIRP BGV B11 EN 50366 RANGE LOW HIGH LOW HIGH LOW HIGH Overload limit
c 160 % 1 600 % 160 % 1 600 % 160 % 1 600 % Noise level, typical 1 % 5 % 0.4 % 2 % 0.4 % 2 % Resolution 0,001 % (RANGE: LOW) Detection, selectable Automatic according to selected standard, or RMS (averaging time 1 s), or Peak Value Display mode, selectable Instantaneous or Max Hold FIELD STRENGTH MODE Frequency response Flat MODE
b 320 µT 8 mT 80 mT RANGE LOW HIGH LOW HIGH LOW HIGH Overload limit
e 32 µT 320 µT 800 µT 8 mT 8 mT 80 mT Noise level, typical 60 nT 320 nT 1 µT 8 µT 10 µT 80 µT Resolution 1 nT (RANGE: LOW) Detection, selectable RMS (averaging time 1 s), or Peak Value Display mode, selectable Instantaneous or Max Hold OUTPUT Analogue scope output Three channel (X-Y-Z) The open-circuit analogue output voltage is 800 mV when the field strength value corresponds Analogue output level to the overload limit (sensitivity = 800 mV/ overload limit) (ELT-400 output impedance = 50 , load impedance 10 k ) Interface (remote control and readout) RS-232 (19200 baud, 8n1, XON/XOFF), 3-wire, 2.5 mm stereo jack GENERAL SPECIFICATIONS Operating temperature range -10 °C to +50 °C Operating humidity range
3 , non-condensing Weight, typical 910 g (with probe) Dimensions, typical 180 x 100 x 55 mm (basic unit) / 290 x 125 Ø mm (probe) Display LCD with backlight; refresh rate 4 times per second Battery NiMH batteries (4 x Mignon, AA), exchangeable Operating life, typical 12 h Charger unit 100 to 240 V AC / 47 to 63 Hz, fits all AC line connectors Charging time, typical 2 h Recommended calibration interval 24 months
a Unless otherwise stated, these specifications apply fort the reference condition: ambient temperature 23±3 °C, relative air humidity 40 % to 60 %, continuous wave signal (CW), RMS detection (frequency range: 30 Hz to 400 kHz) b Depends on type; see Ordering Information c Detection: Automatic according to selected standard d Includes flatness, isotropy, absolute and linearity variations (frequency range: 1 Hz to 400 kHz or 10 Hz to 400 kHz). The uncertainty increases at the frequency band limits (10 Hz, 30 Hz, 400 kHz) to ±1 dB based on the nominal frequency response. e For Frequency Range 1 Hz to 400 kHz and 10 Hz to 400 kHz only.
