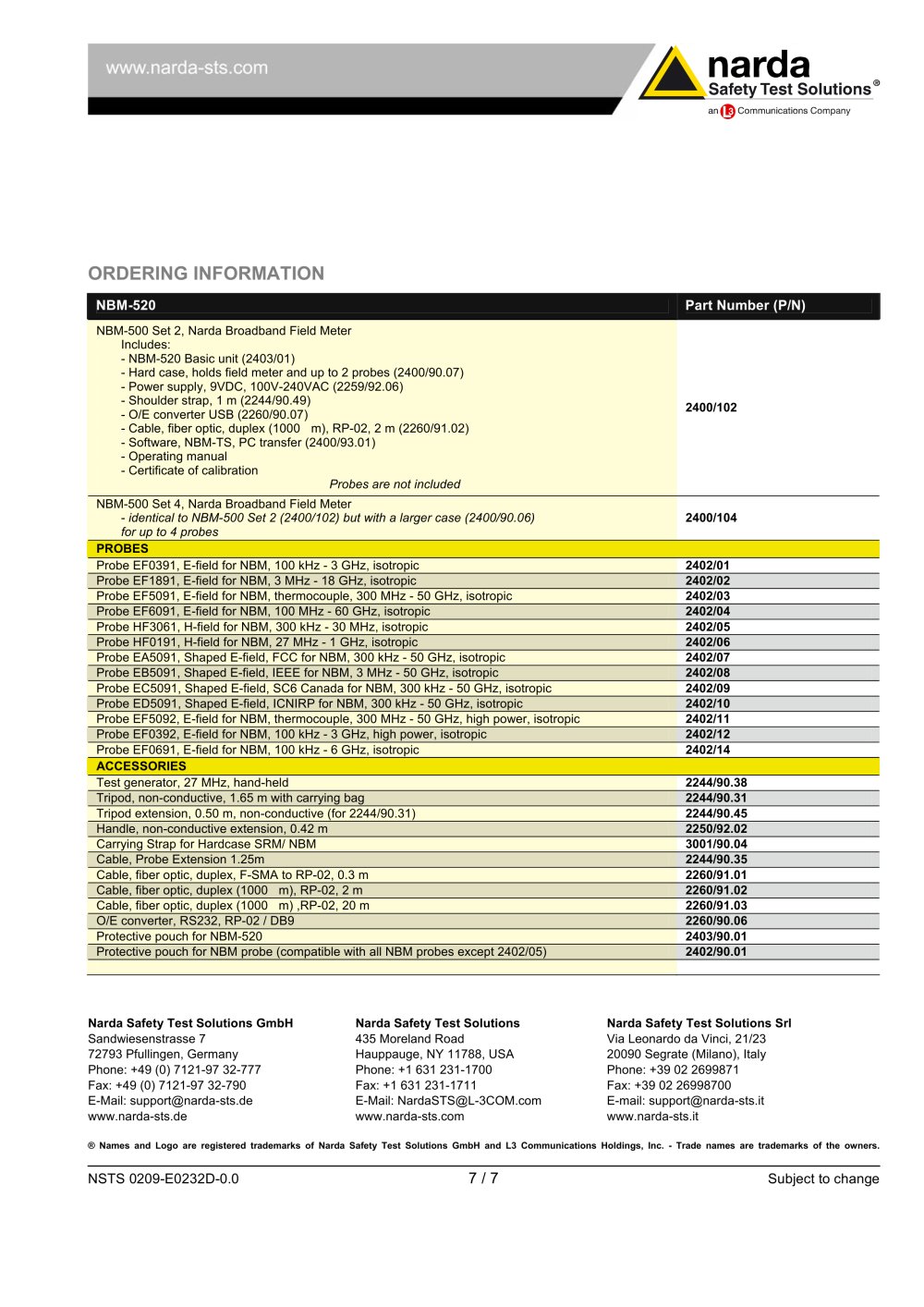

® Names and Logo are registered trademarks of Narda Safety Test Solutions GmbH and L3 Communications Holdings, Inc. - Trade names are trademarks of the owners. NSTS 0209-E0232D-0.0 7 / 7 Subject to change Narda Safety Test Solutions GmbH Sandwiesenstrasse 7 72793 Pfullingen, Germany Phone: +49 (0) 7121-97 32-777 Fax: +49 (0) 7121-97 32-790 E-Mail: support@narda-sts.de www.narda-sts.de Narda Safety Test Solutions 435 Moreland Road Hauppauge, NY 11788, USA Phone: +1 631 231-1700 Fax: +1 631 231-1711 E-Mail: NardaSTS@L-3COM.com www.narda-sts.com Narda Safety Test Solutions Srl Via Leonardo da Vinci, 21/23 20090 Segrate (Milano), Italy Phone: +39 02 2699871 Fax: +39 02 26998700 E-mail: support@narda-sts.it www.narda-sts.it ORDERING INFORMATION NBM-520 Part Number (P/N) NBM-500 Set 2, Narda Broadband Field Meter Includes: - NBM-520 Basic unit (2403/01) - Hard case, holds field meter and up to 2 probes (2400/90.07) - Power supply, 9VDC, 100V-240VAC (2259/92.06) - Shoulder strap, 1 m (2244/90.49) - O/E converter USB (2260/90.07) - Cable, fiber optic, duplex (1000 m), RP-02, 2 m (2260/91.02) - Software, NBM-TS, PC transfer (2400/93.01) - Operating manual - Certificate of calibration Probes are not included 2400/102 NBM-500 Set 4, Narda Broadband Field Meter - identical to NBM-500 Set 2 (2400/102) but with a larger case (2400/90.06) for up to 4 probes 2400/104 PROBES Probe EF0391, E-field for NBM, 100 kHz - 3 GHz, isotropic 2402/01 Probe EF1891, E-field for NBM, 3 MHz - 18 GHz, isotropic 2402/02 Probe EF5091, E-field for NBM, thermocouple, 300 MHz - 50 GHz, isotropic 2402/03 Probe EF6091, E-field for NBM, 100 MHz - 60 GHz, isotropic 2402/04 Probe HF3061, H-field for NBM, 300 kHz - 30 MHz, isotropic 2402/05 Probe HF0191, H-field for NBM, 27 MHz - 1 GHz, isotropic 2402/06 Probe EA5091, Shaped E-field, FCC for NBM, 300 kHz - 50 GHz, isotropic 2402/07 Probe EB5091, Shaped E-field, IEEE for NBM, 3 MHz - 50 GHz, isotropic 2402/08 Probe EC5091, Shaped E-field, SC6 Canada for NBM, 300 kHz - 50 GHz, isotropic 2402/09 Probe ED5091, Shaped E-field, ICNIRP for NBM, 300 kHz - 50 GHz, isotropic 2402/10 Probe EF5092, E-field for NBM, thermocouple, 300 MHz - 50 GHz, high power, isotropic 2402/11 Probe EF0392, E-field for NBM, 100 kHz - 3 GHz, high power, isotropic 2402/12 Probe EF0691, E-field for NBM, 100 kHz - 6 GHz, isotropic 2402/14 ACCESSORIES Test generator, 27 MHz, hand-held 2244/90.38 Tripod, non-conductive, 1.65 m with carrying bag 2244/90.31 Tripod extension, 0.50 m, non-conductive (for 2244/90.31) 2244/90.45 Handle, non-conductive extension, 0.42 m 2250/92.02 Carrying Strap for Hardcase SRM/ NBM 3001/90.04 Cable, Probe Extension 1.25m 2244/90.35 Cable, fiber optic, duplex, F-SMA to RP-02, 0.3 m 2260/91.01 Cable, fiber optic, duplex (1000 m), RP-02, 2 m 2260/91.02 Cable, fiber optic, duplex (1000 m) ,RP-02, 20 m 2260/91.03 O/E converter, RS232, RP-02 / DB9 2260/90.06 Protective pouch for NBM-520 2403/90.01 Protective pouch for NBM probe (compatible with all NBM probes except 2402/05) 2402/90.01
