NACHJ

to c ^a

o

d

I—»■

0)

o

I—»■

^{B B}

cd 0) x,

ⁿ'

to tn

«Q

3^-

^S■o

n>

(d

a

^y■a

cd

1N=0.102kgf

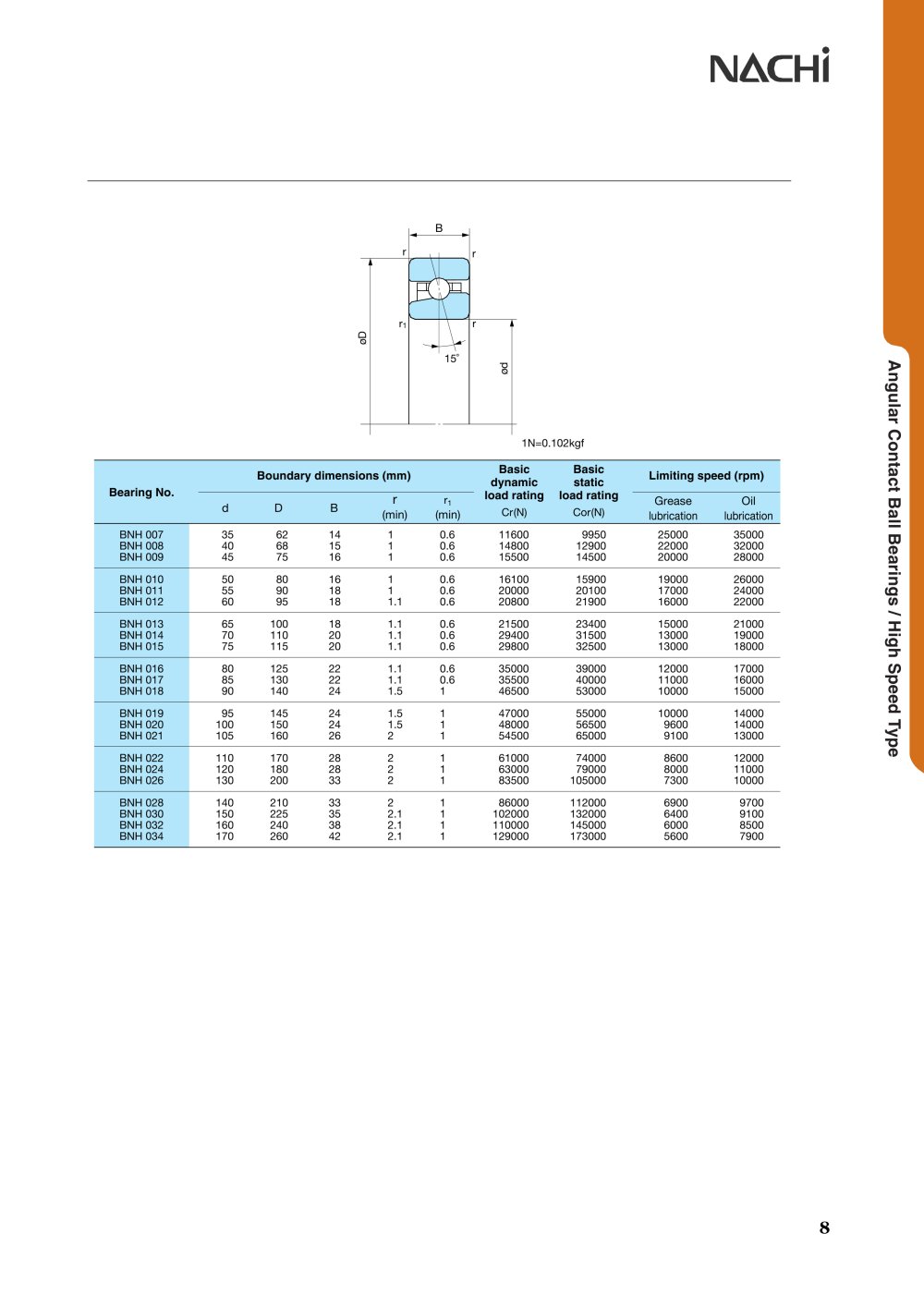

	Bearing No.		Boundary dimensions (mm)				Basic dynamic	Basic static	Limiting speed (rpm)
	Bearing No.	dD		B	r (min)	r1 (min)	load rating Cr(N)	load rating Cor(N)	Grease lubrication	Oil lubrication
	BNH 007 BNH 008 BNH 009	35 40 45	62 68 75	14 15 16	1 1 1	0.6 0.6 0.6	11600 14800 15500	9950 12900 14500	25000 22000 20000	35000 32000 28000
	BNH 010 BNH 011 BNH 012	50 55 60	80 90 95	16 18 18	1 1 1.1	0.6 0.6 0.6	16100 20000 20800	15900 20100 21900	19000 17000 16000	26000 24000 22000
	BNH 013 BNH 014 BNH 015	65 70 75	100 110 115	18 20 20	1.1 1.1 1.1	0.6 0.6 0.6	21500 29400 29800	23400 31500 32500	15000 13000 13000	21000 19000 18000
	BNH 016 BNH 017 BNH 018	80 85 90	125 130 140	22 22 24	1.1 1.1 1.5	0.6 0.6 1	35000 35500 46500	39000 40000 53000	12000 11000 10000	17000 16000 15000
	BNH 019 BNH 020 BNH 021	95 100 105	145 150 160	24 24 26	1.5 1.5 2		47000 48000 54500	55000 56500 65000	10000 9600 9100	14000 14000 13000
	BNH 022 BNH 024 BNH 026	110 120 130	170 180 200	28 28 33	2 2 2		61000 63000 83500	74000 79000 105000	8600 8000 7300	12000 11000 10000
	BNH 028 BNH 030 BNH 032 BNH 034	140 150 160 170	210 225 240 260	33 35 38 42	2 2.1 2.1 2.1		86000 102000 110000 129000	112000 132000 145000 173000	6900 6400 6000 5600	9700 9100 8500 7900
