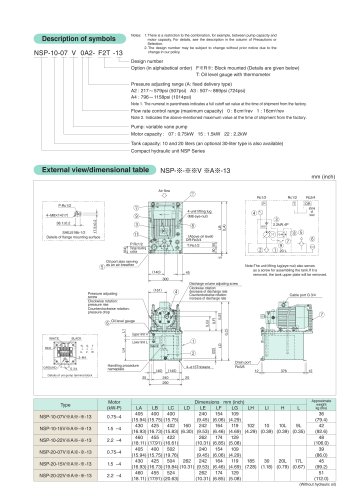

Compact Variable Pump Unit NSP Series - 3 / 6 Pages

Description of symbols

NSP-10-07 V 0A2- F2T -13

Notes: 1. There is a restriction to the combination, for example, between pump capacity and

motor capacity. For details, see the description in the column of Precautions or

Selection.

2. The design number may be subject to change without prior notice due to the

change in our policy.

Design number

Option (in alphabetical order) F^Rï&: Block mounted (Details are given below)

T: Oil level gauge with thermometer

Pressure adjusting range (A: fixed delivery type)

A2 : 217~579psi (507psi) A3 : 507~869psi (724psi)

A4 : 796~1158psi (1014psi)

Note 1. The numeral in parenthesis indicates a full cutoff set value at the time of shipment from the factory.

Flow rate control range (maximum capacity) 0 : 8cm3/rev 1 : 16cm3/rev

Note 2. Indicates the above-mentioned maximum value at the time of shipment from the factory.

Pump: variable vane pump

Motor capacity : 07 : 0.75kW 15:1.5kW 22 : 2.2kW

Tank capacity: 10 and 20 liters (an optional 30-liter type is also available)

Compact hydraulic unit NSP Series

External view/dimensional table NSP-&-&&V

mm (inch)

P:Rc1/2

4~M8X14(17)

38.1+0.2

SAEJ518b-1/2

Deteils of flange mounting surface

Oil port also serving

N as an air breather

Pressure adjusting

screw

Clockwise rotation:

pressure rise

Counterclockwise rotation

pressure drop

Discharge volume adjusting screw

Clockwise rotation:

decrease of discharge rate

Counterclockwise rotation:

increase of discharge rate

Note:The unit lifting lug(eye-nut) also serves

as a screw for assembling the tank.lf it is

removed, the tank upper plate will be removed.

Cable port G 3/4

Type

Motor

(kW-P)

Dimensions mm (inch)

Approximate

weight

kg (lbs)

LA

LB

LC

LD

LE

LF

LG

LH

LI

H

L

NSP-10-07V38A&-3K-13

0.75-4

405

(15.94)

400

(15.75)

400

(15.75)

160

(6.30)

240

(9.45)

154

(6.06)

109

(4.29)

102

(4.29)

10

(0.39)

10L

(0.39)

9L

(0.35)

36

(79.4)

NSP-10-15V*A*-*-13

1.5 -A

430

(16.93)

425

(16.73)

402

(15.83)

242

(9.53)

164

(6.46)

119

(4.69)

42

(92.6)

NSP-10-22V8A8-&-13

2.2 -4

460

(18.11)

455

(17.91)

422

(16.61)

262

(10.31)

174

(6.85)

129

(5.08)

48

(106.0)

NSP-20-07V&A8-SM3

0.75-4

405

(15.94)

400

(15.75)

502

(19.76)

262

(10.31)

240

(9.45)

154

(6.06)

109

(4.29)

185

(7.28)

30

(1.18)

20L

(0.79)

17L

(0.67)

39

(86.0)

NSP-20-15V*A*-*-13

1.5 -A

430

(16.93)

425

(16.73)

504

(19.84)

242

(9.53)

164

(6.46)

119

(4.69)

45

(99.2)

NSP-20-22V*A*-*-13

2.2 -4

460

(18.11)

455

(17.91)

524

(20.63)

262

(10.31)

174

(6.85)

129

(5.08)

51

(112.0)

(Without hydraulic oil)
