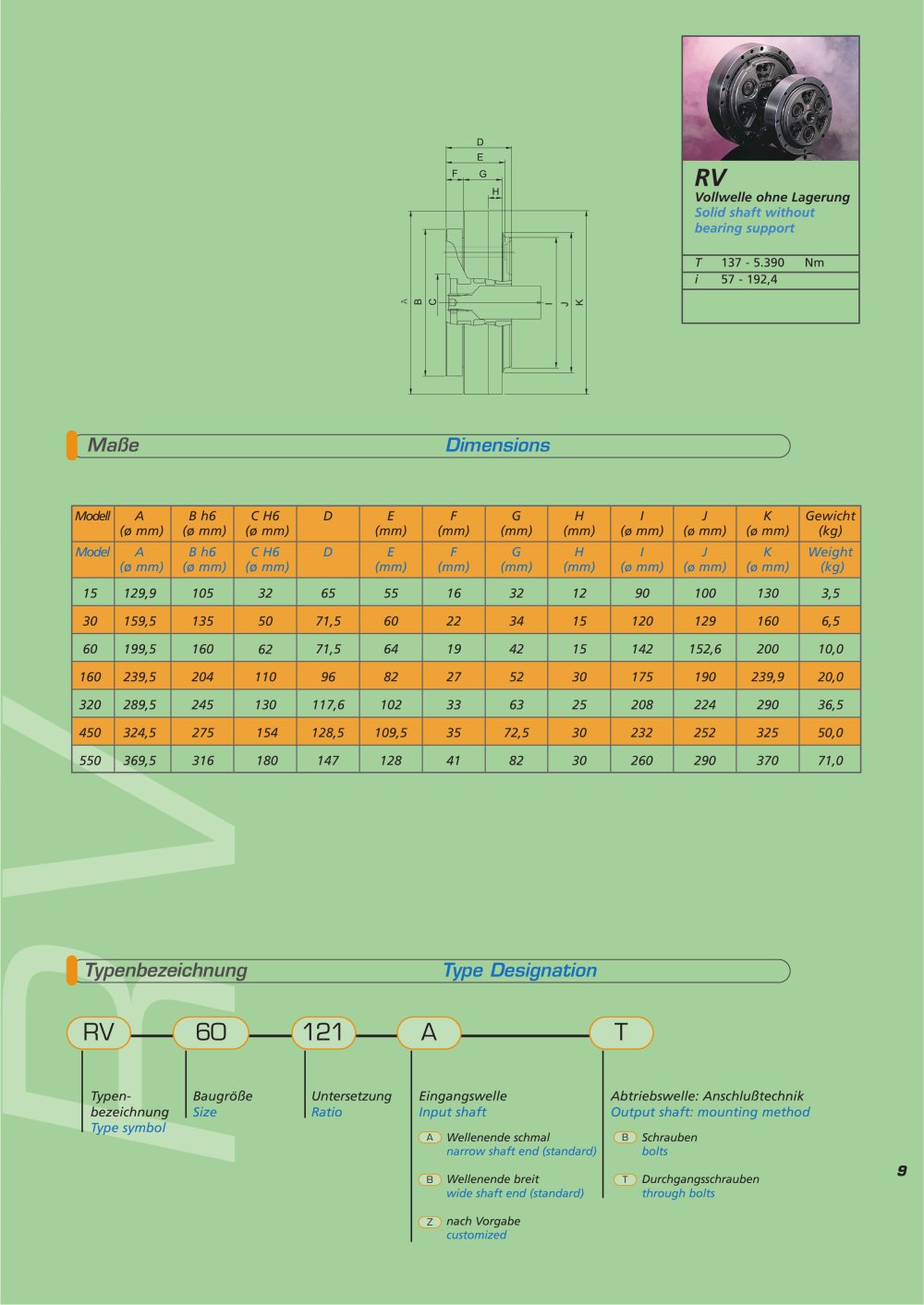

RV
Vollwelle ohne Lagerung Solid shaft without
bearing support
137 - 5.390 Nm
T
57 - 192,4
1
Maße
Dimensions
Modell
A
(0 mm)
B h6
(0 mm)
C H6
(0 mm)
D
E
(mm)
F
(mm)
G
(mm)
H (mm)
I
(0 mm)
J
(0 mm)
K
(0 mm)
Gewicht (kg)
Model
A
(0 mm)
B h6 (0 mm)
C H6 (0 mm)
D
E
(mm)
F
(mm)
G (mm)
H (mm)
I
(0 mm)
J
(0 mm)
K
(0 mm)
Weight (kg)
15
129,9
105
32
65
55
16
32
12
90
100
130
3,5
30
159,5
135
50
71,5
60
22
34
15
120
129
160
6,5
60
199,5
160
62
71,5
64
19
42
15
142
152,6
200
10,0
160
239,5
204
110
96
82
27
52
30
175
190
239,9
20,0
320
289,5
245
130
117,6
102
33
63
25
208
224
290
36,5
450
324,5
275
154
128,5
109,5
35
72,5
30
232
252
325
50,0
550
369,5
316
180
147
128
41
82
30
260
290
370
71,0
I Typenbezeichnung
Type Designation
121
A
T
Baugröße Size
Eingangswelle Input shaft
Abtriebswelle: Anschlußtechnik Output shaft: mounting method
B Schrauben bolts
T Durchgangsschrauben
through bolts
Typen­bezeichnung symbol
Untersetzung Ratio
A Wellenende schmal
narrow shaft end (standard)
JD Wellenende breit
wide shaft end (standard)
9
nach Vorgabe customized
