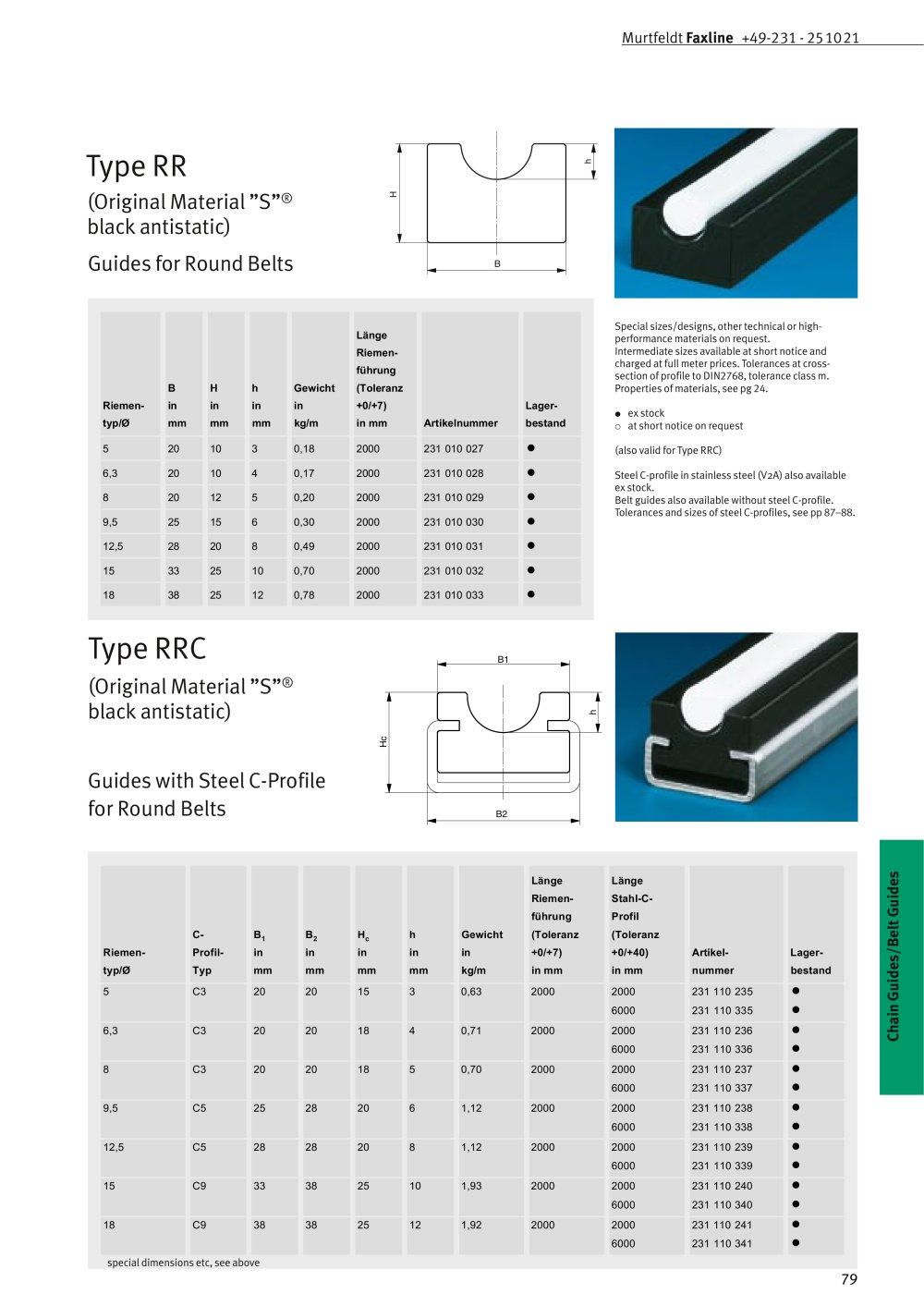

Type RR

(Original Material "S"® black antistatic)

Guides for Round Belts


Riemen-typ/0	B in mm	H in mm	h in mm	Gewicht in kg/m	Länge Riemenführung (Toleranz +0/+7) in mm	Artikelnummer	Lagerbestand	Special sizes/designs, other technical or high-performance materials on request. Intermediate sizes available at short notice and charged at full meter prices. Tolerances at cross-section of profile to DIN2768, tolerance class m. Properties of materials, see pg 24. • ex stock o at short notice on request
5	20	10	3	0,18	2000	231 010 027		(also valid forType RRC)
6,3	20	10	4	0,17	2000	231 010 028		Steel C-profile in stainless steel (V2A) also available
8	20	12	5	0,20	2000	231 010 029		ex stock. Belt guides also available without steel C-profile.
9,5	25	15	6	0,30	2000	231 010 030		Tolerances and sizes of steel C-profiles, see pp 87-88.
12,5	28	20	8	0,49	2000	231 010 031
15	33	25	10	0,70	2000	231 010 032
18	38	25	12	0,78	2000	231 010 033

Type RRC

(Original Material "S"® black antistatic)

-TZ

Guides with Steel C-Profile for Round Belts

special dimensions etc, see above
