PTC Thermistors "POSISTOR®" Motor Starters - Murata - #1

Text version of the page

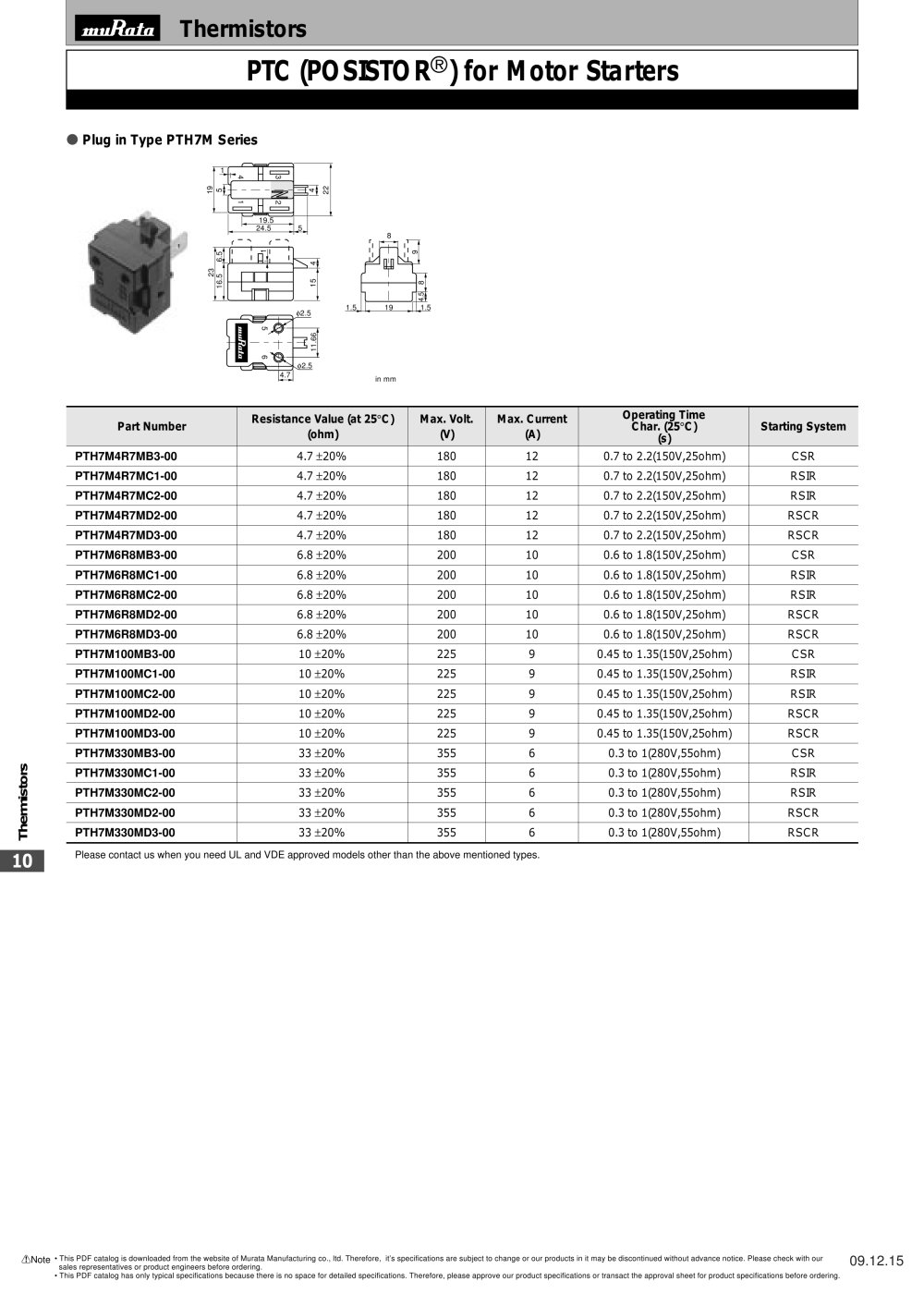

10 Thermistors 3 2 4 1 5 6 15 19 24.5 19.5 5 4 22 15 23 1 4 16.5 6.5 19 8 1.5 1.5 4.5 8 9 4.7 11.66 f2.5 f2.5 in mm Part Number Resistance Value (at 25°C) (ohm) Max. Volt. (V) Max. Current (A) Operating Time Char. (25°C) (s) Starting System PTH7M4R7MB3-00 4.7 ±20% 180 12 0.7 to 2.2(150V,25ohm) CSR PTH7M4R7MC1-00 4.7 ±20% 180 12 0.7 to 2.2(150V,25ohm) RSIR PTH7M4R7MC2-00 4.7 ±20% 180 12 0.7 to 2.2(150V,25ohm) RSIR PTH7M4R7MD2-00 4.7 ±20% 180 12 0.7 to 2.2(150V,25ohm) RSCR PTH7M4R7MD3-00 4.7 ±20% 180 12 0.7 to 2.2(150V,25ohm) RSCR PTH7M6R8MB3-00 6.8 ±20% 200 10 0.6 to 1.8(150V,25ohm) CSR PTH7M6R8MC1-00 6.8 ±20% 200 10 0.6 to 1.8(150V,25ohm) RSIR PTH7M6R8MC2-00 6.8 ±20% 200 10 0.6 to 1.8(150V,25ohm) RSIR PTH7M6R8MD2-00 6.8 ±20% 200 10 0.6 to 1.8(150V,25ohm) RSCR PTH7M6R8MD3-00 6.8 ±20% 200 10 0.6 to 1.8(150V,25ohm) RSCR PTH7M100MB3-00 10 ±20% 225 9 0.45 to 1.35(150V,25ohm) CSR PTH7M100MC1-00 10 ±20% 225 9 0.45 to 1.35(150V,25ohm) RSIR PTH7M100MC2-00 10 ±20% 225 9 0.45 to 1.35(150V,25ohm) RSIR PTH7M100MD2-00 10 ±20% 225 9 0.45 to 1.35(150V,25ohm) RSCR PTH7M100MD3-00 10 ±20% 225 9 0.45 to 1.35(150V,25ohm) RSCR PTH7M330MB3-00 33 ±20% 355 6 0.3 to 1(280V,55ohm) CSR PTH7M330MC1-00 33 ±20% 355 6 0.3 to 1(280V,55ohm) RSIR PTH7M330MC2-00 33 ±20% 355 6 0.3 to 1(280V,55ohm) RSIR PTH7M330MD2-00 33 ±20% 355 6 0.3 to 1(280V,55ohm) RSCR PTH7M330MD3-00 33 ±20% 355 6 0.3 to 1(280V,55ohm) RSCR Please contact us when you need UL and VDE approved models other than the above mentioned types. • This PDF catalog is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering. • This PDF catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering. !Note
