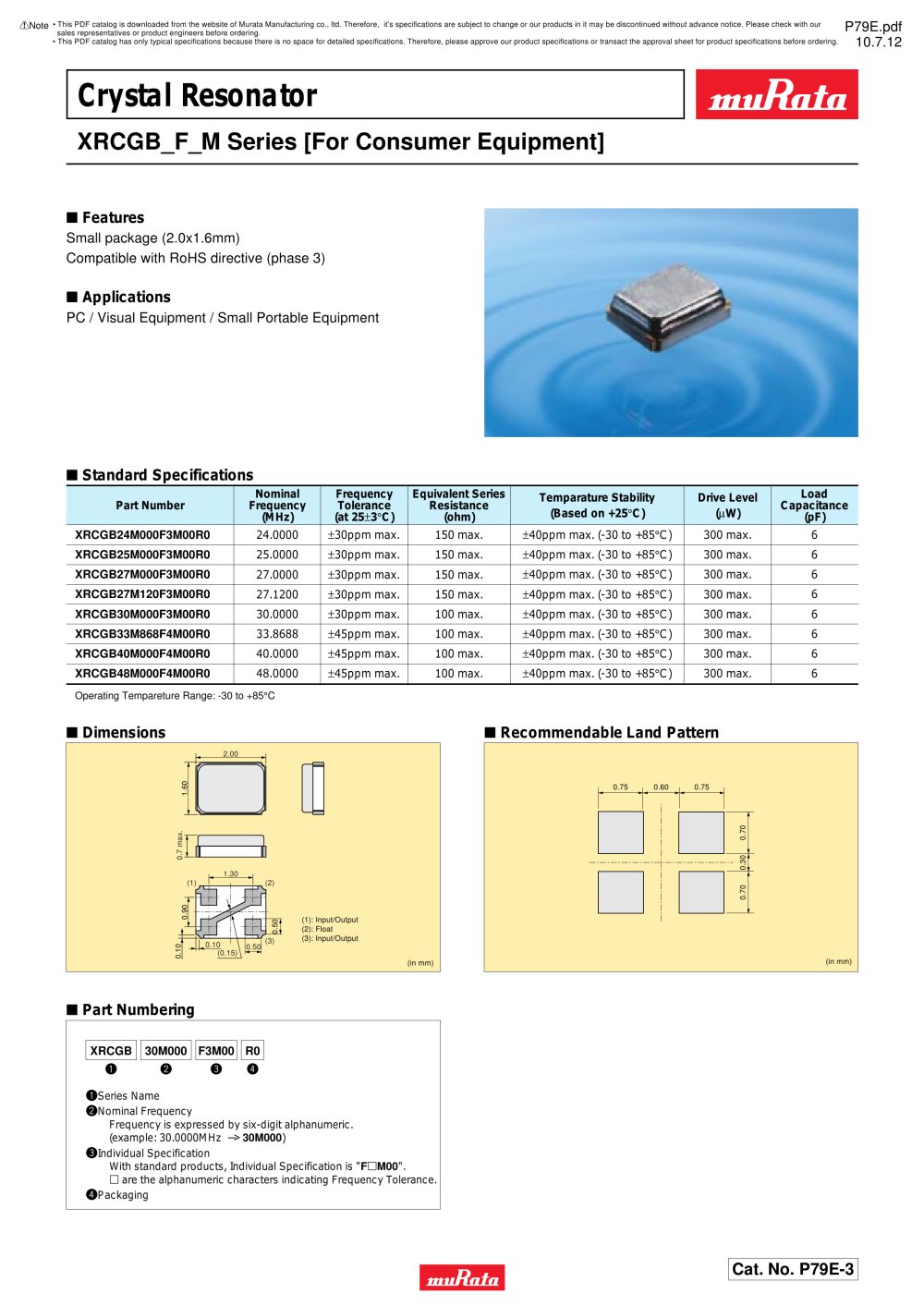

XRCGB_F_M Series [For Consumer Equipment] n Features Small package (2.0x1.6mm) Compatible with RoHS directive (phase 3) n Applications PC / Visual Equipment / Small Portable Equipment n Standard Specifications n Dimensions n Part Numbering n Recommendable Land Pattern w e r XRCGB 30M000 F3M00 R0 q Cat. No. P79E- qSeries Name wNominal Frequency Frequency is expressed by six-digit alphanumeric. (example: 30.0000MHz —> 30M000) eIndividual Specification With standard products, Individual Specification is "FpM00". p are the alphanumeric characters indicating Frequency Tolerance. rPackaging Part Number Nominal Frequency (MHz) Frequency Tolerance (at 25±3°C) Equivalent Series Resistance (ohm) Temparature Stability (Based on +25°C) Drive Level (ìW) Load Capacitance (pF) 24.0000 25.0000 27.0000 27.1200 30.0000 33.8688 40.0000 48.0000 ±30ppm max. ±30ppm max. ±30ppm max. ±30ppm max. ±30ppm max. ±45ppm max. ±45ppm max. ±45ppm max. 150 max. 150 max. 150 max. 150 max. 100 max. 100 max. 100 max. 100 max. ±40ppm max. (-30 to +85°C) ±40ppm max. (-30 to +85°C) ±40ppm max. (-30 to +85°C) ±40ppm max. (-30 to +85°C) ±40ppm max. (-30 to +85°C) ±40ppm max. (-30 to +85°C) ±40ppm max. (-30 to +85°C) ±40ppm max. (-30 to +85°C) 300 max. 300 max. 300 max. 300 max. 300 max. 300 max. 300 max. 300 max. 6 6 6 6 6 6 6 6 XRCGB24M000F3M00R0 XRCGB25M000F3M00R0 XRCGB27M000F3M00R0 XRCGB27M120F3M00R0 XRCGB30M000F3M00R0 XRCGB33M868F4M00R0 XRCGB40M000F4M00R0 XRCGB48M000F4M00R0 Operating Tempareture Range: -30 to +85°C (in mm) 2.00 1.30 0.10 0.50 0.90 1.60 0.50 0.10 0.7 max. (1) (2) (3) (0.15) (1): Input/Output (2): Float (3): Input/Output 0.75 0.60 0.75 0.70 0.30 0.70
