SiA20D Robotot
www.motoman.com
TECHNICAL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
DS-404-A ©2009 MOTOMAN INC. NOVEMBER 2009
MOTOMAN IS A REGISTERED TRADEMARK
windows is a registered trademark of microsoft
ALL other MARKS ARE THE TRADEMARKS AND
REGISTERED TRADEMARKS OF MOTOMAN INC.
Motomanotoman CORPORATE HEADQUARTERS
805 Libertiberty Lane, WEST CARROLLTON, OHIO 45449
Tel: 937.847.6200 • FAX: 937.847.6277
Structure Articulated
Mounting Floor, Wall or Ceiling
Controlled Axes 7
Payload 20 kg (44.1 lb)
Vertical Reach 1,498 mm (59")
Horizontal Reach 910 mm (35.8")
Repeatability ±0.1 mm (±0.004")
S-Axis (Turning/Sweep) ±180°
Maximum L-Axis (Lower Arm) ±110°
Motion E-Axis (Elbow) ±170°
Range U-Axis (Upper Arm) ±180°
R-Axis ±180°
B-Axis (Bend/Pitch/Yaw) ±110°
T-Axis (Wrist Twist) ±180°
S-Axis 180°/s
L-Axis 180°/s
Maximum E-Axis 170°/s
Speed U-Axis 170°/s
R-Axis 800°/s
B-Axis 800°/s
T-Axis 400°/s
Approximate Mass 180 kg (397 lb)
Power Consumption 2.2 kVA
Allowable R-Axis 58.8 N • m
Moment B-Axis 58.8 N • m
T-Axis 29.4 N • m
Allowable R-Axis 4 kg • m2
Moment of B-Axis 4 kg • m2
Inertia T-Axis 8 kg • m2

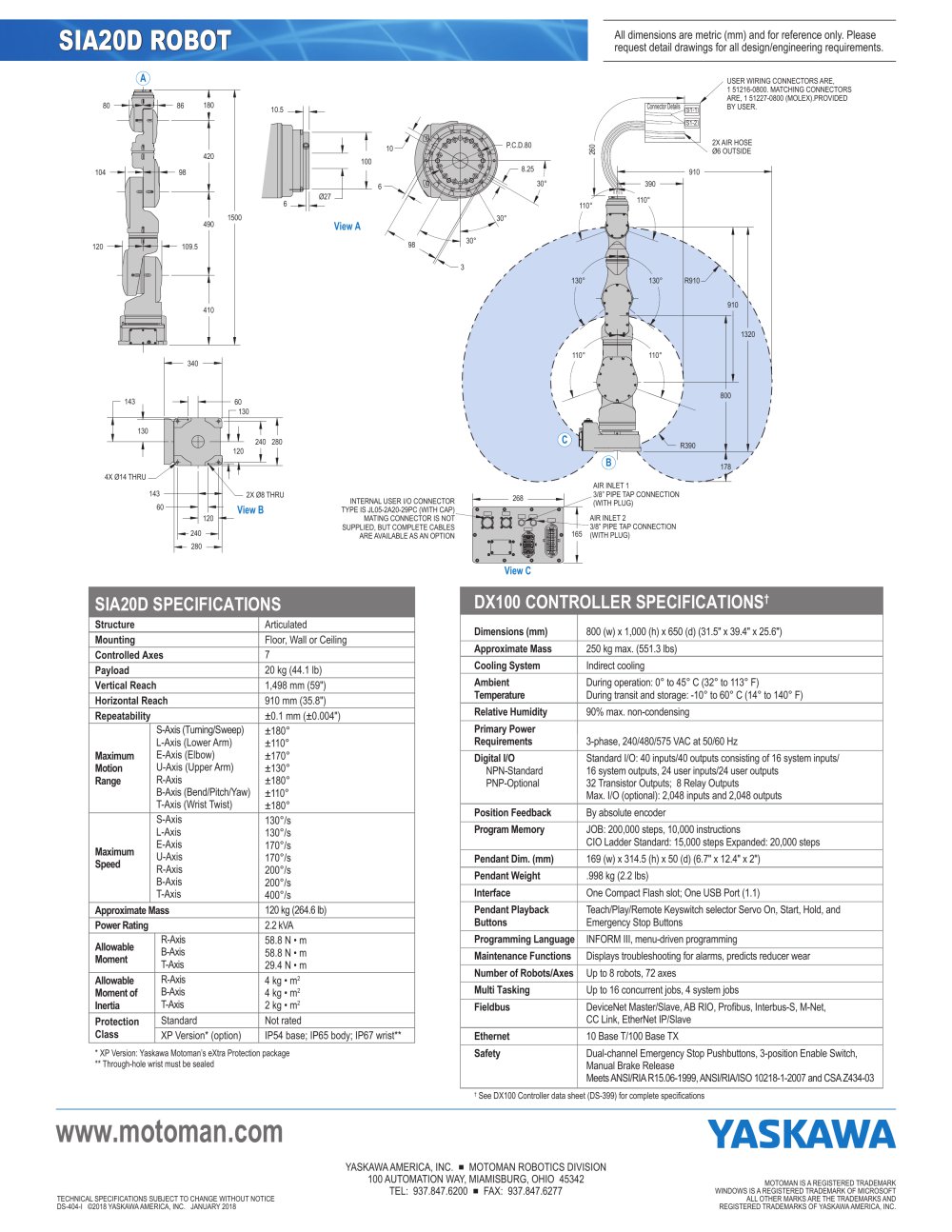

SIA20D SPECIFICATiONS
All dimensions are metric (mm) and for reference only. Please
request detail drawings for all design/engineering requirements.
BView AView BView C1500180420490410120109.5104988086M4M430°30°9810.530°108.25636Ř27P.C.D.80100Connector DetailsS1-2S1-1110°110°110°110°2601320800910130°130°390R910178R390910USER WIRING CONNECTORS ARE,1 51216-0800. MATCHING CONNECTORS ARE, 1 51227-0800 (MOLEX).PROVIDED BY USER.2X AIR HOSEŘ6 OUTSIDEmolexmolexmolexAB2BCAir2Air13BC4BC18-120-291BC268165INTERNAL USER I/O CONNECTOR TYPE IS JL05-2A20-29PC (WITH CAP)MATING CONNECTOR IS NOT SUPPLIED, BUT COMPLETE CABLES ARE AVAILABLE AS AN OPTIONAIR INLET 13/8” PIPE TAP CONNECTION(WITH PLUG)AIR INLET 23/8” PIPE TAP CONNECTION(WITH PLUG)2802801203401206060143240130130143502404X Ř14 THRU2X Ř8 THRUAC
Dimensions (mm) 1,200 (w) x 1,000 (h) x 650 (d) 47.2" x 39.4" x 25.6")
Approximate Mass 250 kg max. (551.3 lbs)
Cooling System Indirect cooling
Ambient During operation: 0° to 45° C (32° to 113° F)
Temperature During transit and storage: -10° to 60° C (14° to 140° F)
Relative Humidity 90% max. non-condensing
Primary Power
Requirements 3-phase, 240/480/575 VAC at 50/60 Hz
Digital I/O Standard I/O: 40 inputs/40 outputs consisting of 16 system inputs/
NPN-Standard 16 system outputs, 24 user inputs/24 user outputs
PNP-Optional 32 Transistor Outputs; 8 Relay Outputs
Max. I/O (optional): 2,048 inputs and 2,048 outputs
Position Feedback By absolute encoder
Program Memory JOB: 200,000 steps, 10,000 instructions
CIO Ladder Standard: 15,000 steps Expanded: 20,000 steps
Pendant Dim. (mm) 169 (w) x 314.5 (h) x 50 (d) (6.7" x 12.4" x 2")
Pendant Weight .998 kg (2.2 lbs)
Interface One Compact Flash slot; One USB Port (1.1)
Pendant Playback Teach/Play/Remote Keyswitch selector Servo On, Start, Hold, and
Buttons Emergency Stop Buttons
Programming Language INFORM III, menu-driven programming
Maintenance Functions Displays troubleshooting for alarms, predicts reducer wear
Number of Robots/Axes Up to 8 robots, 72 axes
Multi Tasking Up to 16 concurrent jobs, 4 system jobs
Fieldbus DeviceNet Master/Slave, AB RIO, Profibus, Interbus-S, M-Net,
CC Link, EtherNet IP/Slave
Ethernet 10 Base T/100 Base TX
Safety Dual-channel Emergency Stop Pushbuttons, 3-position Enable Switch,
Manual Brake Release
Meets ANSI/RIA R15.06-1999, ANSI/RIA/ISO 10218-1-2007 and CSA Z434-03
**See DX100 Controller data sheet (DS-399) for complete specifications
DX100 CONTROLLER SPECIFICATiONS**
|
|
