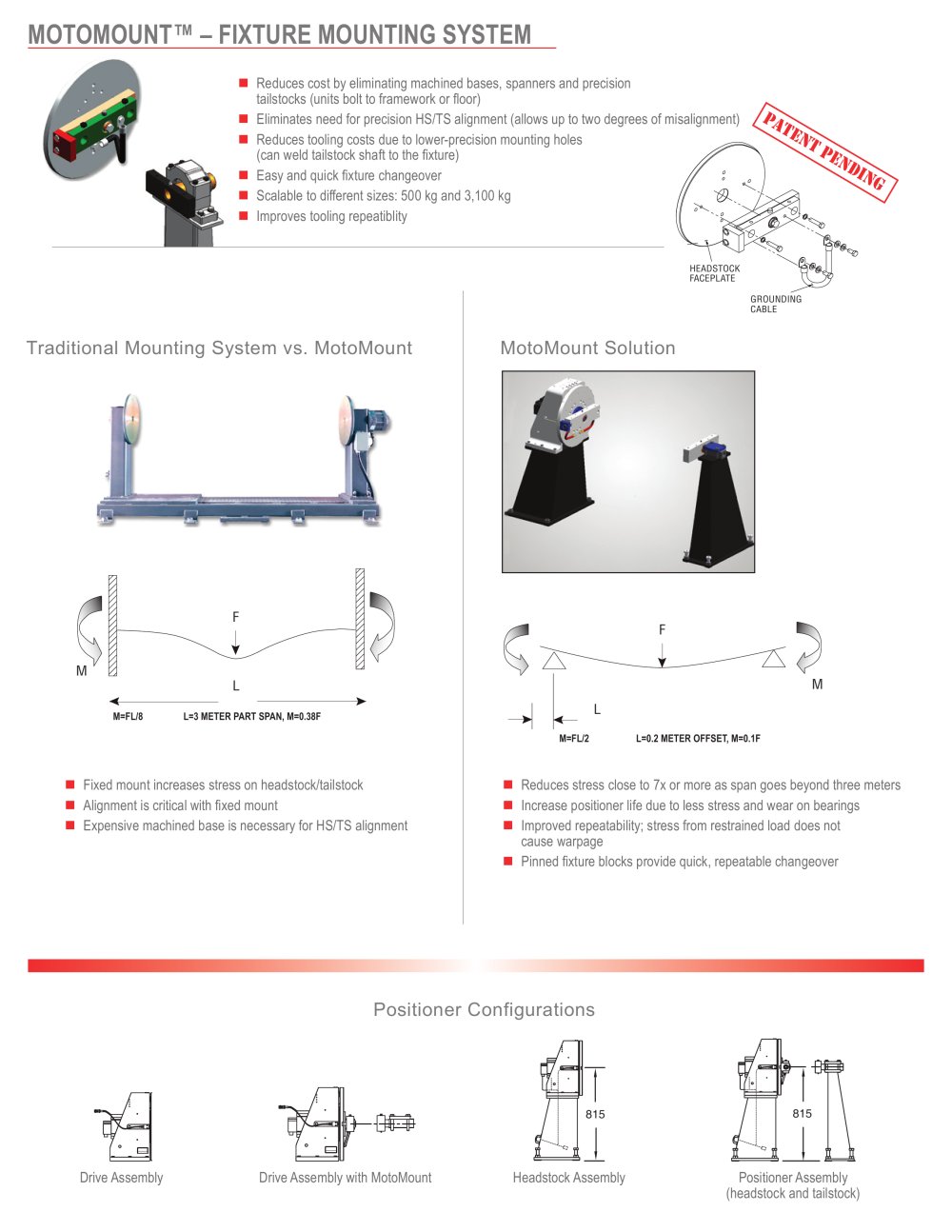

| MOTOMOUNT™ - FIXTURE MOUNTING SYSTEM | |||||||||||||||||||||||||||||||||||
| ■ Reduces cost by eliminating machined bases, spanners and precision tailstocks (units bolt to framework or floor) ■ Eliminates need for precision HS/TS alignment (allows up to two degrees of misalignment) ■ Reduces tooling costs due to lower-precision mounting holes (can weld tailstock shaft to the fixture) ■ Easy and quick fixture changeover ■ Scalable to different sizes: 500 kg and 3,100 kg ■ Improves tooling repeatiblity | |||||||||||||||||||||||||||||||||||
| HEADSTOCK FACEPLATE | |||||||||||||||||||||||||||||||||||
| GROUNDING CABLE | |||||||||||||||||||||||||||||||||||
| Traditional Mounting System vs. MotoMount | MotoMount Solution | ||||||||||||||||||||||||||||||||||
| M | |||||||||||||||||||||||||||||||||||
| L | |||||||||||||||||||||||||||||||||||
| L | |||||||||||||||||||||||||||||||||||
| M=FL/8 | L=3 METER PART SPAN, M=0.38F | ||||||||||||||||||||||||||||||||||
| M=FL/2 | L=0.2 METER OFFSET, M=0.1F | ||||||||||||||||||||||||||||||||||
| ■ Fixed mount increases stress on headstock/tailstock ■ Alignment is critical with fixed mount ■ Expensive machined base is necessary for HS/TS alignment | |||||||||||||||||||||||||||||||||||
| ■ Reduces stress close to 7x or more as span goes beyond three meters ■ Increase positioner life due to less stress and wear on bearings ■ Improved repeatability; stress from restrained load does not cause warpage ■ Pinned fixture blocks provide quick, repeatable changeover | |||||||||||||||||||||||||||||||||||
| Positioner Configurations | |||||||||||||||||||||||||||||||||||
| Drive Assembly Drive Assembly with MotoMount Headstock Assembly Positioner Assembly (headstock and tailstock) | |||||||||||||||||||||||||||||||||||
