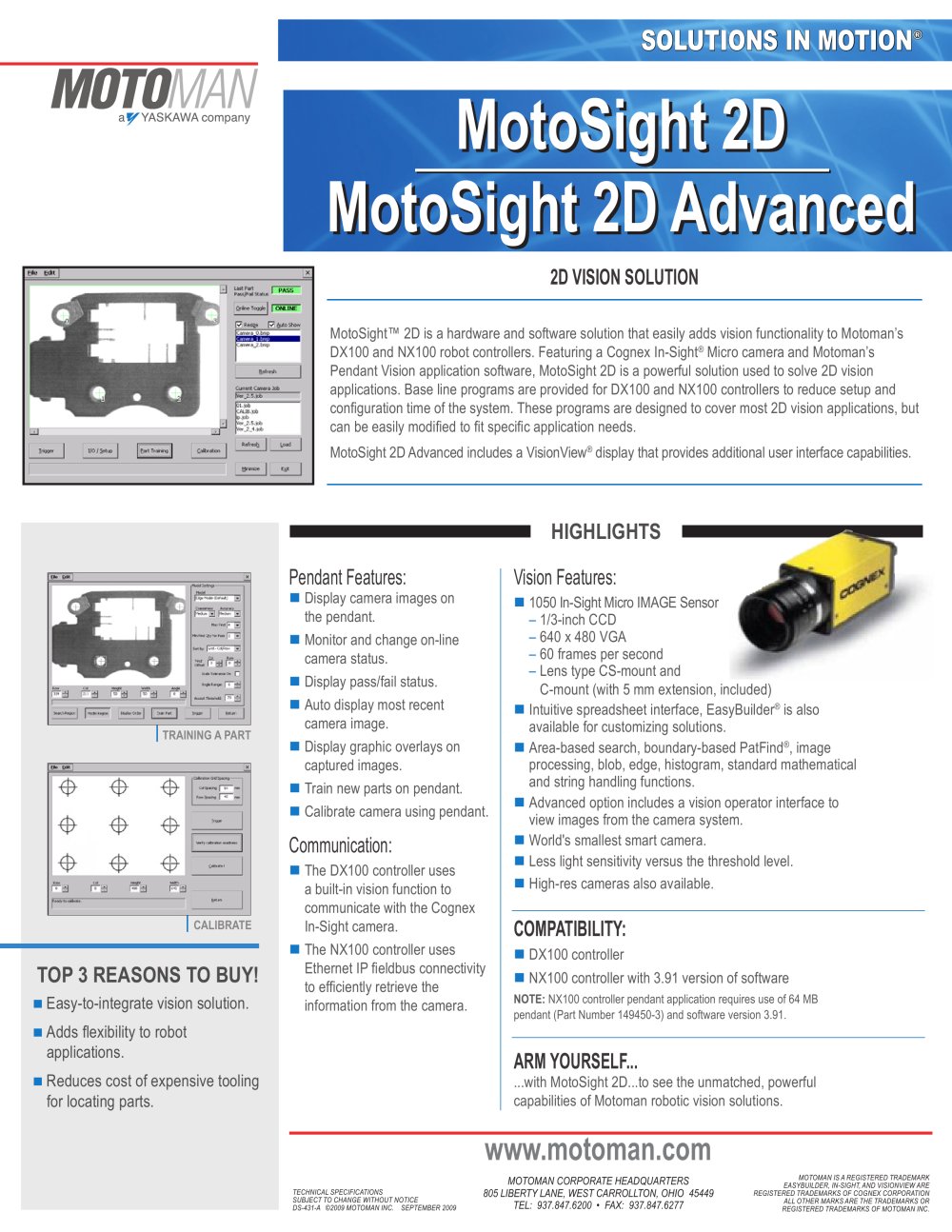

Compatibility: n DX100 controller n NX100 controller with 3.91 version of software NOTE: NX100 controller pendant application requires use of 64 MB pendant (Part Number 149450-3) and software version 3.91. ARM YOURSELF... ...with MotoSight 2D...to see the unmatched, powerful capabilities of Motoman robotic vision solutions. 2D vision solution MotoSight™ 2D is a hardware and software solution that easily adds vision functionality to Motoman’s DX100 and NX100 robot controllers. Featuring a Cognex In-Sight® Micro camera and Motoman’s Pendant Vision application software, MotoSight 2D is a powerful solution used to solve 2D vision applications. Base line programs are provided for DX100 and NX100 controllers to reduce setup and configuration time of the system. These programs are designed to cover most 2D vision applications, but can be easily modified to fit specific application needs. MotoSight 2D Advanced includes a VisionView® display that provides additional user interface capabilities. Pendant Features: n Display camera images on the pendant. n Monitor and change on-line camera status. n Display pass/fail status. n Auto display most recent camera image. n Display graphic overlays on captured images. n Train new parts on pendant. n Calibrate camera using pendant. Communication: n The DX100 controller uses a built-in vision function to communicate with the Cognex In-Sight camera. n The NX100 controller uses Ethernet IP fieldbus connectivity to efficiently retrieve the information from the camera. TECHNICAL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE DS-431-A ©2009 MOTOMAN INC. September 2009 MOTOMAN IS A REGISTERED TRADEMARK eASYbUILDER, In-Sight, AND vISIONvIEW ARE registered trademarkS of cOGNEX cORPORATION ALL OTHER MARKS ARE THE TRADEMARKS OR REGISTERED TRADEMARKS OF MOTOMAN INC. TOP 3 REASONS TO BUY! n Easy-to-integrate vision solution. n Adds flexibility to robot applications. n Reduces cost of expensive tooling for locating parts. HIGHLIGHTS SOLUTIONS IN MOTION® Motoman CORPORATE HEADQUARTERS 805 Liberty Lane, WEST CARROLLTON, OHIO 45449 Tel: 937.847.6200 • FAX: 937.847.6277 www.motoman.com Training a part Calibrate MotoSight 2D MotoSight 2D Advanced Vision Features: n 1050 In-Sight Micro IMAGE Sensor – 1/3-inch CCD – 640 x 480 VGA – 60 frames per second – Lens type CS-mount and C-mount (with 5 mm extension, included) n Intuitive spreadsheet interface, EasyBuilder® is also available for customizing solutions. n Area-based search, boundary-based PatFind®, image processing, blob, edge, histogram, standard mathematical and string handling functions. n Advanced option includes a vision operator interface to view images from the camera system. n World's smallest smart camera. n Less light sensitivity versus the threshold level. n High-res cameras also available.
